MyMix Mix Pack 4
4 myMix Unit Package with 1x TPE-S80 PoE Switch

OUR PART #:  MIXPACK4

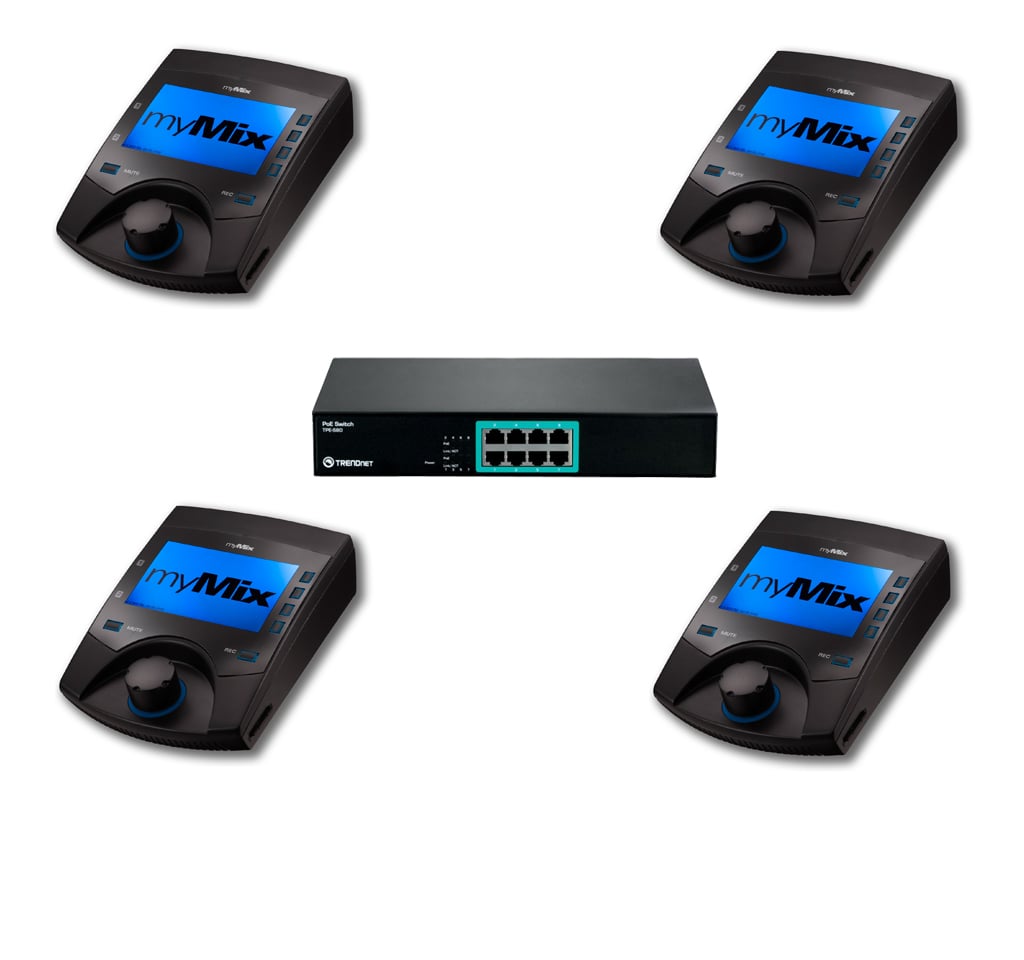

The myMix Mix Pack 4 starter package contains everything needed* to provide individual stereo mixes and multi-track recording for four (or more)  musicians.
Learn More
myMix
myMix - Top View
myMix - Left Angle View

Click a thumbnail to see more images. (7 total)

Our Price: $2,690.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

MyMix Mix Pack 4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The myMix Mix Pack 4 starter package contains everything needed* to provide individual stereo mixes and multi-track recording for four (or more)  musicians. Four myMix units provide eight inputs to connect and label microphone (phantom power available) and line level sources.  All devices get connected with a CAT5* cable to the TPE-S80 POE switch. If you want to share the input signals with a console you can split the signal from DI-boxes for line level and use y-cable (or a mic split box) for microphones.  If you have more than four people on stage, consider using a 4-ch headphone amp and share a mix (e.g. for the vocalists). The TPE-S80 provides power for 8 myMix units, so you can add 4 more myMix or 3 myMix and an IEX16 input expander to have more individual mixes and more audio channels available. Should you ever outgrow this system all you need to get is a larger switch with more ports.
*CAT5 and audio input cables are not included in the package.

myMix Mix Pack 4 Features:

  • Includes 4 myMix units, 1 TPE-S80 switch
  • 8 audio inputs (4 x 2)
  • 4x Multi-Track Recording and Playback
  • Includes mic stand adapters and power supplies
  • Easy to expand by adding more myMix

The two applications examples show that with some accessories 4 myMix can help an 7 piece band, and adding one more myMix a 8 piece band gets started with 5 myMix.

About the myMix

Personal mixer station for myMix systems. Select up to 16 unique channels to mix from all available network channels. Adjust channel volume, tone, effect send (from a choice of reverbs or an adjustable delay), and pan without affecting any other station on the network. Two mic/line inputs with input gain adjustment, input LEDs with signal and overload indicators (overload indicator also flashes red on channel name), switchable phantom power. Two line-level balanced 1/4" TRS outputs and one 1/8" (3.5mm) headphone output. Store up to 20 named profiles on each station. 4-band fully parametric stereo output EQ with selectable high and low shelving filters. Record up to 18 tracks (16 individual channels + your stereo mix) of multi-track audio to SD card, 24 bit, 48kHz time-stamped uncompressed .wav files.

myMix Features:

  • Individual stereo mixes for each musician with up to 16 channels of audio
  • Individual channel selection from network
  • Send Mix to Network
  • Up to 16 +2 tracks of recording and playback (with optional SDHC card)
  • Intuitive interface with full color LCD display
  • Networked via standard or PoE Fast Ethernet switches
  • Dual mic/line inputs with 48v phantom power
  • Separate headphone and stereo line outputs
  • Mounts easily to microphone stands with included adapter
  • Covenient Remote Control with optional myMix CONTROL Software

myMix Specifications:

Inputs

  • Impedance (Microphone / Line): 2 K Ohms / 20 K Ohms
  • Input Gain (Microphone): variable from +4 dB to +60 dB
  • Input Gain (Line):  variable from -16dB to +40 dB
  • Maximum Input Level (Mic/Line):  +14dBu / +34 dBu
  • Frequency Response: 20 Hz to 20 kHz (+0dB, -1dB)

Outputs

  • Impedance (Line / Headphone Outputs):  75 Ohm balanced / to drive > 16 Ohm
  • Max Output Level (Line): +21 dBu
  • Signal to Noise Ratio:  > 104 dB
  • THD +N (Microphone Input to Line Out):  <0,022%
  • Cross talk (L to R):  < -80 dB
  • Mute:  > 100 dB

System Network

  • Network Type: Fast Ethernet 100 Mbps
  • Network Cabling:  Cat 5
  • Network Latency:  <1 ms
  • AD/DA Conversion:  24-bit

Recording

  • Recording Media:  SD or SDHC card
  • Recording Format:  wav file, 24-bit, 48kHz sampling rate

Connectors

  • Microphone Input:  Balanced XLR (1 gnd, 2 pos, 3 neg)
  • Line Input:  Balanced ¼” jack (tip pos, ring neg, sleeve gnd)
  • Line Output:  Balanced ¼” jack (tip pos, ring neg, sleeve gnd)
  • Headphone Output:  3.5mm stereo jack
  • System Network:  RJ45

Weight and Dimensions

  • Net Size (excl. mic stand adaptor): 5.3" W x 6.7" H x 2.4" D (134 x 171 x 60 mm)
  • Net Weight (excl. mic stand adaptor): 1.1 lbs (0.5 kg)
  • Package Dimensions: 6.8" W x 11" H x 3.2" D (172 x 280 x 80 mm)
  • Package Weight:  2 lbs (0.9 kg)
  • Included Accessories:
    • myMix PSU (24V, 12W)
    • myMix microphone stand adaptor
