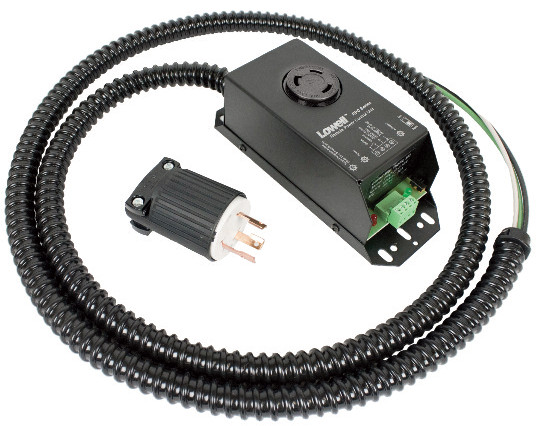

Lowell RPC-30S-HW
30A Hardwired Remote Power Control


Our Price: $191.21
List Price: $271.08
You save 29%!
Write the first review.
Lowell RPC-30S-HW
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Lowell’s Remote Power Control with surge protection can be utilized with a variety of switches and control systems or devices that provide either a dry contact closure or voltage output (5V-24V, AC or DC, 3mA) to provide an intrinsically safe low voltage method of controlling AC power to equipment at a remote location. The ability to safely control AC power distribution without directly accessing equipment minimizes the potential for unauthorized activation. Typical applications include commercial, entertainment, government, education and house-of-worship venues where remote power control is often required.

RPCs are typically installed in close proximity to equipment to be controlled. Low-voltage cable is run from the RPC terminal strip to a control switch (such as a switch from Lowell’s RPS Series) or other control method. Systems can be configured with multiple RPCs activated by a single switch or trigger voltage source. Systems can also be configured with multiple switches or trigger voltage sources controlling a single RPC. (See connection diagrams on next page.) RPCs also serve as a key component in Lowell's low voltage sequential control systems (SCS Series).

Lowell RPC-30S-HW Features:

  • Compact steel chassis with black powder epoxy finish
  • Power Rating: 30A 125VAC
  • Receptacle: (1) NEMA L5-30R, (1) mating NEMA L5-30P plug included
  • Terminates with 6-ft. non-metallic flexible 1/2” conduit (can be trimmed in the field if needed)
  • ETL Listed (UL 60065) in U.S.A. and Canada
  • Made in the U.S.A.

Lowell RPC-30S-HW Specifications:

  • Maximum Surge Current: 20,000A
  • VPR (UL 1449-3): 400V
  • Response Time: 1 nanosecond
  • EMI/RFI Noise Reduction: 20dB @ 100kHz
  • Protection Mode: Line to Neutral
  • Ground Contamination: None
