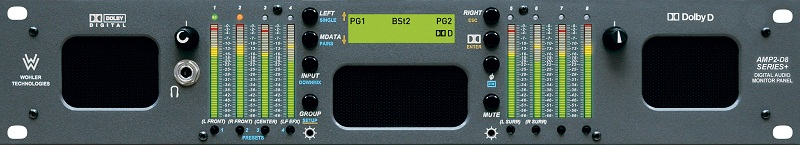

Wohler AMP2-D8-MDA
2U Rackmount 8-Channel Audio Monitor with 3G/HD/SD-SDI, Dolby AC-3 and AES Inputs


Our Price: $5,393.95
List Price: $5,495.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Wohler AMP2-D8-MDA monitor is the world's first 1RU in-rack audio monitor capable of outputting and/or displaying encoded, multi-channel (up to 8 channels) of audio from Dolby D streams decoded from AES and 3G/HD/SD-SDI multi-channel.  The ability to switch seamlessly between encoded or discrete PCM sources, in addition to providing full, simultaneous demuxed output of the multi-channel source offers a significant new operational capability.

These units are ideal for use in VTR bays, mobile production vehicles, teleconferencing installations, multimedia systems, satellite links, cable TV facilities, and on-air radio studios.  Extended HF response reveals potential problems with audio whine or hiss, and electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of reversed polarity audio feeds.  The sleek design provides optimally focused sound for operators in an ultra near field environment (1 to 3 feet) with performance comparable to that of many separate monitor pairs without installation hassles and awkward speaker placements.  This enables a higher SPL for the operator while reducing overall ambient sound and adjacent bay crosstalk.

Wohler AMP2-D8-MDA Features:

  • Supports decoding and playback of Dolby bitstreams
  • Select and assign a channel or channel  air to left, right or both speakers, or select a predefined downmix
  • 4 presets let you change the entire system configuration with the press of a single button
  • Thorough magnetic shielding allows placement next to sensitive equipment and video monitors
  • Backlit LED screen displays phase, signal type, Dolby program, and more
  • Eight 26-segment tri-color LED bar graphs display simultaneous VU and PPM
  • Sum any combination of up to 8 channels to the left and/or right speakers and selected analog outputs
  • Premium quality drivers and power amplifiers deliver excellent frequency response and low distortion
  • Power 104dB SPL at 2 feet (0.6m)

Wohler AMP2-D8-MDA Specifications:

  • Signal Inputs Accepted:  Analog, AES, SD-SDI, HD-SDI, 3G-SDI, Dolby AC-3
  • Monitoring Outputs Available:  Speakers, Level Meters, Phase Metering, Headphones
  • Signal Inputs:  8 Balanced Analog Inputs on DB-25; 4 Unbalanced AES Input Pairs on BNC; 4 Balanced AES Input Pairs on DB-25; 2 3G/HD/SD-SDI Inputs on BNC; 2 Dolby AC-3 Inputs on BNC
  • Signal Outputs:  2 Balanced Analog Outputs Summed from Selected Source on XLR; 8 Balanced Analog Outputs from Selected Source on DB-25; 4 Balanced AES Loop-through Output Pairs on DB-25; 4 Balanced AES Outputs from SDI on DB-25; 1 3G/HD/SD-SDI Reclocked Output on BNC; 4 Dolby AC-3 Decoded Outputs on BNC; 1 Unbalance
  • Data Ports:  3 RS-232 Connectors for programming, setup and diagnostics; OPTIONAL: 1 DB-9 Connector for remote selection of input sources
  • Other Features:  Comprehensive downmix capability; Phase correlation indication; Software is field upgradable, Storage for ten preset monitoring settings for easy recall
  • AES/EBU Input Termination:  110 Ohms balanced; 75 Ohms unbalanced (DIP Selectable on rear panel)
  • AES/EBU Input Sampling Rate:  32 Hz - 48 kHz, auto-detecting
  • SDI Input Termination:  75 Ohms unbalanced
  • Aural Sound Outputs:  Wohler Speaker System; Headphone, Mutes Speakers
  • Acoustic Distortion:  6% or less at worst case frequencies above 120 Hz including cabinet resonance, typically < 1.5%
  • Electrical Distortion:  < 0.15% at any level below limit threshold
  • Frequency Response (1/6 octave):  80 Hz - 18 kHz (+/-5 dB); (-10 dB @ 55 Hz, 21 kHz)
  • Peak Acoustic Output @ 2 feet:  104 dB SPL
  • Hum and Noise:  Better than -68 dB below full output'
  • Power Output:  High Frequency: 10W (14W Peak) RMS (each channel); Low Frequency: 25W RMS (35W Peak)
  • Level Meters:  8 x 53 Segments (Vertical)
  • Level Meter Threshold:  0, +4, +6, +8 dBv (Analog); -20, -18 or -9 dBFS (Digital)
  • Level Meter Scale:  0 to -66 dB
  • Level Meter Dynamics:  Simultaneous VU & PPM
  • Level Meter Resolution:  1 dB
  • Display Characteristics:  LCD
  • Display Modes:  Data Only
  • Rack Height:  2RU
  • Weight:  18.0 lbs (8.2 kg)
  • Shipping Weight:  22.0 lbs (10.0 kg)
  • Dimensions:  3.5" x 19" x 14" (89mm x 483mm x 356mm)
  • Power Consumption:  72W Max
  • Supplied Accessories:  Power Cord
