Liberty AV Solutions E2-HDSEM-M-01

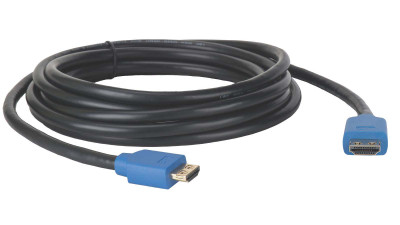

3 ft (1m) Commercial Grade HDMI Cable with Ethernet

OUR PART #:  E2-HDSEM-M-01

Our Price: $13.27
List Price: $14.74
You save 10%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Liberty AV Solutions E2-HDSEM-M-01
Qty:
Similar Products

Liberty AV Solutions' E2-HDSEM-M High Speed HDMI® with Ethernet cable assemblies are a high-quality heavily shielded digital transport cable mated with approved patented high-retention HDMI connectors that are designed for the custom installation market. The cable is third-party ATC-verified to the highest HDMI cable standard, High Speed HDMI® with Ethernet.

The E2 series is constructed with 28 AWG tinned annealed copper conductors on the TMDS pairs. The overall cable is dual shielded with a full coverage foil shield and an 85% coverage braided shield. Unlike many cables on the market, the connectors feature full shielding over the solder joints instead of drain wire under a pre-mold. All contact surfaces are gold-plated for conductivity, durability, and resistance to tarnish. The high-retention connectors increase the standard HDMI holding force by a factor of 3, up to 12 lbs.

These general purpose HDMI cables feature UL ratings on the bulk cable for CL2 and Canadian FT4. This is permissible for concealed installations per the requirements of the National Electric Code®. The product is compliant to the requirements of the EU RoHS-2 2011/65/EU standard.

Liberty AV E2-HDSEM-M-01 Features:

  • High retention gold plated HDMI "A" plugs
  • Fully shielded from connector shroud to shroud
  • All lengths rated for 10.2 Gbps
  • 4K video, Audio Return, Ethernet, CEC
  • NEC CL2, CEC CMG FT4, RoHS/REACH Compliant
  • Applications:
    • Commercial and Residential HDMI connectivity
    • 3D, 4K, Deep Color applications and installations
    • Audio/Visual equipment hookup and much more

Liberty AV E2-HDSEM-M-01 Specifications:

  • HDMI Connector: Male HDMI Type A
  • HDMI Supported Video, Audio and Ethernet:
    • HDMI Maximum Video Compatibility: 4Kx2K@ 60Hz up to 2m, 4Kx2K @ 30Hz to 3m
    • Video Compliance: HDMI, HDCP, and CEC (Consumer Electronics Control)
    • Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    • Maximum Bandwidth: 18.0 Gbps (1-2 meters), 10.2Gbps @ 3 meters
    • Ethernet: 100 Mbps
  • Cable Construction:
    • HDMI Connector Features: HDMI "A" Male with up to 12 lbs high-retention feature, gold-plated
    • HDMI Molded Hood Construction: Copper Foil Shielded Pre-mold with PVC over mold. Overmold is blue in color.
    • HDMI Molded Hood Dimensions: 20.0x26x10.0mm
    • Jacket Material: Flame-rated PVC with a glossy black finish
    • Cable Construction: 28 AWG Tinned Copper TMDS pairs
    • Overall Cable Size: 0.287" (7.3 mm)
    • Minimum Bend Radius: 2.87" (73 mm)
    • Maximum Tensile Load: 44 lbs (20 kg)
  • Environmental Requirements:
    • Operating Temperature: +32° to +140° F (0° to +60° C)
    • Operating Humidity: 20% to 85%, Non-condensing
    • Storage Temperature: 0° to +176° F (-20° to +80° C)
  • Regulatory: NEC CL2, CEC FT4, EU RoHS-2 2011/65/EU Compliant
