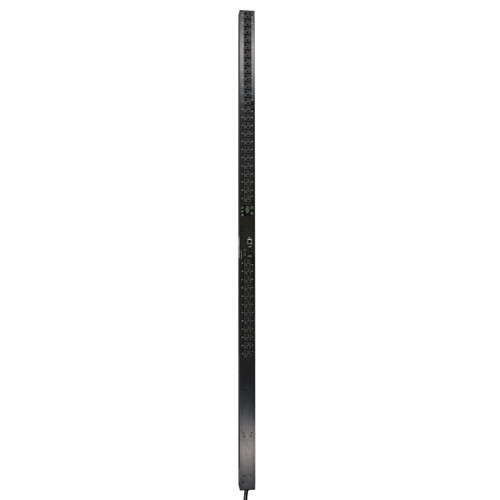

Tripp Lite PDU3VN10L2120LV
120V 20A 3-Phase Monitored Power Distribution Unit


Tripp Lite 3 phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection.
Learn More
Our Price: $490.14
List Price: $700.20
You save 30%!
Write the first review.
Tripp Lite PDU3VN10L2120LV
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Tripp Lite 3 phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU output current consumption in amps is displayed per-phase via front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers trip.

Tripp Lite PDU3VN10L2120LV  Includes:

  • Monitored rackmount PDU with pre-installed mounting buttons
  • Cord retention brackets
  • Spare installation buttons (2 9mm / 4 6mm)
  • Rack mounting brackets
  • Owner's manual

Tripp Lite PDU3VN10L2120LV Features:

  • 5.7kW 3 phase 208V Monitored Power Distribution Unit / PDU with built-in web/network interface
  • Attached NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug with 10 ft. / 3m cord
  • 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
  • 36 total 120V NEMA 5-15/20R outlets arranged in three breakered single phase output load banks
  • Lighted display with scroll-button reports power consumption in amps for all 3 loading banks, IP-address self-identification and 180 degree display rotation for overhead or raised floor power feeds
  • Built-in SNMP/ethernet interface reports voltage, frequency and PDU loading per-phase via network or secure web browser interface with options for user specified alarm and notification thresholds
  • Supports in-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
  • DHCP/Manual configuration support
  • 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
  • Real-time clock backup maintains the time of day and date even if the PDU is unpowered
  • Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
  • Alert notifications via email or SNMP traps offer immediate event notification
  • Firmware upgrade ability supports future product enhancements
  • Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
  • Fully compatible with FREE PowerAlert Network Management System / NMS Software
  • Included cord retention brackets keep vital network equipment plugged in and continuously powered
  • Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
  • Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
  • Ideal for 3 phase network configurations in datacenters and heavily configured equipment racks

Tripp Lite PDU3VN10L2120LV Specifications:

  • PDU Type  Monitored
    • Output Capacity Details:  5.7kVA total
    • Frequency Compatibility:  50 / 60 Hz
    • Output Nominal Voltage:  120V single phase
    • Outlet Quantity / Type:  36 NEMA 5-15/20R outlets
    • Outlet Type:  NEMA 5-15/20R
  • INPUT:
    • PDU Input Voltage:  208
    • Maximum Input Amps:  16
    • PDU Plug Type:  NEMA L21-20P
    • Input Cord Length (ft.):  10
    • Input Cord Length (m):  3.05
    • Input Phase:  3-Phase
    • Switches:  Pushbutton switches enable local display of each phase separately, display rotate and display IP address functions
    • Front Panel LEDs:  2 Digit current meter display reports output amps per phase and IP address
    • Shipping Dimensions (hwd / in.):  6.6 x 9.3 x 75.5
    • Shipping Dimensions (hwd / cm):  16.8 x 23.6 x 191.8
    • Shipping Weight (lbs.):  17.3
    • Shipping Weight (kg):  7.9
    • Unit Dimensions (hwd / in.):  70 x 2.19 x 1.67
    • Unit Dimensions (hwd / cm):  177.8 x 5.6 x 4.24
    • Unit Weight (lbs.):  10.1
    • Unit Weight (kg):  4.6
    • Material of Construction:  Steel
    • Style:  Vertical rackmount
    • Form Factors Supported:  Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
    • PDU Form Factor:  Vertical (0U)
    • Relative Humidity:  0-95% non-condensing
    • Certifications:  Tested to UL60950-1 (USA, Canada), NOM (Mexico), Class A (Emissions), ROHS, TAA Compliant
    • Product Warranty Period (Worldwide):  2-year limited warranty
