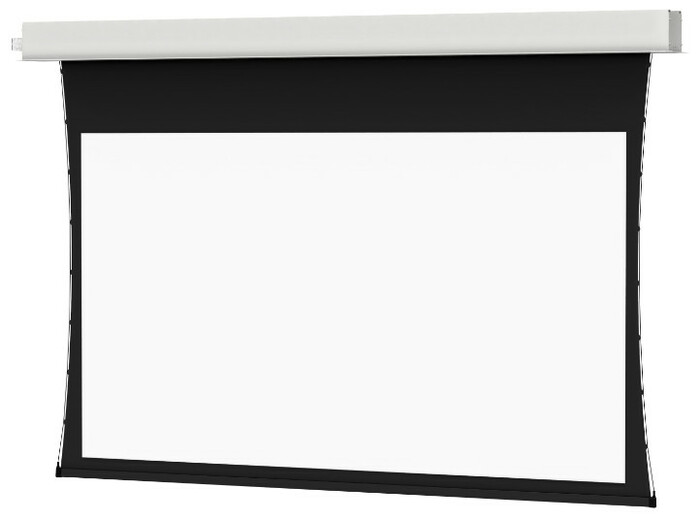

Da-Lite 84347LS
60in x 80in, 100in Diagonal Tensioned Advantage Electrol Screen with Da-Mat Surface

OUR PART #:  84347LS

The Da-Lite 84347LS screen is part of the Tensioned Advantage Electrol Series, which is designed to eliminate the extra step of finishing the screen with trim...
Learn More
Our Price: $2,416.80
List Price: $3,021.00
You save 20%!
Write the first review.
Da-Lite 84347LS
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Da-Lite 84347LS screen is part of the Tensioned Advantage Electrol Series, which is designed to eliminate the extra step of finishing the screen with trim, the Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen’s trim conceals the rough opening eliminating the need to complete additional trim work.  The Da-Lite model 84347LS features Da-Lite's Da-Mat screen surface technology.

Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling, and tensioned screens ensure the smoothest surface possible.

The Tensioned Advantage® Electrol® screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage.

The Tensioned Advantage Electrol does not include the automatic closure door. See Tensioned Advantage Deluxe Electrol for the additional aesthetic of the automatic closure door.

Da-Mat Screen Surface
Da-Mat is a unity gain vinyl surface with a smoother surface than Matte White. It features a white surface for good color reproduction for environments with controllable ambient light. Seamless in any width up to 16' in height.
Da-Mat can be cleaned with mild soap and water, is flame retardant, mildew resistant, and has achieved GREENGUARD GOLD Certification.

NOTE:  Due to inconsistencies in computer monitors, color of surface may vary from that shown.

Da-Lite 84347LS Features:

  • Standard Silent Drive System to keep your screen whisper quiet (sizes up to 10’x10’)
  • Standard Low Voltage Control (LVC) to keep your screen operation flexible
  • Smooth Roll Technology to keep your screen perfectly flat
  • Slim-Tab, a lower profile and stronger tab design to keep your screen perfectly taut
  • Simple Installation with a new installation kit and user-friendly packaging to keep you on schedule
  • Support includes a comprehensive five-year warranty to keep you confident in your purchase
  • UL Plenum rated case
  • White powder-coated case for a clean aesthetic
  • Tensioning Cable System to prevent warping and ensure even lateral tension
  • Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case
  • Decora-style, three-button wall switch
  • Standard black backing retains projected brightness
  • Seamless surfaces in all models

Da-Lite 84347LS Specifications:


  • Video Format:  4:3
  • Viewing Area (HxW):  60" x 80" (152cm x 203cm)
  • Nominal Diagonal:  100" (254cm)
  • Overall Length of Case:  97-1/2" (248cm)
  • Approx. Shipping Weight:  98 lbs. (44.5kg)

Da-Mat Screen

  • Half Angle: 60°
  • Gain: 1.0
