Product Overview

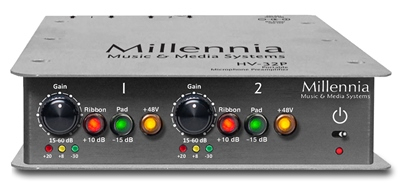

Packed into rugged aluminum chassis and powered from 12-15 VDC so they can go anywhere, Millennia’s new portable preamps bring you the clarity of the acclaimed HV-3 in two flavors: the dual-channel HV-32P, with two 200 Series HV-32 preamps on board, and the HV-35P, a portable version of Millenia's 500 Series HV-35 preamp.
Carry them with you, stack them horizontally or vertically, bolt three of them into a Middle Atlantic rack shelf — these preamps are designed to deliver Millennia quality from desktop to treetop.
Millenia Media HV-32P Features:
- Continuously variable gain control
- DC coupled ribbon mic setting with 10 dB gain boost
- 48V phantom power
- 15 dB Pad
- Polarity flip
- 12 to 15V operation - 100 to 240V line lump power supply, 12V output, included
Millenia Media HV-32P Specifications:
- Minimum Gain: 14.5 dB, 1 dB with Pad
- Maximum Gain (continuously variable): 60 dB (70 dB in Ribbon Mode)
- Frequency Response, -3 dB: < 10 Hz to > 200 kHz, typical -1.0 dB @ 10 Hz, typical -1.5 dB @ 200 kHz
- Noise, 60 dB Gain, 10 Hz - 30 kHz, Inputs common: -130 dB EIN
- Total Harmonic Distortion + Noise, 35 dB Gain, 10 Hz - 20 kHz bandwidth, +24 dBu Out: < .003%, Typical < .001%
- Intermodulation Distortion (50 Hz & 7 kHz) 35 dBGain:
- < .0006% +12 dBu Out
- < .001% +20 dBu Out
- Phase Response, 35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out: < 2 degrees deviation
- Common Mode Rejection Ratio, 35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.: > 65 dB, Typ > 85 dB
- Slew Rate, 35 dB Gain, +24 dBu Out: > 25Volts per microsecond
- Maximum Input Level, 20 Hz - 40 kHz:
- +12dBu @ 0.02% THD+N
- +18dBu @ 0.02% THD+N with pad
- Maximum Output Level (1 kHz @ 35dB of gain, THD+N):
- < 0.001% at +26 dBu output
- < 0.05% at +28 dBu output
- Phantom Input Impedance, 1 kHz: 2,210 Ohms
- Output Impedance: 24.3 Ohms (x2)
- Phantom Powering: 48V dc +/- 2V dc
- Dimensions (WxHxD): 5.67" x 1.69” x 8.19”
- Weight: 2 lbs
