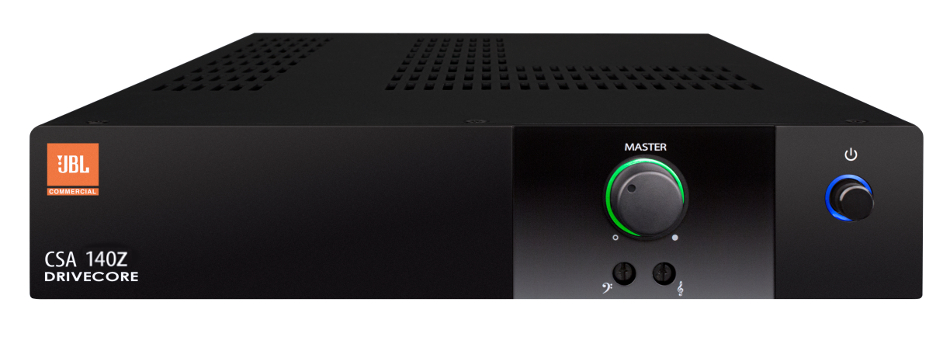

JBL CSA 140Z
40 Watt Single Channel Amplifier with 70/100V or Low-Impedance Operation

OUR PART #:  CSA140Z

By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.
Learn More
Our Price: $209.00
List Price: $261.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL CSA 140Z
Qty:
In Stock

Similar Products

By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.

From the switch-mode universal power supply to the efficient performance of Crown’s DriveCore™ Technology, we continue to set new standards in commercial power amplifier technology.

Simple to configure, the CS amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.

Supporting 70V and 100V installations out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every CS amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz.

And with HARMAN’s GreenEdge™ environmental initiative, CS amps quickly pay for themselves in energy savings.

JBL CSA 140Z Features:

  • 1 output channel with 40W of power
  • Built-in 70V and 100V
  • Fanless, space-saving 1U design
  • Sleep mode disable function
  • Energy-efficient amplifier
  • Sleek industrial look with illuminated rings making knobs easy to see and use
  • Supports the JBL CSR-V wall controller via Ethernet cable
  • Universal power supply

JBL CSA 140Z Specifications:

  • Power Output: 40W
  • Output Channels: 1
  • Input Sensitivity: 1.4 Vrms for 8 Ohms
  • Phantom Power: 27 VDC
  • AC Line Voltage: 100 - 240V, 50/60 Hz
  • Input Impedance: 20 kOhms/50 kOhms
  • Dimensions: 1.7" x 8.6" x 11.9" (43.3mm x 218.5mm x 303.4mm)
  • Included Accessories: Rack mounting kit
