MyMix Mix Pack 8

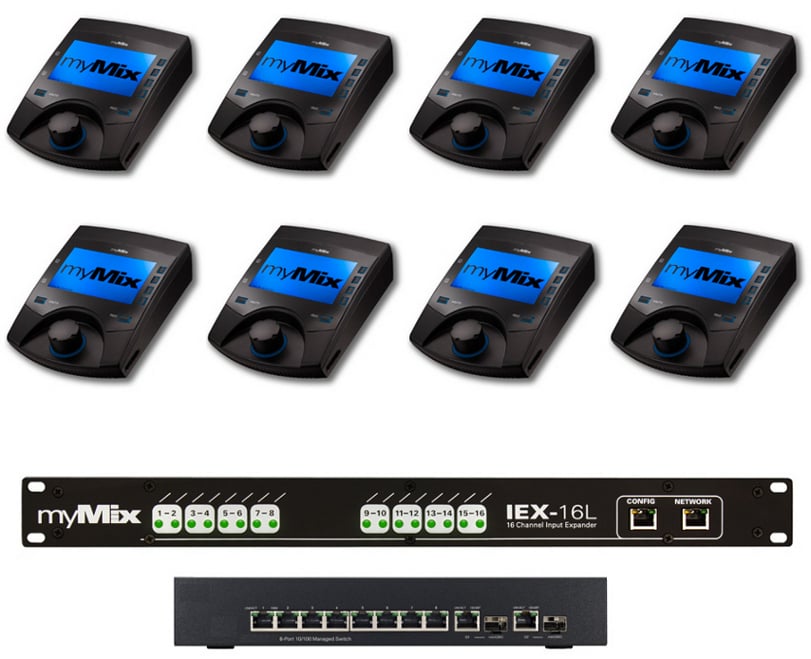

8 myMix Unit Package with 1x IEX16L-A and 1x Power8 Switch

OUR PART #:  MIXPACK8

The myMix Mix Pack 8 contains everything necessary* to provide individual stereo mixes and multi-track recording for eight people.
Learn More
myMix
myMix - Top View
myMix - Left Angle View

Click a thumbnail to see more images. (7 total)

Call for price! Not available online.
List Price: $6,750.00

Similar Products

The myMix Mix Pack 8 contains everything necessary* to provide individual stereo mixes and multi-track recording for eight people. Using up to 16 local inputs from myMix- and 16 from an IEX16L-A input expander, there are 32 audio channels to select from. All devices get connected with a CAT5* cable to the Power8 switch,  connect your audio inputs (analog or digital) to the IEX16L-A and/or myMix  and start.
*CAT5 and audio input cables are not included in the package.

  • 8 myMix, 1 IEX16L-A, 1 Power8
  • 32 audio inputs (16 + 8 x 2)
  • 8x Multi-Track Recording and Playback
  • Includes mic stand adapters and power supplies

The Power8 switch allows you to easily expand the system; one extra port for myMix Control, or an additional IEX16 ; the GB uplink port allows connection to other switches (e.g. a second Power8, a Power12 or Multi8) - all plug and play.

About the myMix

Personal mixer station for myMix systems. Select up to 16 unique channels to mix from all available network channels. Adjust channel volume, tone, effect send (from a choice of reverbs or an adjustable delay), and pan without affecting any other station on the network. Two mic/line inputs with input gain adjustment, input LEDs with signal and overload indicators (overload indicator also flashes red on channel name), switchable phantom power. Two line-level balanced 1/4" TRS outputs and one 1/8" (3.5mm) headphone output. Store up to 20 named profiles on each station. 4-band fully parametric stereo output EQ with selectable high and low shelving filters. Record up to 18 tracks (16 individual channels + your stereo mix) of multi-track audio to SD card, 24 bit, 48kHz time-stamped uncompressed .wav files.

myMix Features:

  • Individual stereo mixes for each musician with up to 16 channels of audio
  • Individual channel selection from network
  • Send Mix to Network
  • Up to 16 +2 tracks of recording and playback (with optional SDHC card)
  • Intuitive interface with full color LCD display
  • Networked via standard or PoE Fast Ethernet switches
  • Dual mic/line inputs with 48v phantom power
  • Separate headphone and stereo line outputs
  • Mounts easily to microphone stands with included adapter
  • Covenient Remote Control with optional myMix CONTROL Software

myMix Specifications:

Inputs

  • Impedance (Microphone / Line): 2 K Ohms / 20 K Ohms
  • Input Gain (Microphone): variable from +4 dB to +60 dB
  • Input Gain (Line):  variable from -16dB to +40 dB
  • Maximum Input Level (Mic/Line):  +14dBu / +34 dBu
  • Frequency Response: 20 Hz to 20 kHz (+0dB, -1dB)

Outputs

  • Impedance (Line / Headphone Outputs):  75 Ohm balanced / to drive > 16 Ohm
  • Max Output Level (Line): +21 dBu
  • Signal to Noise Ratio:  > 104 dB
  • THD +N (Microphone Input to Line Out):  <0,022%
  • Cross talk (L to R):  < -80 dB
  • Mute:  > 100 dB

System Network

  • Network Type: Fast Ethernet 100 Mbps
  • Network Cabling:  Cat 5
  • Network Latency:  <1 ms
  • AD/DA Conversion:  24-bit

Recording

  • Recording Media:  SD or SDHC card
  • Recording Format:  wav file, 24-bit, 48kHz sampling rate

Connectors

  • Microphone Input:  Balanced XLR (1 gnd, 2 pos, 3 neg)
  • Line Input:  Balanced ¼” jack (tip pos, ring neg, sleeve gnd)
  • Line Output:  Balanced ¼” jack (tip pos, ring neg, sleeve gnd)
  • Headphone Output:  3.5mm stereo jack
  • System Network:  RJ45

Weight and Dimensions

  • Net Size (excl. mic stand adaptor): 5.3" W x 6.7" H x 2.4" D (134 x 171 x 60 mm)
  • Net Weight (excl. mic stand adaptor): 1.1 lbs (0.5 kg)
  • Package Dimensions: 6.8" W x 11" H x 3.2" D (172 x 280 x 80 mm)
  • Package Weight:  2 lbs (0.9 kg)
  • Included Accessories:
    • myMix PSU (24V, 12W)
    • myMix microphone stand adaptor
