Draper Shade and Screen 215015
Diplomat/R Matte White Portable Projection Screen with Carpeted Case

OUR PART #:  215015

The Draper model 215015, part of the Diplomat/R series of heavy-duty tripod projection screens, is Draper's toughest tripod screen series.
Learn More
Our Price: $434.00
List Price: $542.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Draper Shade and Screen 215015
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

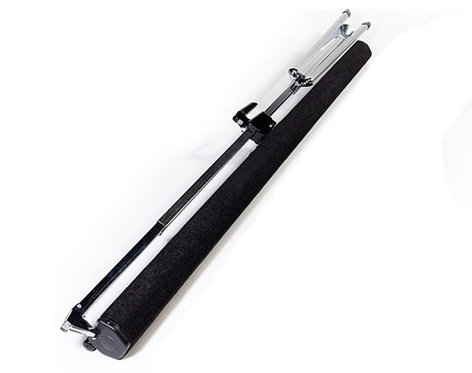

The Draper model 215015, part of the Diplomat/R series of heavy-duty tripod projection screens, is Draper's toughest tripod screen series. The steel case is covered and protected from scratches by black carpet. It combines simplicity of design, rugged components, and careful workmanship, and features one-hand case adjustment.

Viewing Surface Information

OptiView Family
OptiView surfaces are self-supporting and do not require tensioning to lay flat. These front projection surfaces are generally installed on operable roller screens with a dowel. Most surfaces in this group have a tearproof fiberglass base textile. OptiView surfaces are extremely sturdy and suitable for use in a variety of settings.
Matt White XT1000E
The standard to which all other screen surfaces are compared. Preferred viewing surface in educational and commercial markets. A matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Offers accurate color rendition, and superior clarity due to its smooth, non-embossed surface. Requires adequate provision for the control of ambient light in the audience area. Unity gain with a panoramic 180┬░ cone. This surface is GREENGUARD Children and Schools SM certified.
For Matt White XT1000E Surface characteristics and reflective performance, please refer to the Technical Data Sheet in the "Documents" tab.

Draper 215015 Features:

  • All the best features of the Diplomat made more durable.
  • Case is scratch resistant baked-on black plastisol on steel.
  • Suspension slat saddle in all sizes maintains a flat viewing surface.
  • Easy setup.
  • Exclusive Bell Leg Lock protects the Diplomat/R's sturdy gabled aluminum legs during storage and transportation.
  • Black PVC-backed 600-denier polyester zippered carrying case is optionally available (sold separately).
  • NTSC format screens have black borders on all four sides.
  • Optional skirts to dress-up your presentation (sold separately).
  • Warranted for one year against defects in materials and workmanship.

Draper 215015 Specifications:

  • Part Number:  215015
  • Surface Material:  Matt White XT1000E
  • Image Format:  AV
  • Diagonal Size:  72" x 96" (183cm x 244cm)
  • Image/Viewable Area:  72" x 96" (183cm x 244cm)
  • Product Weight:  41 lbs. (19 kg)
  • Shipping Weight:  47 lbs. (21 kg)
