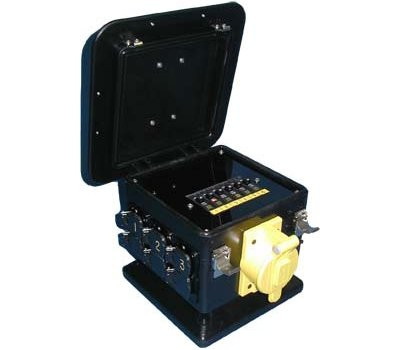

Lex DB-50NQ-BBB-S3 50A Pagoda Jr with California-Style Inlet and Feed Thru, (6) 5-20 Duplex

50 Amp, Single Phase, 3 Pole, 4 Wire, 120/240 VAC, Pagoda Jr. Enclosure, (1) 50 Amp California-style locking inlet to (6) NEMA 5-20, 20 Amp, 120 VAC duplex receptacles, feed thru, NEMA 3R Weather Resistant.

This box can be fed directly from a generator or from a larger box and is able to provide temporary power in disaster relief situations. include

Applications

powering lights

pumps

fans

tools.

Lex Products DB-50NQ-BBB-S3 Features:

• Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion.
• Breakers are mounted under hinged lid for enhanced safety.
• Stackable and compact for easy storage and portability.
• Elevated base keeps receptacles above ground level.

Lex Products DB-50NQ-BBB-S3 Specifications:

• Rating: 50 Amp, Single Phase (H,H,N,G), 3 Pole, 4 Wire, 120/240 VAC
• Environmental Rating: NEMA 3R Weather Resistant
• Input: (1) 50 Amp, Single Phase, 3 Pole, 4 Wire, 120/240 VAC, California-style locking inlet
• Output: (6) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC duplex receptacles
• Feed Thru: (1) 50Amp, 3 Pole, 4Wire, 125/240 VAC, California-style locking receptacle
• Overcurrent Protection: (6) 20 Amp, Single Pole branch-rated circuit breakers
• Overall Dimensions: 8.5" L x 8.5" W x 11" H
• Weight: 16 lbs
• Agency Approvals: cULus Listed - Approved for use in the U.S. and Canada
• Enclosure Type: Heavy Duty Molded Rubber
