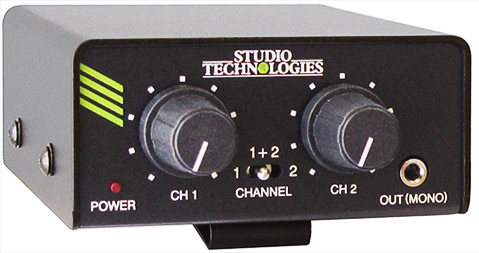

Studio Technologies MODEL-33A
Listen Only IFB Talent Amplifier Beltpack Unit

OUR PART #  MODEL-33A

Our Price: $188.48
List Price: $190.00
(Low Price Guarantee)
In Stock

The Studio Technologies Model 33A Talent Amplifier is a self-contained listen-only "beltpack" unit intended for use by on-air talent or production personnel. It's directly compatible with the Studio Technologies Model 2A Central Controller (sold separately) as well as other standard IFB or party-line intercom circuits. The Model 33A is powered by, and receives audio from, the connected IFB or intercom circuit. A single 3-conductor microphone-type cable links the Model 2A's talent amplifier output with the Model 33A's input. Each Model 33A contains both a male and a female 3-pin XLR-type connector, allowing simple "loop-through" connection of multiple units. Up to four talent amplifiers can be connected to, and powered by a single Model 2A Central Controller. The Model 33A's output is intended to be connected to talent earpieces or headsets. For flexibility the audio output is provided on both 1/4" and 1/8" (3.5mm) jacks. An LED indicator lights whenever input power is present, providing setup assistance and user confidence. The Model 33A is housed in a lightweight, yet rugged, aluminum housing. A belt clip allows it to be directly attached to clothing or accessories. An optional mounting adapter is available to allow the Model 33A to be installed in a permanent location.

The Model 33A is unique in that a "mix" of IFB channels 1 and 2 can be created. Two level controls, along with a source select switch, allows camera and production personnel to hear IFB cues from either or both channels. This allows IFB signals intended for both technician and talent to be simultaneously monitored. By design, the Model 33A's level controls cannot be set to fully attenuate ("mute") the audio output. This helps to minimize the chance that users will accidentally miss important "cues" from directors or producers. While audio quality is not normally considered a factor in IFB or intercom systems, the Model 33A is built to "pro audio" standards. This helps to ensure that the best possible audio reproduction is provided.

The Model 33A is an update of the popular Model 33 Talent Amplifier. The Model 33A includes the addition of an 1/8" (3.5mm) output jack, along with updated internal circuitry. In all ways the Model 33A meets or exceeds the performance of its predecessor.

The Model 33A is compatible with virtually every standard IFB and party-line intercom circuit, including those associated with equipment from RTS®, Clear-Com®, and Studio Technologies. This type of circuit typically uses a 3-pin XLR-type connector for interfacing with connected equipment. Electrically, XLR pin 1 serves as common for DC power and audio; pin 2 provides DC power and, in the case of a dual-channel circuit, DC power and channel 1 audio; pin 3 provides channel 2 audio for dual-channel systems, or channel 1 audio in single-channel systems.

Studio Technologies Model 33A Features:

  • Controls allow mix of Channels 1 and 2
  • 1/4" and 1/8" (3.5mm) output connectors
  • Excellent audio quality
  • Low DC power consumption
  • Compatible with Model 2A Central Controller
  • Compact, lightweight package
  • Update of the popular Model 33

Studio Technologies Model 33A Specifications:

  • Connectors:
    • Input:  3-pin Female XLR
    • Loop Through:  3-pin Male XLR
    • Output:  1/4" and 1/8" (3.5mm) 2-conductor jacks; sleeve common, tip "hot," ring not used
  • IFB/Intercom Input Wiring Scheme:
    • Pin 1:  Common for DC and Audio
    • Pin 2:  DC with Channel 1 Audio (dual-channel circuits) or DC only (single-channel circuits)
    • Pin 3:  Channel 1 audio (single-channel circuits) or Channel 2 audio (dual-chanenel circuits)
  • Power Requirement:  18 - 35 volts DV, 15 millamperes quiescent, 40 milliamperes maximum
  • Output:
    • Compatibility:  Intended for connection to mono (2-conductor) headsets or earpieces with nominal impedance of 150 Ohms or greater
    • Type:  Voltage Driver
    • Input/Output Gain:  28 dB, maximum
    • Maximum Output Voltage:  8 Volts peak-to-peak, 1 kHz, 150 Ohm load
    • Frequency Response:  40 Hz - 20 kHz, +/- 1 dB, 150 Ohm load
    • Distortion (THD+N):  0.03%, 1 kHz, 150 Ohm load, 0 dBu out
  • Indicator Light:  Red LED indicates operation of internal power supply
  • Mounting:  Intended for portable applications; contains integral belt clip; optional mounting adapter kit allows Model 33A to be permanently mounted
  • Dimensions (WxHxD):  3.25" x 1.8" x 3.95" (8.3cm x 4.6cm x 10.0cm)
  • Weight:  0.6 lbs (0.3 kg)

Studio Technologies MODEL-33A
Listen Only IFB Talent Amplifier Beltpack Unit

OUR PART #  MODEL-33A

Product Information:

The Studio Technologies Model 33A Talent Amplifier is a self-contained listen-only "beltpack" unit intended for use by on-air talent or production personnel. It's directly compatible with the Studio Technologies Model 2A Central Controller (sold separately) as well as other standard IFB or party-line intercom circuits. The Model 33A is powered by, and receives audio from, the connected IFB or intercom circuit. A single 3-conductor microphone-type cable links the Model 2A's talent amplifier output with the Model 33A's input. Each Model 33A contains both a male and a female 3-pin XLR-type connector, allowing simple "loop-through" connection of multiple units. Up to four talent amplifiers can be connected to, and powered by a single Model 2A Central Controller. The Model 33A's output is intended to be connected to talent earpieces or headsets. For flexibility the audio output is provided on both 1/4" and 1/8" (3.5mm) jacks. An LED indicator lights whenever input power is present, providing setup assistance and user confidence. The Model 33A is housed in a lightweight, yet rugged, aluminum housing. A belt clip allows it to be directly attached to clothing or accessories. An optional mounting adapter is available to allow the Model 33A to be installed in a permanent location.

The Model 33A is unique in that a "mix" of IFB channels 1 and 2 can be created. Two level controls, along with a source select switch, allows camera and production personnel to hear IFB cues from either or both channels. This allows IFB signals intended for both technician and talent to be simultaneously monitored. By design, the Model 33A's level controls cannot be set to fully attenuate ("mute") the audio output. This helps to minimize the chance that users will accidentally miss important "cues" from directors or producers. While audio quality is not normally considered a factor in IFB or intercom systems, the Model 33A is built to "pro audio" standards. This helps to ensure that the best possible audio reproduction is provided.

The Model 33A is an update of the popular Model 33 Talent Amplifier. The Model 33A includes the addition of an 1/8" (3.5mm) output jack, along with updated internal circuitry. In all ways the Model 33A meets or exceeds the performance of its predecessor.

The Model 33A is compatible with virtually every standard IFB and party-line intercom circuit, including those associated with equipment from RTS®, Clear-Com®, and Studio Technologies. This type of circuit typically uses a 3-pin XLR-type connector for interfacing with connected equipment. Electrically, XLR pin 1 serves as common for DC power and audio; pin 2 provides DC power and, in the case of a dual-channel circuit, DC power and channel 1 audio; pin 3 provides channel 2 audio for dual-channel systems, or channel 1 audio in single-channel systems.

Studio Technologies Model 33A Features:

  • Controls allow mix of Channels 1 and 2
  • 1/4" and 1/8" (3.5mm) output connectors
  • Excellent audio quality
  • Low DC power consumption
  • Compatible with Model 2A Central Controller
  • Compact, lightweight package
  • Update of the popular Model 33

Studio Technologies Model 33A Specifications:

  • Connectors:
    • Input:  3-pin Female XLR
    • Loop Through:  3-pin Male XLR
    • Output:  1/4" and 1/8" (3.5mm) 2-conductor jacks; sleeve common, tip "hot," ring not used
  • IFB/Intercom Input Wiring Scheme:
    • Pin 1:  Common for DC and Audio
    • Pin 2:  DC with Channel 1 Audio (dual-channel circuits) or DC only (single-channel circuits)
    • Pin 3:  Channel 1 audio (single-channel circuits) or Channel 2 audio (dual-chanenel circuits)
  • Power Requirement:  18 - 35 volts DV, 15 millamperes quiescent, 40 milliamperes maximum
  • Output:
    • Compatibility:  Intended for connection to mono (2-conductor) headsets or earpieces with nominal impedance of 150 Ohms or greater
    • Type:  Voltage Driver
    • Input/Output Gain:  28 dB, maximum
    • Maximum Output Voltage:  8 Volts peak-to-peak, 1 kHz, 150 Ohm load
    • Frequency Response:  40 Hz - 20 kHz, +/- 1 dB, 150 Ohm load
    • Distortion (THD+N):  0.03%, 1 kHz, 150 Ohm load, 0 dBu out
  • Indicator Light:  Red LED indicates operation of internal power supply
  • Mounting:  Intended for portable applications; contains integral belt clip; optional mounting adapter kit allows Model 33A to be permanently mounted
  • Dimensions (WxHxD):  3.25" x 1.8" x 3.95" (8.3cm x 4.6cm x 10.0cm)
  • Weight:  0.6 lbs (0.3 kg)
