Varizoom VZM7K
VZM7 Monitor Deluxe Kit


The Varizoom VZM7K kit includes everything you need for monitoring your video productions.
Learn More
Our Price: $494.76
List Price: $499.00
Write the first review.
Varizoom VZM7K
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Varizoom VZM7K kit includes everything you need for monitoring your video productions. Starting with Varizoom's ultra-sharp VZM7 monitor for accurate representation of your video feed, this kit includes accessories and features you won't find anywhere else. The collapsible sunhood/screen protector offers a professional look, excellent viewing outdoors, and superior protection during storage & transport. The high-capacity battery system will keep your monitor running for up to 6 hours. Pre-mounted with the kit are a Sony L series battery plate and the extremely handy HDMI locks to prevent the cable from loosening or damaging the monitor connectors should the cable get yanked or bent. Also included are the swivel shoe mount for attaching the monitor to your camera and the foam-lined hard case that holds everything together and protects your investment. Last but not least is the innovative zoom button that allows you to remotely put the monitor in pixel-to-pixel and peaking modes for extremely accurate focusing. Buy this kit to save or purchase the accessories a la carte. Don't forget about Varizoom's optional VZM7-RC rubber case protector to make your monitor stand up to the rigors of field use.

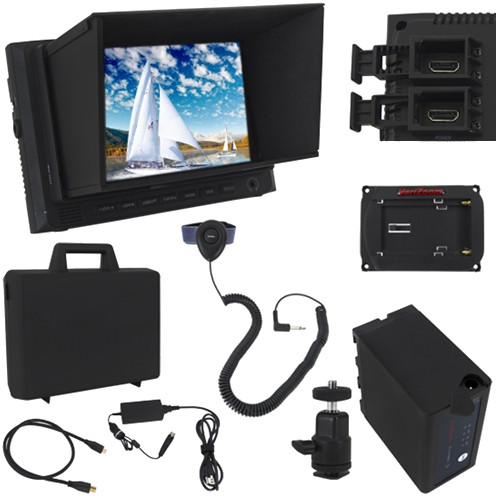

  • VZM7 Monitor
  • Power supply
  • 2 HDMI cables (standard-standard & standard-mini)
  • VZM7HD sunhood/screen protector
  • VZMBPS Sony L series battery plate
  • High-capacity battery (6 hrs)
  • VZMCH charger
  • VZMZB remote zoom button
  • VZSHOE swivel shoe mount
  • VZMLOCK HDMI cable locks (2)
  • VZMCC hard carrying case

Varizoom VZM7K Features:

  • VZM7 monitor with power supply and 2 HDMI cables (mini-std and std-std)
  • Hard Sunhood/Screen Protector
  • High Capacity L Series Battery 47Wh
  • Compact Travel Charger
  • Battery Plate Sony L Series (premounted)
  • Remote Zoom Button for Focus Assist
  • Swivel Shoe Mount for camera-top mounting
  • 2 HDMI locks for In and Out
  • Hard Case with foam lining

Varizoom VZM7 Features:

  • Accepts all HD signals up to 1080p
  • HDMI In / Out (loop through)
  • DSLR Scaling to allow full-screen viewing of image from cameras such as Canon 5D
  • Auto Aspect Ratio Detection
  • Monochrome (B&W) mode
  • Image Flip for inverted mounting
  • Safety Area markers (5 levels), Centerline Marker, 4:3 area markers
  • Underscan and Overscan modes
  • Color Temperature Presets (D65 and D93 standards), or user-defined through RGB settings
  • Brightness, Contrast, Saturation, Sharpness adjustments
  • Customizable Menu Options for menu duration, position, text color and language
  • Built-In Speaker and Headphone jack for audio monitoring
  • Pixel-to-Pixel Zoom and Peaking for Focus Assist

Varizoom VZM7K Specifications:

  • Screen Size: 7" diagonal
  • HDCP Compliant: Yes
  • Native Resolution: 1024 x 600
  • Brightness: 250 cd/m2
  • Contrast: 700:1
  • Backlight Type: LED
  • Video Formats:
    • 1080: 24p/24psf/25p/30p/50i/60i/50p/60p
    • 720: 50p/60p; 480i; 480p; 576i; 576p
  • Response Time: 10ms
  • Viewing Angle: L75° / R75° / U70° / D75°
  • Input Voltage: 12VDC nominal (6.5 – 36VDC max range)
  • Mount Type: 1/4"-20 female (4x – top, bottom, left, right)
  • Inputs/Outputs: HDMI (in), HDMI (out), Headphone 3.5mm (out), “Zoom” (in) 3.5mm, XLR power (4+, 1-)
  • Dimensions: 8" x 5.4" x 1.5"
  • Weight: 1.25 lbs
  • Battery Capacity: 47 Wh / 6600 mAh / approx 6hrs runtime
  • Power consumption: </= 8W
  • Warranty: 1 year (does not cover screen damage)
