Doug Fleenor Designs DMX1REL20A-2POLE
2-Pole Single Channel DMX512-Controlled Relay Pack


Doug Fleenor Design makes a series of Relay Packs that are controlled by DMX512.
Learn More
Our Price: $445.50
List Price: $550.00
You save 19%!
Write the first review.
Doug Fleenor Designs DMX1REL20A-2POLE
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

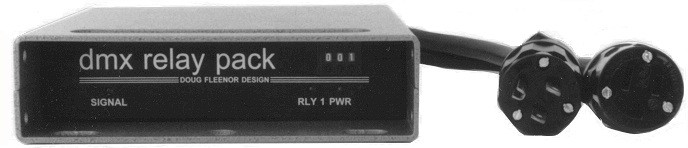

Doug Fleenor Design makes a series of Relay Packs that are controlled by DMX512. This single channel unit, designed to switch up to a 20 amp line voltage load, uses a 30 amp relay. The unit is provided with two 18" 12/3 SJ pigtails for line in and switched line out. Supplied with 15 amp parallel blade connectors as standard, the unit may be wired with higher rating connectors by special order or may be rewired by the customer.

Doug Fleenor Design Relay Packs use dry contact air-gap relays. These relays have advantages and disadvantages over the solid state relays found in dimmer packs. Solid state relays can be switched on and off rapidly with no wear, but tend to leak current even when in the off position. Air-gap relays do not leak current, but due to their mechanical design have a finite life span. Doug Fleenor Design Relay Packs
should be used where a true off condition is required (no voltage, no current). They should not be used in applications where they will be turned on and off rapidly (for example in chase lights). Ideal applications include fog machines, power to moving light fixtures, motorized disco effects, strobe lights, fans, etc.

Doug Fleenor Designs DMX1REL20A-2POLE Specifications:

Input specifications meet or exceed DMX512 requirements.

  • Input signal: 250 Kilobaud, 0.2 volts minimum, 12volts maximum.
  • Input circuit: EIA-485 receiver with two 100 ohm PTCself resetting fuses, four low capacitance transient suppression diodes.
  • Input connector: Gold plated 5 pin male (Neutrik D-1series).
  • Input pass through: Gold plated 5 pin female (NeutrikD-1 series). All five pins are passed through.
  • Power input: 100 to 208 Volts, 50/60 hertz, or 220 to240 Volts 2 watts (plus load).
  • Power input plug: NEMA type 5-15P dead front plugstandard, others optional.
  • Power output: Input power is switched to output. (Hotside only)
  • Power output socket: NEMA type 5-15R dead frontreceptacle standard, others optional.
  • Output rating: 15 amps with standard connectors, 20amps with optional connectors.
  • Output device: Omron G8P. Mechanical life: 10,000,000operations minimum.
  • Electrical life: 250,000 operations minimum at 5Amps.
    • 125,000 operations minimum at 20 Amps.
  • Color: Top, bottom and sides: Silver hammer tone.Front and back: Black.
  • Size and weight: 6.5" deep, 1.7" high, 6.5" wide, 2.7pounds (19” rack adapter available).
  • Warranty: Five years on defects in manufacturing. Output device is notcovered.
