Product Overview
The Elation Pro Lighting Volt Q5E Six Pack™ charging road case includes (6) IP65 rated Volt Q5E™ units, each having (5) 10W QUAD color RGBW LEDs, 9° beam 17° field angles, 180°+ manual LED head positioning, variable color correction (2,700K - 7,200K), magnetic frost filter gel frame, electronic strobe and dimming, flicker free operation for TV and FILM, rugged die-cast aluminum exterior, rubber padded base, retractable carrying handle, an internal wireless EWDMX receiver, and powered by a rechargeable Lithium-Ion battery.
Elation Pro Lighting VOLT-Q5E Includes:
- Volt Q5 Charging Road Case
- Six Volt Q5E™ Units
- Six Omega Brackets
- Main Power Cable
Elation Pro Lighting VOLT-Q5E Features (Preliminary):
- Volt Q5E™ Fixture (x 6)
- IP65 Rated
- 9° Beam and 17° Field Angles
- 180°+ Manual LED Head Positioning
- Variable Color Correction (2,700K - 7,200K)
- Internal Wireless EWDMX Receiver
- Rechargeable Lithium-Ion Battery
- Flicker Free Operation for TV and FILM
- Rugged Die-Cast Aluminum Exterior
- Rubber Padded Base and Retractable Carrying Handle

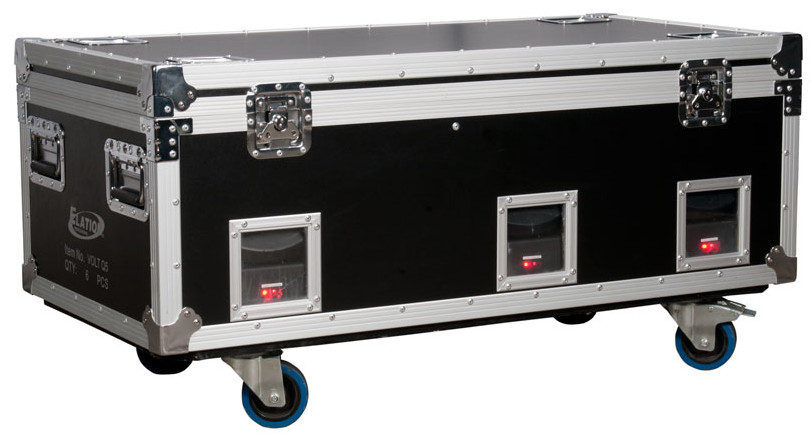

- Volt Q5™ Charging Road Case
- Charges (6) Volt Q5™ Units
- Charge Status Windows for each unit
Elation Pro Lighting VOLT-Q5E Specifications (Preliminary):
- Volt Q5E™ Fixture (x 6)
- Source
- Five 10W QUAD Color RGBW LEDs
- 100,000 Hour Average Life
- Photometric Data
- 34,450 LUX 3,572 FC @3.3 ft (1m) (9° Full ON)
- Effects
- Variable Color Correction (2,700K - 7,200K)
- Magnetic Frost Filter Gel Frame
- Electronic Strobe and Dimming
- Multiple Color and Chase Macros
- Control / Connections
- Four DMX Channel Modes (4 / 5 / 7 / 9)
- Internal Wireless EWDMX Receiver
- Four Button Control Panel
- LCD Menu Display
- 3-pin IP DMX In/Out
- 2-pin IP Power Charger In
- Physical Single Unit
- Length: 11.4” (290mm)
- Width: 5.5” (252mm)
- Vertical Height: 11.4” (289mm)
- Weight: 15.0 lbs. (6.8 kg)
- Electrical / Thermal
- DC 22-26.2V
- 65W Max Power Consumption (each unit)
- 14°F to 113°F (-10°C to 45°C)
- Installation
- Rigging: Clamps (
- Working Position: Any (360°)
- VOLT Q5™ Charging Road Case
- Physical Loaded Case with six Units
- Length: 44.0” (1118mm)
- Width: 22.0” (560mm)
- Vertical Height: 16.0” (406mm)
- Loaded Weight: 240.0 lbs. (109 kg)
- Electrical / Thermal
- Max Power Consumption: pending
- 14°F to 113°F (-10°C to 45°C)
Note
NOTE: Specifications are preliminary and subject to change without notice.
