Elation Pro Lighting PIXEL-BAR-40
40x Pixel Tri Color SMD

OUR PART #:  PIXEL-BAR-40

The Elation Pro Lighting Pixel Bar 40™  is a 40-pixel length lighting bar, featuring 3-in-1 SMD LEDs producing a 25mm pixel pitch...
Learn More
Our Price: $184.00
List Price: $230.00
You save 20%!
Write the first review.
Elation Pro Lighting PIXEL-BAR-40
Qty:
In Stock

Related Products

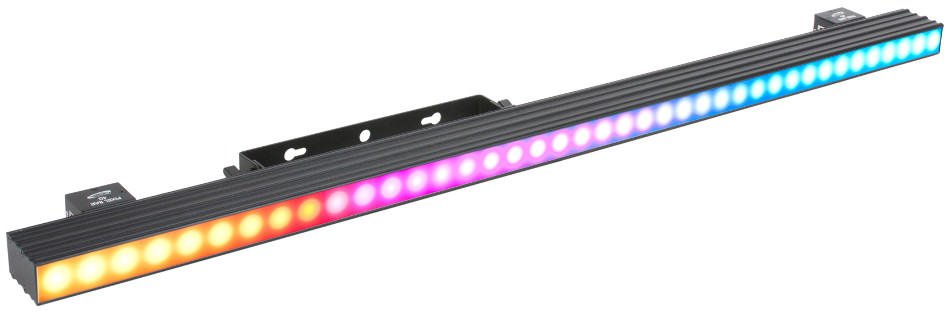

The Elation Pro Lighting Pixel Bar 40™  is a 40-pixel length lighting bar, featuring 3-in-1 SMD LEDs producing a 25mm pixel pitch, 16.7 million colors with 8 bits per color, 850 NITs, 2000Hz refresh rate, DC24V, (2) RJ45 CAT5e ports (input/output) connections, flicker free operation for broadcast TV and FILM, multiple unit linkable, extruded aluminum housing, and integrated adjustable mounting brackets/clamps.

Elation Pro Lighting Pixel Bar 40 Features:

  • 25mm Pixel Pitch
  • 850 NITs / 2000Hz Refresh Rate
  • Extruded Aluminum Housing

Elation Pro Lighting Pixel Bar 40 Specifications:

Source / Photometric Data

  • (40) 3-in-1 SMD LEDs / 82 LUX (8 FC) @1.6 ft. (0.5m) 120° Full ON

Color

  • 16.7 Million Colors / 8 Bits Per Color

Control / Connections

  • 120 DMX Channels
  • Multiple Unit Linkable (16 units per PIXEL NET 4™ device)
  • (1) RJ45 CAT5e Input / Output

Physical

  • Length: 39.4” (1000mm)
  • Width: 1.5” (38.2mm)
  • Vertical Height: 3.6” (92.6mm)
  • Weight: 5.5 lbs. (2.5kg)

Electrical / Thermal

  • DC-24V
  • 32°F to 104°F (0°C to 40°C)
  • 16W Max Power Consumption

Approvals / Ratings

  • CE Approved
  • ETLus Pending
  • IP20 Rated

NOTE: Specifications subject to change without notice.
