Elation Pro Lighting PIXEL-BAR-12
12x Pixel Tri Color SMD

OUR PART #:  PIXEL-BAR-12

The Elation Pro Lighting Pixel Bar 12™  is a 12-pixel length lighting bar, featuring 3-in-1 SMD LEDs producing a 25mm pixel pitch...
Learn More
Our Price: $104.00
List Price: $130.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting PIXEL-BAR-12
Qty:
In Stock

Similar Products

The Elation Pro Lighting Pixel Bar 12™  is a 12-pixel length lighting bar, featuring 3-in-1 SMD LEDs producing a 25mm pixel pitch, 16.7 million colors with 8 bits per color, 850 NITs, 2000Hz refresh rate, DC24V, (2) RJ45 CAT5e ports (input/output) connections, flicker free operation for broadcast TV and FILM, multiple unit linkable, extruded aluminum housing, and integrated adjustable mounting brackets/clamps.

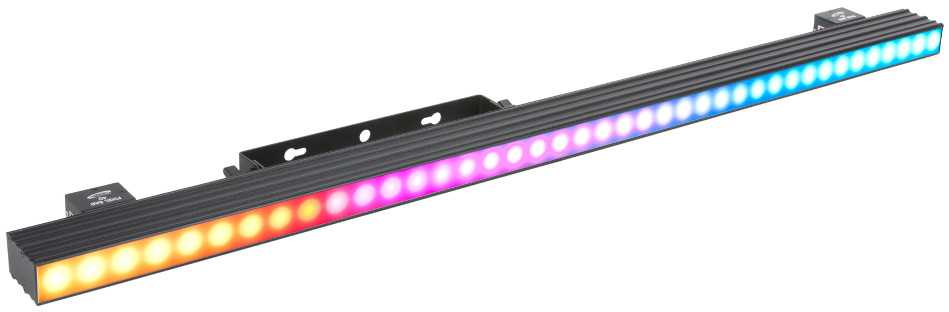

NOTE: Picture shown is the Pixel Bar 40™ with 40 pixels. Pixel Bar 12 will vary from that shown in that it features 12 pixels.

Elation Pro Lighting Pixel Bar 12 Features:

  • 25mm Pixel Pitch
  • 850 NITs / 2000Hz Refresh Rate
  • Extruded Aluminum Housing

Elation Pro Lighting Pixel Bar 12 Specifications:

Source / Photometric Data

  • (12) 3-in-1 SMD LEDs / 82 LUX (8 FC) @1.6 ft. (0.5m) 120° Full ON

Color

  • 16.7 Million Colors / 8 Bits Per Color

Control / Connections

  • 36 DMX Channels
  • Multiple Unit Linkable (52 per PIXEL NET 4™ device)
  • (1) RJ45 CAT5e Input / Output

Physical

  • Length: 13.1” (333mm)
  • Width: 1.5” (38.2mm)
  • Vertical Height: 3.6” (92.6mm)
  • Weight: <2.0 lbs. (0.9kg)

Electrical / Thermal

  • DC-24V
  • 32°F to 104°F (0°C to 40°C)
  • 4.8W Max Power Consumption

Approvals / Ratings

  • CE Approved
  • ETLus Pending
  • IP20 Rated

NOTE: Specifications subject to change without notice.
