Magma ROBEN-3TS
3-Slot 8-Drivebay Thunderbolt 2 to PCIe Expansion Chassis

OUR PART #:  MG-ROBEN-3TS

ROBEN-3TS incorporates the best technology from our mission critical defense and aerospace systems.
Learn More
Our Price: $1,999.00
Write the first review.
Magma ROBEN-3TS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

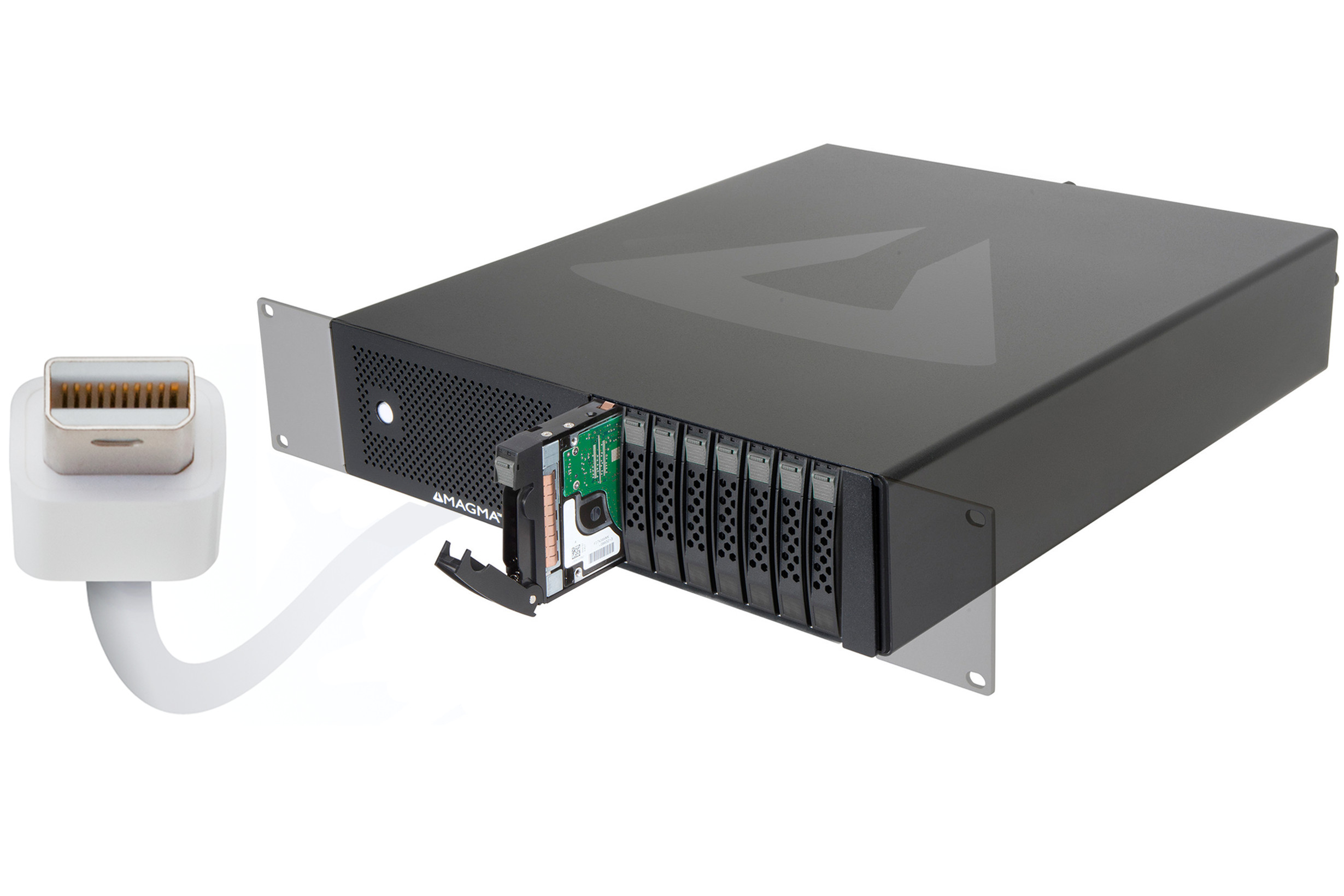

ROBEN-3TS incorporates the best technology from our mission critical defense and aerospace systems. ROBEN-3TS features three (3) full-length, full-height PCIe slots with a robust, high speed backplane.

The rack-mountable aluminum chassis was designed for integrated removable storage expansion, with eight (8) 2.5-inch SATA/SAS HDD or SSD hard drive bays, a fanless 520-watt power supply, auxiliary power, and features two (2) 40mm 6.37 CFM Drive Bay Fans.

This added power can be channeled through lightning fast Thunderbolt 2 technology at 20Gbps. With 3-Slot PCIe and internal storage expansion, ROBEN-3TS empowers the serious audio, video, and design professional to transform their computer into a powerful workstation - a sidekick for the creative hero.

With the ROBEN-3TS, you will have the option of using the system in a desktop or rack-mounted configuration, adding higher versatility to your workflow.  Also, by simply connecting two or more ROBEN-3TS systems in a series, you can create the performance equivalent of a server, without the cost and complexity.

The ultimate sidekick for all your creative needs - the ROBEN-3TS is the perfect choice for reaching beyond the limits of your creative genius.

Magma ROBEN-3TS Features:

  • Three (3) available full length/full height expansion slots
  • Tool-less cover removal
  • White power-on indicator front panel light
  • One 80mm 33.4 CFM Expansion Card/Backplane Fan
  • Variable speed thermistor control option (or full speed)
  • Thunderbolt 2 speeds up to 20Gbps (2.5GBps) Bi-directional
  • Attach PCIe cards to Thunderbolt 2-enabled computer
  • Extension of PCI Express signals outside the computer
  • Daisy-chain or end-point device
  • Easy Plug and Play installation
  • Use any combination of x1, x4, x8 and x16 PCIe cards
  • Magma’s exclusive quiet cooling control
  • Auxiliary power cables
  • Fanless 520-watt power supply

Magma ROBEN-3TS Specifications:

  • Model: ROBEN-3TS
  • Hardware:
    • Backplane: (3) Full Length/Full Height PCI Express Slots*
      • 3 slots x8 PCIe 2.0 electrical; x16 mechanical
    • Cable Required: Thunderbolt (Sold Separately)
    • Interconnect Bandwidth: 20 Gbps Bi-directional
  • Enclosure:
    • Material: Aluminum Chassis
    • Dimensions (LxWxH): 17” x 14.25” x 3.48” (432mm x 363mm x 88.4mm)
  • System Cooling:
    • (1) 80mm 33.4 CFM Expansion Card/Backplane Fan  (1) Variable speed thermistor control option (or full speed)
    • Two (2) 40mm 6.37 CFM Drive Bay Fans
  • Power Supply:
    • Fanless: 520W, 100-240 VAC, 50-60HZ
    • Auxiliary power cables:
      • (4) 4-pin Molex connectors
      • (2) 6-pin + 2 PCIe connectors
      • (2) PCIe Connectors
  • Environmental:
    • Ambient Temperature: 0º to 50º C
    • Storage Temperature: -40º to 125º C
    • Relative Humidity: 10% to 90% non-condensing
  • Regulatory Compliance:
    • FCC Class A Verified  RoHS Compliant
    • CE Certified
  • Supported Operating Systems:
    • Mac Compatibility: Mac OS X 10.6.8 or higher
    • PC Compatibility: Windows 7, 8
  • Warranty: 30 day money back guarantee, 1 year return to factory

NOTE:  A controller card with 4 internal ports and a Thunderbolt 2 compatible driver is required when installing disk drives with this product. THE CONTROLLER CARD IS SOLD SEPARATELY .


Recommended Cards:

  • Areca:
    • ARC-1882LP
    • ARC-1213-4i
    • ARC-1223-8i
    • ARC-1880IXL-12
    • ARC-1320-8i
    • ARC-1320-4i4x
    • ARC-1320ix-16
  • Atto:
    • ESAS R608
    • ESAS R644
    • ESAS H644
    • ESAS H60F
    • ESAS H608
    • ESAS R60F
