Magma MG-ROBEN-3TX
3-Slot Thunderbolt to PCIe Expansion Chassis

OUR PART #:  MG-ROBEN-3TX

Engineered to Magma’s mission critical standards for performance and reliability, ROBEN-3TX features three (3) full-length, full-height PCIe slots with a robust...
Learn More
Our Price: $1,424.05
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Magma MG-ROBEN-3TX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

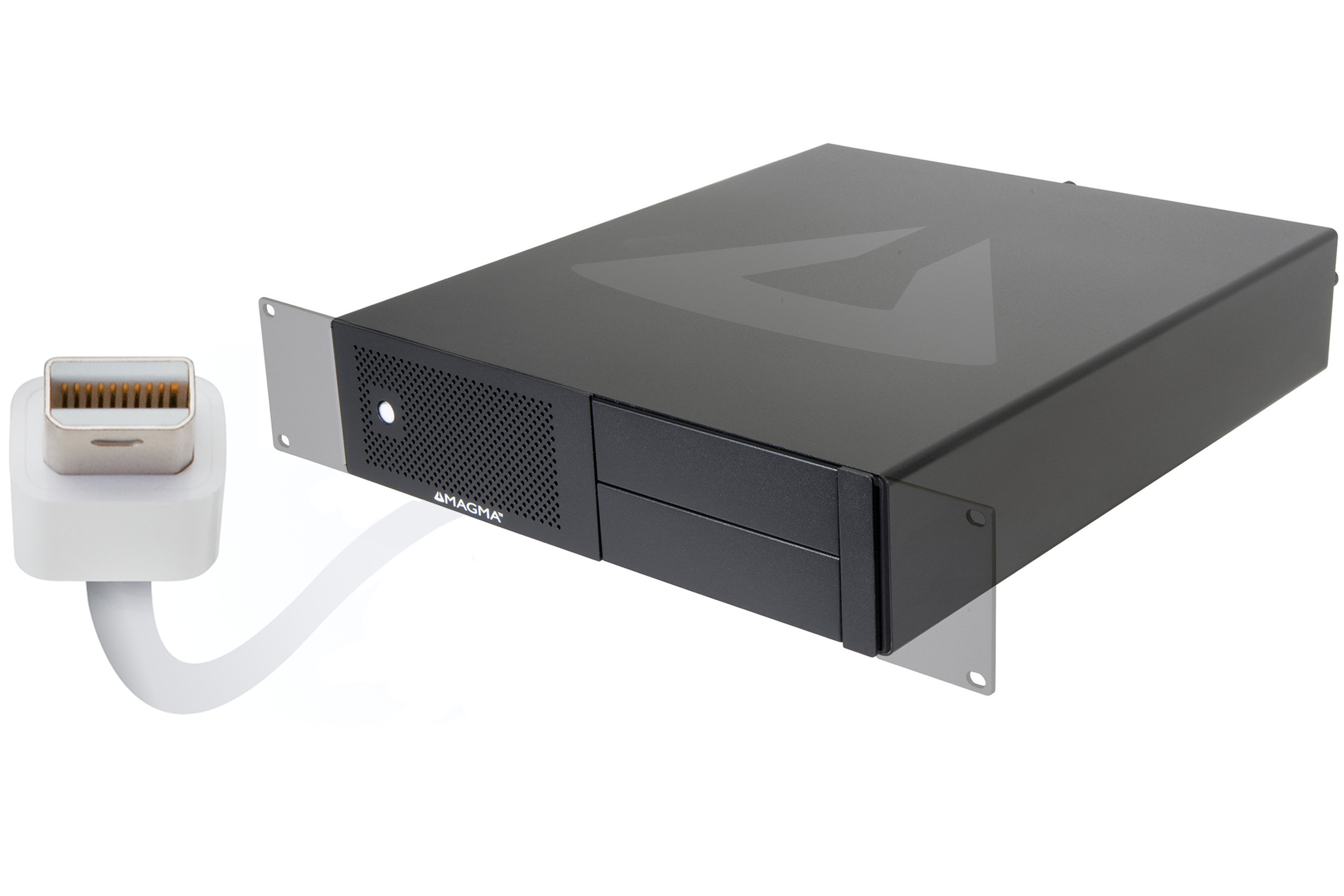

Engineered to Magma’s mission critical standards for performance and reliability, ROBEN-3TX features three (3) full-length, full-height PCIe slots with a robust, high speed backplane. The rack-mountable aluminum chassis was designed for integrated removable storage expansion, providing flexibility with two customer configurable 5.25” expansion bays, a fanless 520-watt power supply, auxiliary power, and features Magma’s exclusive quiet cooling control. From initial concept, the ROBEN-3TX Thunderbolt configuration has been precision engineered to be the “perfect sidekick” for the new Apple Mac Pro and other Apple and PC devices.

Fuel your creative genius by adding a host of specialty PCIe cards to any Thunderbolt 2-equipped computer to achieve expanded performance in every working environment. ROBEN-3TX’s patented performance optimizing backplane seamlessly integrates PCIe expansion, storage, and Thunderbolt 2 connectivity and ensures that all devices installed in the system operate with the maximum possible speed, and minimum potential for data loss. This design gives audio engineers, video producers, game developers, and graphic designers the same level of data fidelity that had previously been reserved for defense and aerospace industry projects.

With the fastest card-to-card communication, integrated high capacity storage, and the largest expansion capacity on the market, ROBEN-3TX sets the bar for high-end Thunderbolt 2-based computing. The ultimate sidekick for all your creative needs.

Magma ROBEN-TX Features:

  • Three (3) available full length/full height expansionslots
  • Tool-less cover removal
  • White power-on indicator front panel light
  • One 80mm 33.4 CFM Expansion Card/Backplane Fan
  • Variable speed thermistor control option (or fullspeed)
  • Thunderbolt speeds up to 20Gbps (2.5GBps)Bi-directional
  • Attach PCIe cards to Thunderbolt 2-enabled computers
  • Extension of PCI Express signals outside the computer
  • Daisy-chain or end-point device
  • Easy Plug and Play installation
  • Use any combination of x1, x4, x8 and x16 PCIe cards
  • Magma’s exclusive quiet cooling control
  • Auxiliary power cables
  • Fanless 520-watt power supply

Magma ROBEN-TX Specifications:

  • Model: ROBEN-3TX  Thunderbolt 2 to PCIeExpansion - 3 Slot
  • Hardware:
    • Backplane: (3) Full Length/Full Height PCI Express Slots*
      • 3 slots x8 PCIe 2.0 electrical; x16 mechanical
    • Cable Required: Thunderbolt (Sold Separately)
    • Interconnect Bandwidth: 20 Gbps Bi-directional
  • Enclosure:
    • Material: Aluminum Chassis
    • Dimensions (LxWxH): 17” x 14.25” x 3.48” (432mm x 363mm x 88.4mm)
  • System Cooling:
    • (1) 80mm 33.4 CFM Expansion Card/Backplane Fan  (1) Variable speed thermistor control option (or full speed)
  • Power Supply:
    • Fanless 520W, 100-240 VAC, 50-60HZ  Auxiliary power cables:
      • (4) 4-pin Molex connectors
      • (2) 6-pin + 2 PCIe connectors
      • (2) PCIe Connectors
  • Environmental:
    • Ambient Temperature: 0º to 50º C
    • Storage Temperature: -40º to 125º C
    • Relative Humidity: 10% to 90% non-condensing
  • Regulatory Compliance:
    • FCC Class A Verified  RoHS Compliant
    • CE Certified
  • Supported Operating Systems:
    • Mac Compatibility: Mac OS X 10.6.8 or higher
    • PC Compatibility: Windows 7, 8
  • Warranty: 30 day money back guarantee 1 year return to factory
