Elation LSF571 60° Light Shaping Filter

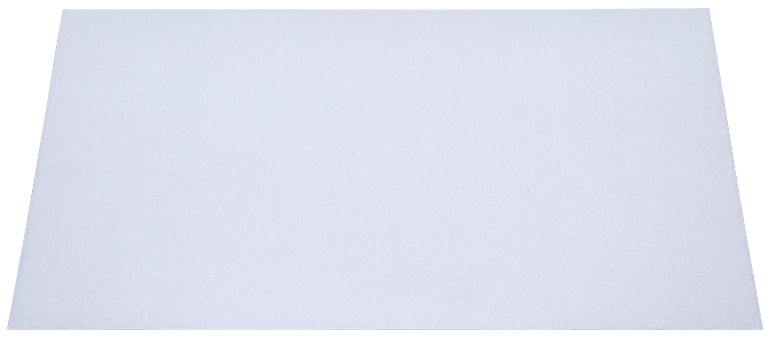

The Elation Pro Lighting LSF571 is a light-shaping filter sheet that measures 20" x 24". It can be cut very easily to accommodate the proper size. It can transmit up to 92 % of the light and can be shaped to the desired effect. Smooth or widen any LED Panel or LED Par. Great for up-lighting or stage lighting. If your beams are too tight, this light-shaping filter will easily handle the task. It's an essential product for use with LED PARs. Add it to your performance and you'll see the difference. Every professional should have this filter in their toolbox.

Please note: this product CANNOT be used with regular PAR cans, it will melt.

These filters from Elation are easy-to-use polycarbonate sheets which you can cut to size to fit over virtually any LED fixture and transmit up to 92% of the light, shaping it to your desired effect. You can smooth or widen out the pattern of any LED Panel or PAR while also improving the field of color, or you can turn your LED PAR into a wall washer. Each sheet measures 20” x 24” (except the 20° version which is 20” x 22”). For increased cost-effectiveness, if outfitting a 6” LED par fixture—for example—16 filters could be cut from a 20” x 24” sheet, making the cost per fixture very affordable.

Features

• Effective Angular Output (source angle + LSF angle)
• Temperature Range: 30°C to 100°C @240 hrs or -40°C to 500°C
• Humidity: >95% ±5% RH @24 hrs
• Transmission Efficiency Circular:
• 0.2° to 20° = 90%, 20° to 80° = 85% / Elliptical: = 85%
• Transmission 400nm to 1600nm
• Spectral Range or 200nm to 1500nm
• Brightness Uniformity = 85%

Specifications

• Light Shaping Filter creates a 60° beam angle
• Sheet size: 20" x 24"
• Mfr. code: LSF60-24
