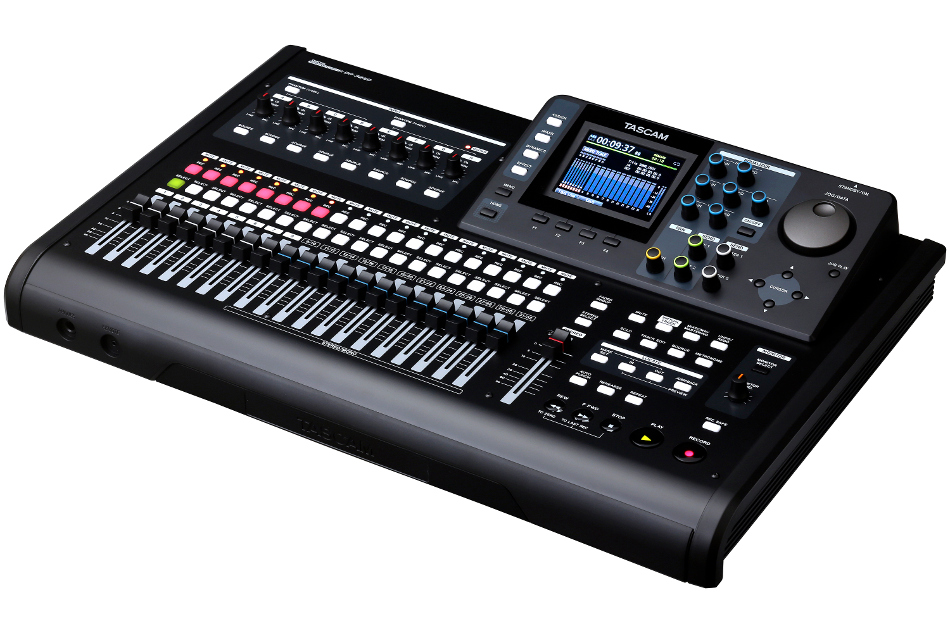

Tascam DP-32SD 32-Track Digital PortaStudio Audio Recorder

OUR PART #: DP-32SD MFR #: DP-32SD

Copied to clipboard

The Tascam DP-32SD Digital Portastudio records an unmatched 32 tracks to solid-state media. ...Read more

Tascam DP-32SD 32-Track Digital PortaStudio Audio Recorder Image 1
Tascam DP-32SD 32-Track Digital PortaStudio Audio Recorder Image 2
Tascam DP-32SD 32-Track Digital PortaStudio Audio Recorder Image 3
VUpGmmg4I4s
2 Videos
Tascam DP-32SD 32-Track Digital PortaStudio Audio Recorder
Our Price: $699.00
List Price: $799.00
You save 13%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Tascam DP-32SD Digital Portastudio records an unmatched 32 tracks to solid-state media. Up to eight tracks can be recorded at a time through its combination XLR and 1/4” combo jacks. Input processing like compression and limiting are available during recording, as well as guitar amp simulation and multi-effects for use with the instrument-level input. A color LCD and channel strip knobs make mixing fast and creative. With its great sound, powerful features and easy operation, the DP-32SD is Tascam’s biggest Portastudio yet.

Tascam DP-32SD Includes:

  • AC adapter
  • 2GB SD card
  • USB cable
  • Warranty card
  • Owner's manual

Tascam DP-32SD Features:

  • Simultaneous 32-track playback
  • 8 mono tracks + 12 mono/stereo selectable tracks
  • Mounted TMSS (TASCAM Multi Stage Sampling rate converter) provides high-quality sampling rate conversion
  • Integrated 40-input mixer to mixdown the 32 playback tracks with the 8 inputs or for bouncing
  • Simultaneous 8-track recording
  • 16- or 24-bit, 44.1 or 48kHz recording
  • 8 XLR / TRS combo connectors
  • Phantom power supply for all inputs
  • High-impedance input available (INPUT-H)
  • Stereo RCA pin-jack output
  • 2 effect send outputs (1/4" TS jack)
  • 70mW / ch headphone amplifier
  • Peak-hold function at a level meter of the LCD
  • Sub-frame editing
  • Remote connector for optional RC-3F footswitch
  • INPUT A-H and each track are equipped with 3-band EQ
  • Automatic punch in/out
  • Various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
  • Undo and Redo function with Undo history
  • 8 dynamics effects
  • Guitar effects
  • Mix-down effects
  • Mastering Effects
  • Track bounce function
  • Virtual tracks(8 virtual track per one track)
  • Locate mark - up to 99 for one song
  • File transferring via USB2.0
  • Chromatic tuner
  • Metronome
  • Dedicated AC adapter included (TASCAM PS-1225L)
  • 8 mono and 12 mono/stereo selectable tracks
  • 21 faders (19 track-faders and one master fader)

Tascam DP-32SD Specifications:

  • Recording Media: SD (512MB – 2GB) / SDHC card (4GB – 32GB)
  • File System: SD card: FAT16 / SDHC card: FAT32
  • Inputs A-H:
    • XLR:
      • Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), Balanced
      • Input Impedance: 2.4kΩ
      • Nominal Input Level: -14dBu
      • Maximum Input Level: +2dBu
    • TRS:
      • Connector: 1/4" (6.3mm) TRS phone-jack, Balanced
      • Input Impedance: 22kΩ or more / 1MΩ (when INPUT H, GUITAR selected)
      • Nominal Input Level: +4dBu
      • Maximum Input Level: +20dBu
    • Stereo Out:
      • Connector: RCA pin-jack, Unbalanced
      • Output Impedance: 200Ω
      • Nominal Output Level: -10dBV
      • Maximum Output Level: +6dBV
    • Effect Sends:
      • Connector: 1/4"(6.3mm) TS phone-jack, Unbalanced
      • Output Impedance: 200Ω
      • Nominal Output Level: -10dBV
      • Maximum Output Level: +6dBV
    • Monitor Out:
      • Connector: 1/4"(6.3mm) TRS phone-jack, Balanced
      • Output Impedance: 200Ω
      • Nominal Output Level: -2dBu
      • Maximum Output Level: +14dBu
    • Phones:
      • Connector: 1/4" (6.3mm) TRS phone-jack
      • Maximum Output Level: 70mW + 70mW (THD+N 0.1% or less, 32Ω loaded)
    • USB:
      • Connector: USB Mini-B type 4-pin
      • Format: USB 2.0 High-Speed mass-storage class
    • Remote:
      • Connector: 2.5mm TRS jack
    • Power: Dedicated AC adapter (TASCAM PS-1225L, included)
    • Power Consumption: 12W (when phantom power supplying)
    • Dimensions (WxHxD): 20.2" x 4.1" x 13.4" (514 x 104 x 340mm)
    • Weight: 13.67lbs. (6.2kg)
    • Operating Temperature: 41° to 95°F (5° to 35°C)
    • Operating System Requirements:
      • Windows:
        • OS: Windows XP, Windows Vista, Windows 7, Windows 8
        • CPU: Pentium 300MHz or more
        • Memory: 128MB or more
        • USB: USB2.0
      • Macintosh:
      • OS: Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5), Mac OS X Snow Leopard (V10.6.8), OS X Lion (V10.7), OS X Mountain Lion (V10.8)
      • CPU: Power PC, iMAC, G3, G4 266MHz or more
      • Memory: 64MB or more
      • USB: USB2.0
    • Audio Performance:
    • Frequency Response: 20Hz - 20kHz (+/-1dB, INPUT to STEREO OUT / EFFECT SENDS / MONITOR OUT)
    • S/N Ratio: 90dB or greater (INPUT to STEREO OUT / EFFECT SENDS / MONITOR OUT)
    • THD: 0.01% or less (INPUT to STEREO OUT / EFFECT SENDS / MONITOR OUT)
