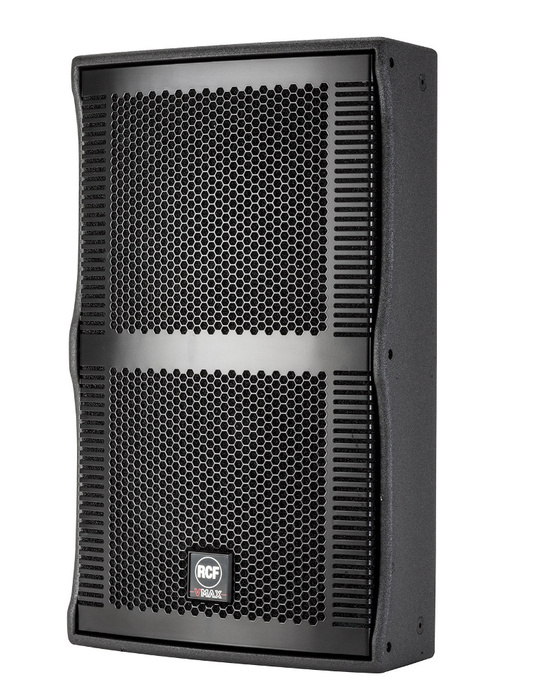

RCF V35
15" 2-Way 3600 Watt Peak Passive Loudspeaker

OUR PART #  VMAX-V35

Our Price: $1,499.00
List Price: $2,149.00
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The RCF V35 is a full range, extremely versatile controlled dispersion two-way loudspeaker system. This offers substantial power and efficiency for a variety of professional applications that include portable systems, primary sound reinforcement, plus permanent installations and supplementary fill for larger systems. The high-frequency section is a constant directivity CMD horn designed mathematically for Constant Matching Design in relation to the woofer system, loaded on a neodymium compression driver with a 3.0” titanium diaphragm assembly for smooth, controlled dispersion. The low-frequency transducer is a high power 15” woofer with a 4.0 ” voice coil.

RCF V35 Features:

  • High power, two-way bass reflex full range system
  • 15" high power, 4" voice coil hypervented woofers
  • 1 x 3" high power titanium neo compression driver
  • 132 dB max SPL
  • 900 Watt RMS
  • Very high output, response down to 40 Hz
  • Birch plywood cabinet
  • Weather resistant, textured, polyurea finish
  • Epoxy powder coated front grille

RCF V35 Specifications:

  • Acoustical Specifications:
    • Frequency Response -10 dB:  40 Hz - 20 kHz
    • Max SPL @ 1m:  132 dB
    • Horizontal Coverage Angle:  90°
    • Vertical Coverage Angle:  40°
    • Directivity Index; Q:  10
    • System Sensitivity:  97 dB
    • Nominal Impedance:  8 Ohms
    • Power Handling:  900 W
    • Peak Power Handling:  3,600 W
    • Recommended Amplifier:  1,800 W
    • Protections:  Bulb lamp dynamic
    • Crossover Frequencies:  1.4 kHz
  • Transducers:
    • Compression Driver: 1.4", 3" Voice coil
    • Nominal Impedance: 8 Ohms
    • Input Power Rating:  110 W AES, 220 W PEAK W AES
    • Sensitivity:  109 dB
    • Woofer:  15", 4" voice coil
    • Nominal Impedance:  8 Ohms
    • Input Power Rating:  900 W AES, 1800 W PEAK W AES
    • Sensitivity:  97 dB
  • Input Section:
    • Input connector: 2 x SPEAKON NL4
  • Cabinet:
    • Cabinet Material:  15mm Birch Plywood
    • Hardware:  Pole mount, 10 x M10
    • Handles:  1 side
    • Pole Mount/Cap:  Yes
    • Grille:  Custom perforated steel grille
    • Color:  Black
  • Physical Specifications:
    • Height:  29.07" (738.5mm)
    • Width:  17.32" (440mm)
    • Depth:  13.78" (350mm)
    • Net Weight:  68.2 lbs (32 kg)

Click to download

RCF V35
15" 2-Way 3600 Watt Peak Passive Loudspeaker

OUR PART #  VMAX-V35

Product Information:

The RCF V35 is a full range, extremely versatile controlled dispersion two-way loudspeaker system. This offers substantial power and efficiency for a variety of professional applications that include portable systems, primary sound reinforcement, plus permanent installations and supplementary fill for larger systems. The high-frequency section is a constant directivity CMD horn designed mathematically for Constant Matching Design in relation to the woofer system, loaded on a neodymium compression driver with a 3.0” titanium diaphragm assembly for smooth, controlled dispersion. The low-frequency transducer is a high power 15” woofer with a 4.0 ” voice coil.

RCF V35 Features:

  • High power, two-way bass reflex full range system
  • 15" high power, 4" voice coil hypervented woofers
  • 1 x 3" high power titanium neo compression driver
  • 132 dB max SPL
  • 900 Watt RMS
  • Very high output, response down to 40 Hz
  • Birch plywood cabinet
  • Weather resistant, textured, polyurea finish
  • Epoxy powder coated front grille

RCF V35 Specifications:

  • Acoustical Specifications:
    • Frequency Response -10 dB:  40 Hz - 20 kHz
    • Max SPL @ 1m:  132 dB
    • Horizontal Coverage Angle:  90°
    • Vertical Coverage Angle:  40°
    • Directivity Index; Q:  10
    • System Sensitivity:  97 dB
    • Nominal Impedance:  8 Ohms
    • Power Handling:  900 W
    • Peak Power Handling:  3,600 W
    • Recommended Amplifier:  1,800 W
    • Protections:  Bulb lamp dynamic
    • Crossover Frequencies:  1.4 kHz
  • Transducers:
    • Compression Driver: 1.4", 3" Voice coil
    • Nominal Impedance: 8 Ohms
    • Input Power Rating:  110 W AES, 220 W PEAK W AES
    • Sensitivity:  109 dB
    • Woofer:  15", 4" voice coil
    • Nominal Impedance:  8 Ohms
    • Input Power Rating:  900 W AES, 1800 W PEAK W AES
    • Sensitivity:  97 dB
  • Input Section:
    • Input connector: 2 x SPEAKON NL4
  • Cabinet:
    • Cabinet Material:  15mm Birch Plywood
    • Hardware:  Pole mount, 10 x M10
    • Handles:  1 side
    • Pole Mount/Cap:  Yes
    • Grille:  Custom perforated steel grille
    • Color:  Black
  • Physical Specifications:
    • Height:  29.07" (738.5mm)
    • Width:  17.32" (440mm)
    • Depth:  13.78" (350mm)
    • Net Weight:  68.2 lbs (32 kg)

Click to download
