Lowell LGR-4427
Open Frame 44RU 27" Deep Gangable Rack Cabinet

OUR PART #:  LGR-4427

The Lowell LGR-4427 gangable rack is UL Listed (Standard 1678) and rated to support up to 3150 lbs. [1429 kg].
Learn More
Our Price: $877.13
List Price: $1,291.52
You save 32%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lowell LGR-4427
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

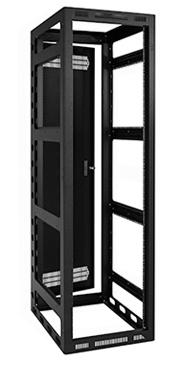

The Lowell LGR-4427 gangable rack is UL Listed (Standard 1678) and rated to support up to 3150 lbs. [1429 kg]. Open frame is welded 16-gauge steel with seamless sideframe construction, 14-ga. steel bottom, and reinforcements at loadbearing junctures for strength equivalent to 11-ga. steel. Each rack frame is beveled front and rear and includes a vented rear door, steel closure panels for top, removeable knockout panels above/below rear door, panel mounting hardware, and two pair of adjustable rack rails. Finish is black wrinkle powder epoxy.

Lowell LGR-4427 Features:

  • Front:  Open front has vents top and bottom for passive ventilation and will accept optional surface-mount front door.
  • Rear:  Includes recessed, locking rear door vented at top and bottom and removable knockout panels above and below rear door. Rack can also be purchased without a rear door.
  • Top:  Open top has 6 inch [152mm] deep rear conduit plane with knockouts for conduit—three 2.0–1.0 inch [51-25mm], two 1.5–1.0 inch [38–25mm], plus room to use a Greenlee-style punch for 4 inch [102mm] conduit. Top also features four 0.5 inch [13mm] knockouts for BNC style wireless antennas. Two flush solid steel panels (3U and 7U) are included to close the 10U opening. Solid panels can be replaced with optional fan panels. Integral rails tapped 10-32.
  • Bottom:  14-gauge steel bottom with full-size opening accommodates large cable bundles. Vertical array of 2 inch [51mm] holes and 4 x 1.5 inch [102 x 38mm] openings front-to-rear along rack bottom assist cabling between racks. Includes grounding stud, provisions for optional leg levelers (order separately), and holes for optional anchor bolts (by others). Will also accept an optional stationary or mobile platform base (order separately).
  • Adjustable Rails:  Includes two-pair rails tapped 10-32 and printed with a rack unit scale to aid set-up. Clearance from rails to flush outside of frame is 1.75 inches [45mm], 2.5 inches [64mm] from rail to inside of optional surface-mount front door.
  • EIA/TIA compliant
  • Made in the USA with 100% certified U.S. steel
