Gepco SV253SR-BY-THE-FOOT 25 AWG Solid, Coax Mini, Component Video, Black, Priced by the Foot

OUR PART #: SV253SR-BY-THE-FOOT

Copied to clipboard

The visual image is the core of any video system. ...Read more

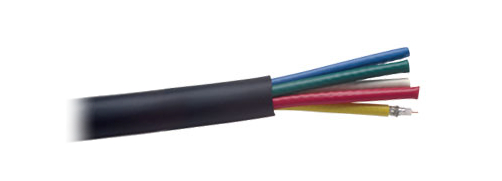

Gepco SV253SR-BY-THE-FOOT 25 AWG Solid, Coax Mini, Component Video, Black, Priced By The Foot Image 1
Gepco SV253SR-BY-THE-FOOT 25 AWG Solid, Coax Mini, Component Video, Black, Priced By The Foot
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The visual image is the core of any video system. Modern high resolution and High Definition video formats now demand an even greater degree of quality and bandwidth from the cable interconnect system. To bring a higher level of performance to commercial video applications, SheerWire™ by Gepco® video cables are made using the same techniques and materials used in professional, studio-grade video coax. Every SheerWire video cable is built to exacting electrical and mechanical specifications then comprehensively tested and verified. As a result, the video image is transmitted with minimal loss or errors, delivering exceptionally true and clear images. Through precision, SheerWire video cables deliver your clearest vision.

This 25-gauge coax mini cable (Full Compass #: SV253SR-BY-THE-FOOT) is black in color and is priced by the foot.

Gepco SV253SR-BY-THE-FOOT Features:

  • CMR - 3.0 GHz Bandwidth
  • Compliances:
    • UL Subject 444 and NEC Article 800
    • Type CMR
    • Packaging: 500 ft. or 1000 ft. Reels
    • Jacket Color: CMR (Riser) - Black

Gepco SV253SR-BY-THE-FOOT Specifications:

  • Product Construction:
    • Conductor: Copper per ASTM B-3
    • Insulation:
      • Gas-injected Foam Polyethylene(FPE)
      • Foam Fluoropolymer (FFEP)
    • Shield:
      • 100% Foil Shield
      • 95% TinnedCopper Braid or 95% Tinned Copper Spiral Serve
    • Jacket: Premium Grade PVC for CMR
    • Nominal O.D.: 0.115 in / 2.92 mm
    • Nominal Capacitance:
      • 17 PF/FT
      • 55.76PF/M
    • Applications: Component RGB
