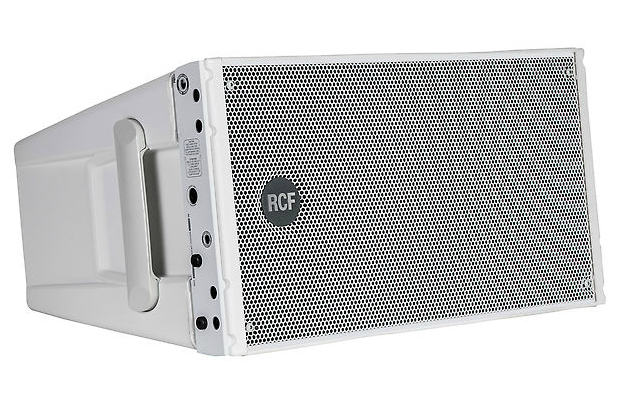

RCF HDL 10-A-W Dual 8" Active Coaxial Line Array Module, 700W, White

The very compact size, no compromise transducers and a unique composite cabinet design make the RCF HDL 10-A-W the perfect tool in many situations, and is ideal in live sound reinforcement and reliable installed situations.

The HDL 10-A-W is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2-way digital amplifier, sound is processed from a powerful DSP.

RCF HDL 10-A-W Applications:

• Live Sound
• Rentals
• Portable PA, clubs, ballrooms, live theatre
• House of worship
• Theme parks
• Music playback and sound reinforcement in small and mid-size venues
• Corporate A/V professionals and sound system hire companies

RCF HDL 10-A-W Features:

• 1400 Watt Peak power - 700 Watt RMS
• 133 dB max SPL
• 65 Hz 20 kHz frequency response
• 2 x 8" Woofers
• 1 x 2" Compression Driver
• DSP controlled Input section with selectable presets
• Tour grade safe and solid variable mechanics
• Composite PP enclosure structurally wooden reinforced

RCF HDL 10-A-W Specifications:

• Frequency Response -3 dB: 65 Hz - 20 kHz
• Max SPL: 133 dB
• Horizontal Coverage Angle: 100°
• Vertical Coverage Angle: 15°
• Compression Driver: 2", 2.5" v.c.
• Woofer: 2 x 8", 2.0" v.c.
• Input/Output Section:
  • Input Signal: Bal/unbal
  • Input Connectors: XLR
  • Output Connectors: XLR
  • Input Sensitivity: -2 dBu / +4 dBu
• Processor Section:
  • Crossover Frequencies: 800 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft limiter
  • Controls: Cluster, HF, High curving, Indoor
• Amplifier Specifications:
  • Total Power: 1400 W PEAK
    • High Frequencies: 400 W PEAK
    • Low Frequencies: 1000 W PEAK
  • Total Power: 700 W RMS
    • High Frequencies: 200 W RMS
    • Low Frequencies: 500 W RMS
  • Cooling: Convection
  • Connections: PowerCON In/Out
• Cabinet:
  • Cabinet Material: Composite PP, wooden reinforced
  • Hardware: Rigging flyware
  • Handles: 2 side
  • Color: White
• Physical Specifications:
  • Height: 11.5" (294mm)
  • Width: 22.40" (569mm)
  • Depth: 17.09" (434mm)
  • Net Weight: 55.99 lbs (25.4 kg)

Note

NOTE: Images shown above are for illustrative purposes only; actual product will come in White. For more information on this and other products, contact your Sales Representative.
