RCF Evox 5
800 Watt Peak Active Portable Line Array System with 10" Subwoofer

OUR PART #  EVOX-5-SYSTEM

Our Price: $999.00
List Price: $1,399.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

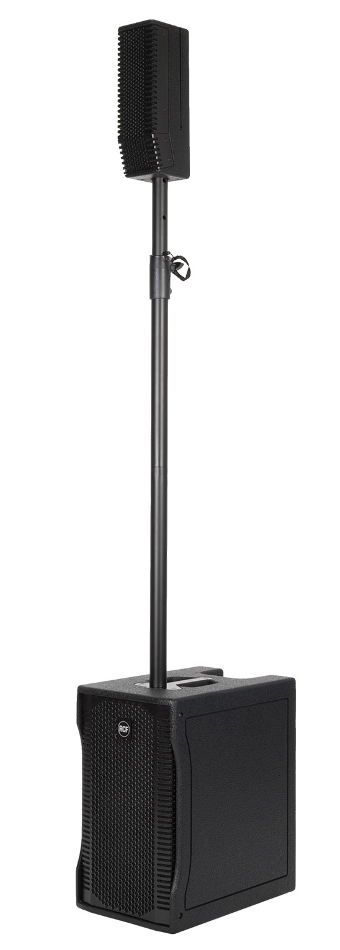

RCF's Evox 5 is a portable compact size sound reinforcement system. Evox 5 combines the quality and reliability of RCF transducers with a very high amplification power. The system features five 2.0” full range transducers in the line source satellite and a deep sounding 10” woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make Evox 5 the perfect tool for presentations, corporate events and congresses.

EVOX array design features constant horizontal directivity coverage of 120°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array.

EVOX systems are driven from high power class D amplifiers. Each system features a real two way amplifiers with DSP controlled crossover. With careful crossover design and protections setting has been possible to reach pressures up to 6 dB more than traditional products with passive crossovers to satellites.

DSP Processing
The EVOX 5 / EVOX 8 is powered by a 800W/1400W peak power digital amplifier, split 200W/400W for the HF and 600W/1000W for the LF. Thanks to the frequency dependent drivers excursion and control of distortion, our processing is capable to guarantee an incredible and unmatchable output from this small systems. A dedicated vocal processing has been specifically studied for speech reproduction during presentations or conferences.

Portability
With 3 simple steps, the EVOX system is all set and ready to play! EVOX system is designed to be easily transported and quick to set up. Top, Sub, pole mount and cables all come in one package and all go in the dedicated optional transportation bag.

Step 1:  Transportation - During transportation, the top column islocated in a special socket in the back side of the Sub. A specificallydesigned rail on the sub will guide you during the insertion and extraction ofthe top column.

Step 2:  Mounting - The top column will be inserted on the pole mount,which can be easily screwed on the Sub top side and the pole mount can beseparated in two single parts in order to place it on the transportationbag.

Step 3:  PLAY!

RCF Evox 5 Features:

  • 800 Watts Peak
  • 125 dB max SPL
  • 45 Hz - 20 kHz frequency response
  • 10" Woofer, 2.0" v.c.
  • 5 x 2" Ultra compact fullrange, 1.0 v.c.
  • 120° x 30° slightly tilted pattern control
  • Innovative DSP processing
  • Pole mountable, easy set-up and transportation

RCF Evox 5 Specifications:

  • Acoustical Specifications:
    • Frequency Response -3 dB:  45 Hz - 20 Hz
    • Max SPL:  125 dB
    • Horizontal Coverage Angle:  120°
    • Vertical Coverage Angle:  30°
    • Full-Range:  5 x 2", 1.0" v.c.
    • Woofer:  10", 2.0" v.c.
  • Input/Output Section:
    • Input Connectors:  Jack-XLR male
    • Output Connectors:  XLR female
    • Input Sensitivity:  -2 dBu / + 4 dBu
  • Processor Section:
    • Crossover Frequencies:  220 Hz
    • Protections:  thermal, rms
    • Limiter:  Soft limiter
    • Controls:  Volume, EQ, phase, xover
  • Amplifier Specifications:
    • Total Power:  800 W PEAK
      • High Frequencies:  200 W PEAK
      • Low Frequencies:  600 W PEAK
    • Total Power:  400 W RMS
      • High Frequencies:  100 W RMS
      • Low Frequencies:  300 W RMS
    • Cooling:  Convection
    • Connections:  VDE connector
  • Cabinet:
    • Cabinet Material:  Baltic birch plywood
    • Hardware:  2 x M6
    • Handles:  1 top
    • Pole Mount/Cap:  Yes
    • Color:  Black
  • Physical Specifications:
    • Dimensions (HxWxD): 19.29" x 11.34" x 16.81" (490 mm x 288 mm x 427 mm)
    • Net Weight:  42.32 lbs. (19.2 kg)
