Product Overview

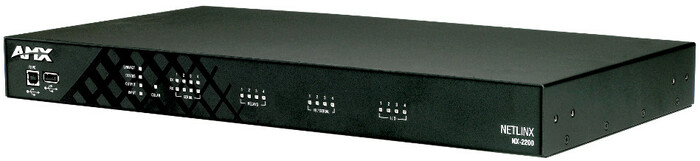

The AMX NX-2200 is a NetLinx® integrated room controller. It provides a scalable platform for the future by combining high performance, backward compatibility, and extensive network security features.
The next generation NetLinx Integrated Controller Family, the NX Series, provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-2200 is ideal for control and automation of medium-sized rooms and multi-room applications.
Common Application:
The NX-2200 is a good fit for medium-sized conference rooms or classrooms, as well as multi-room applications in home theaters, whole homes, hotel rooms and other environments.
AMX NX-2200 Features:
- Hardware / Software Built for 24/7/365 Operation - Provides outstanding reliability and improved diagnostics
- IPv6 and wired 802.1x - Supports modern networking standards
- Dual NIC - Enables two discrete network interfaces for unrivaled security
- High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) - Easily scalable to support a wide range of applications for today and tomorrow
- Full Line Compatible (Backwards and Cross-Compatibility) - Standardized port numbers and new configuration import/export tools mean fewer coding changes
- Enhanced Diagnostics On Serial and IR Ports - Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
- File Import / Export From USB Drive - Backup and restore configuration and program data and update firmware from a standard USB flash drive
Additional Features
- Ultra-Fast 1600 MIPS processor
- 512 MB Onboard RAM
- 1 M Non-Volatile Memory
- 8 GB SDHC FLASH Memory
- 1 RU
- 1 AXLink Interface
- 1 10/100 LAN Interface
- 4 Digital I/O Ports
- 1 RS232/422/485 Port
- 3 RS232-Only Ports
- 4 IR/Serial Output Ports
- 4 Relay Ports
AMX NX-2200 Specifications:
- Physical
- Dimensions (HWD): 1 3/4” x 17” x 9 1/8” (44.86 mm x 431.80 mm x 231.65 mm)
- Weight: 6.08 lb. (2.758 Kg)
- Active Power Requirements
- Voltage, DC (Typical): 12 VDC
- DC Current Draw: 250 mA @ 12 VDC
- Voltage DC Range: 9 - 18 VDC
- Power Connector: 3.5mm Phoenix with retaining screws
- Power Consumption
- Active Power Consumption: 4.2 W
- Environmental
- Temperature (Operating): 32° F to 122° F (0° C to 50° C)
- Temperature (Storage): 14° F to 140° F (-10° C to 60°C)
- Humidity (Operating): 5% to 85% RH
- Heat Dissipation (Typical): 14.3 BTU/hr
- Onboard Master
- Processor: 1600 MIPSM
- Program Port: (1) USB Standard B
- Configuration Dip Switch: 4-position
- Status Indicator: Status LED (green) blinks to indicate that the system is programmed and communicating properly
- Input Indicator: Input LED (yellow) blinks to indicate that the Controller is receiving data
- Output Indicator: Output LED (red) blinks to indicate that the Controller is transmitting data
- ID Pushbutton: Black ID pushbutton for setting IP mode and reverting to default configuration and firmware
- USB Host Port: (2) USB Standard A, one on front and one one back, USB Host port supports Solid State drive for upgrading firmware, loading code files, copying configuration data and remote storage
- Memory
- NVRAM: 1 MB
- Memory Card: 8 GB SD
- DDRAM: 512 MB
- Note: Supports external USB Solid State Drives
- Ethernet
- Connection: (1) RJ-45
- Description: 10/100 Port RJ-45 connector provides TCP/IP communication. Auto MDI/MDI-X enabled. Supports IPv4 and IPv6 networks. Supports HTTP, HTTPS, Telnet, FTP
- Link/Act Indicator: Link/Activity LED (green) blinks when receiving Ethernet data packets, one on Ethernet RJ-45 connector and one on the front panel
- Speed Indicator: Speed LED (yellow) lights On when the connection speed is 100 Mbps Ethernet connection and turns OFF when the speed is 10 Mbps
- ICSLan
- ICSLan Connection: (1) RJ-45, 10/100 Port RJ-45 connector. Auto MDI/MDI-X enabled. Supports IPv4 and IPv6 networks. Supports HTTP, HTTPS, Telnet, FTP
- ICSLan Link/Active Indicator: ICSLan LED (green) blinks when receiving Ethernet data packets, one on Ethernet RJ-45 connector and one on the front panel
- ICSLan Speed Indicator: Speed LED (yellow) lights On when the connection speed is 100 Mbps Ethernet connection and turns OFF when the speed is 10 Mbps
- Control Ports & Indicators
- AxLink Port: (1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
- AxLink Indicator: (1) AxLink LED (green) indicates the state of the AxLink port
- RS-232/422/485 Port:
- (1) 10-position 3.5mm Screw Terminal
- NetLinx Port 1
- XON/XOFF (transmit on / transmit off)
- CTS/RTS (clear to send/ready to send)
- 300 - 115,200 baud
- RS-232 Port:
- (3) 2-position 3.5mm Screw Terminal
- NetLinx Ports 2-4
- XON/XOFF (transmit on / transmit off)
- CTS/RTS (clear to send/ready to send)
- 300 - 115,200 baud
- Serial Indicator: (4) sets of LEDs (red/yellow) indicate when serial Ports 1-4 are transmitting and receiving data
- IR/Serial:
- (4) 2-position 3.5mm Screw Terminal
- 4 IR Transmit / 1-way Serial ports
- NetLinx Ports 11-14
- Support high-frequency carriers up to 1.142 MHz
- 4 IR/Serial data signals can be generated simultaneously
- IR/Serial Indicators: (2) LEDs (red) indicate when each of the IR/Serial ports (11-14) are transmitting control data
- I/O Channels:
- (4) One 6-position 3.5mm Screw Terminal
- 4-channel binary I/O port for contact closure with each input being capable of voltage sensing
- NetLinx Port 22
- Channels 1-4
- I/O Indicator: (4) LEDs (yellow) indicate each of the I/O channels (1-4) are active
- Relays:
- (4) One 8-position 3.5 mm Screw Terminal, (4) single-pole, single-throw relays
- NetLinx Port 21
- Channels 1-4
- Each relay can switch up to 24 VDC or 28 VAC @ 1 A
- Each relay is independently controlled
- Relay Indicators: (4) LEDs (red) indicate when each of the relay channels (1-4) are active (closed)
- General
- Enclosure: Metal with black matte finish
- Regulatory Compliance:
- FCC CFR Title 47 Part 15
- CE EN 55022
- CE EN 55024
- CE EN 60950-1
- IEC 60950-1
- UL 60950-1
- C-Tick CISPR 22
- IC CISPR 22
- VCCI CISPR 22
- RoHS
- WEEE
- Included Accessories:
- 2-pin 3.5 mm mini-Phoenix (female) PWR connector (41-0002-SA)
- 4-pin 3.5 mm mini-Phoenix (female) AxLink connector (41-5047)
- 10-pin 3.5mm mini-Phoenix female RS232/422/485 connectors (41-5107)
- (3) 5-pin 3.5mm mini-Phoenix female RS232 connectors (41-0336)
- 6-pin 3.5 mm mini-Phoenix female I/O connector (41-5063)
- 8-pin 3.5 mm mini-Phoenix female Relay connector (41-5083)
- (2) CC-NIRC IR Emitters
- Removable Rack Ears
- Optional Accessories:
- PSN6.5, 6.5 A Power Supply (FG423-41)
- PSR4.4, 13.5 VDC, 4.4 A Power Supply with 3.5 mm Phoenix Connector with Retention Screws (FG423-46)
- PSN4.4, Power Supply, 4.4 A, 3.5 mm Phoenix, 13.5 VDC (Discontinued) (FG423-45)
- CC-USB-NI, USB Programming Cable (FG10-2105)
- CC-NIRC, IR Cables (FG10-000-11)
- CC-NET, Cat5 Ethernet Cable (FG10-051-10)
- CBL-ETH-FL, Ethernet Cat5e Flat Cable (FG10-2182-16)
- EXB-IRS4, ICSLan IR/S Interface, 4 IR/S and 4 Inputs (FG2100-23)
- EXB-COM2, ICSLan Serial Interface, 2 Ports (FG2100-22)
- EXB-REL8, ICSLan Relay Interface, 8 Channels (FG2100-20)
- EXB-I/O8, ICSLan Input/Output Interface, 8 Channels (FG2100-21)
- EXB-MP1, ICSLan Multi-Port, 1 COM, 1 IR/S, 2 I/O, 1 IR RX (FG2100-26)
