Bogen Communications Orator 1
Wireless IR PA System with 1 microphone


The Bogen Orator is a two-channel, infrared (IR) wireless microphone/transmitter and mixer-amplifier system designed to enhance a presenter's voice in all areas of the room.
Learn More
Our Price: $943.05
List Price: $1,821.20
You save 48%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Bogen Communications Orator 1
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Bogen Orator is a two-channel, infrared (IR) wireless microphone/transmitter and mixer-amplifier system designed to enhance a presenter's voice in all areas of the room. The Orator uses infrared technology, eliminating the interference and crosstalk from adjacent rooms that occurs in RF-based wireless products.

The rugged, wireless, IR MIC/Transmitter (OMX1) can be used as a handheld microphone, worn as a pendant microphone around the neck, or clipped to a pocket or belt as a body-pack (with an external lavaliere microphone). In addition to using the MIC/Transmitter for live voice, a mini-jack AUX input is provided to allow other audio sources to be transmitted wirelessly for the ultimate in connection
convenience. The MIC/Transmitter includes a rechargeable Lithium-Ion battery.

The Orator Receiver/Base (ORB35) unit contains a two-channel wireless IR receiver and a 35W mixer/ amplifier with four AUX inputs plus a Priority Paging input compatible with line-level as well as speakerlevel signals. The priority page input will mute all AUX inputs. Front-mounted Bass and Treble controls and a rear-mounted 6-band graphic EQ provide 8 bands of frequency shaping. A boost and subwoofer signal level output complete the audio package.

Built into the front of the unit are two charging docks for the MIC/Transmitter units. In addition to battery charging, the docks provide a storage location for the MIC/Transmitters with space below to stow accessories such as lanyards or lavaliere microphones. A transparent rotating front cover provides a measure of protection for controls and equipment. The cover can be locked in the closed position to provide protection from casual tampering. The front cover can also be locked in the open position for installations where the cover may interfere with rack doors or is otherwise undesired.

A remotely mountable IR sensor is provided for detection of the IR signals. This can be positioned for optimum reception in any room, and may be augmented with an additional sensor if needed.

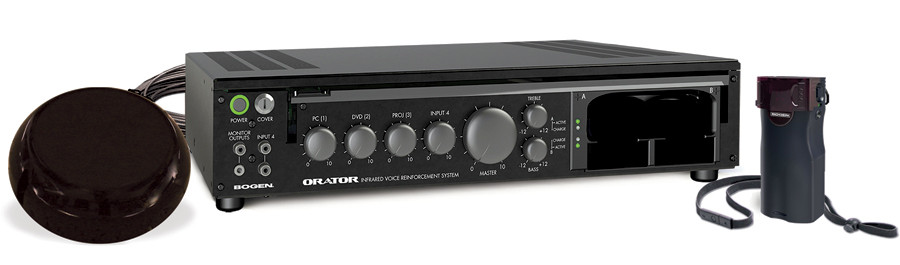

Bogen Communications Orator 1 Includes:

  • 1- ORB35 Receiver/Base Unit: with built-in 35W amplifier
  • 1- OMX1 Microphone/Transmitter
  • 1- ORS Infrared Sensor Unit
  • 1- Infrared Sensor Cable: (15m)
  • 2- Security Cover Keys
  • 1- Adjustable Lanyard for MIC/Transmitter
  • 1- Rechargeable Lithium Battery for MIC/Transmitter

Bogen Communications Orator 1 Features:

  • Receiver/Base Unit (ORB35):
    • 7-Input mixer/amplifier includes 4 AUX inputs, 1 priority paging (25V/70V/Line), and 2 MIC/Transmitter inputs
    • Dual front-mounted charging docks for MIC/Transmitters
    • Amplifier output power: 35W
    • Master Volume, plus separate volume controls for each input
    • 8-band EQ: front-mounted bass and treble controls, plus 6-band rear-mounted graphic EQ
    • Speaker output impedances: 70V, 25V, or 8-ohms
    • Output feeds: booster amp, subwoofer
    • Front-mounted AUX input
    • Front-mounted system output (for assistive listening devices, recording, etc.)
    • Page input with VOX-triggered priority override function
    • Rotating, lockable front cover for tamper protection and secure storage of the MIC/Transmitters (2 Keys provided)
    • Confirmation Tone with Volume Control (defeatable)
  • IR Sensor (ORS):
    • Remotely mounted sensor connects using standard coaxial cable
    • Add additional sensors to improve reception in trouble spots
    • Coaxial Cable connector
    • Plenum-Rated Cable assembly available (accessory; sold separately)
  • Surface or T-Bracket mounting MIC/Transmitter (OMX1)
    • Can be used as a handheld microphone, as well as worn on a lanyard around the neck, or as a body-pack with external microphone
    • Built-in microphone with recessed volume control
    • Optimally sized for handheld and pendant use
    • Sculpted Comfort Grip for easy handling
    • Adjustable lanyard with break-away clasp for neck-worn applications
    • Rugged, reliable, spring-wire belt clip
    • Use built-in microphone or external microphone (according to user preference)
    • AUX input for wireless connection of audio sources (computers, MP3 players, etc.)
    • Recharges when placed in Receiver/Base Unit for storage
    • Rechargeable, high-capacity Li-ion battery is included
    • Comprehensive Battery/Status Indicator
    • Mute other MIC/Transmitter in the room via function button (defeatable)
    • Initiate intercom call via function button (defeatable)
    • Selection Tab ensures each MIC/Transmitter will only store/recharge in its designated charging dock
    • ID Label Strip to identify each MIC/Transmitter
    • Battery Charge Status Indicator
    • Local Microphone Mute
    • ON/OFF Power Button

Bogen Communications Orator 1 Specifications:

ORB35 Receiver/Base Unit

  • Communication Method: Infrared Frequency Modulated
  • Output Power Rating: 35W
  • Output Speaker Impedance: Balanced or unbalanced 8-ohms, 25V, 70V
  • Receiving Channels: Two independent channels
  • Carrier Frequency: 4 operational frequencies between 1.8 – 2.7 MHz
  • Selectable as two bands: 1.8/2.4 MHz or 2.1/2.7 MHz
  • Range (line-of-sight): Up to 40 ft.
  • Audio Frequency Response: 60 Hz to 20 kHz AUX inputs, 100 Hz to 10 kHz Channel A & B
  • S/N Ratio: > 70 dB AUX/Page inputs; > 60 dB Channel A & B
  • Distortion: < 1% AUX inputs, < 3% Channel A & B
  • Input Sensitivity: ORB35: AUX: 85mV; Priority Page: 150mV or 25/70V
  • Input Impedance: ORB35: AUX: >10k ohms; Priority Page: 1k ohms (min.)
  • Controls:
    • Front-Mounted: AUX 1 – 4 Level, Master Volume, Bass and Treble
    • Rear-Mounted: Channel A & B Level, Page Override Level, 6 bands of EQ, Confirmation Tone Level
  • Audio Inputs:
    • Front-Mounted: AUX 4 (Stereo combining RCA jacks)
    • Rear-Mounted: AUX 1 – AUX 4 (Stereo combining RCA jacks); Page Override (pluggable terminal strip)
  • Audio Outputs:
    • Front-Mounted: Monitor Out (RCA jack and 1/8" Mini)
    • Rear-Mounted: Booster Out and Subwoofer Out (RCA jacks); Speaker connections (pluggable terminal strip)
  • Switches:
    • Front-Mounted: Power
    • Rear-Mounted: EQ In/Out, 8-position DIP switch (configuration)
  • Other Connectors:
    • Rear-Mounted: Sensor input (F-type Connector)
    • Rear-Mounted: C-form relay contact set (pluggable terminal strip)
  • EQ:
    • Bass and Treble controls (± 12 dB at 100 Hz and 10 kHz, respectively);
    • 6-Band Graphic EQ (± 12 dB at 250, 500, 1k, 2k, 4k, and 8k Hz)
  • Indicators: Power; 2 Channel Active (one for each channel), 2 Charging (one for each dock)
  • Chargers: Two front-mounted with lockable rotating cover
  • Locks: Rotating cover; lock/unlock in both open or closed positions
  • Power Requirements: 120V AC, 1A
  • Dimensions: 17.25" W × 3.5" H × 12.5" D
  • Product Weight: 17 lb.
  • Safety Certifications: Listed to UL Standard 60065 for US and Canada
  • OMX1 MIC/Transmitter

    Carrier Frequency: 4 operational frequencies between 1.8 – 2.7 MHz
  • Audio Input:
    • Built-in Condenser Microphone
    • MIC (external): Condenser only, mono 1/8” mini plug, 2V DC through 680 ohms, 1mV sensitivity min. 10 mV max;
    • AUX: Stereo or mono 1/8” mini plug, 3k O (min.) input, 250 mV sensitivity
  • Controls: On/Off Switch, Input Volume Control, 2 function buttons
  • Connectors:
    • MIC (external): mono 1/8” mini style
    • AUX: stereo or mono 1/8” mini style
  • Batteries: Li-ion, Rechargeable, Bogen P/N 45-7543-05
  • Operational Time: 10-15 hours (approx.), depending on transmit frequency
  • Dimensions: 1.9" W x 4" H x 1.2" D
  • Product Weight: 4 oz. with battery (approx.)
