Product Overview
The Christie® DHD951-Q is one of their Q Series projectors that takes to a new level brilliance and high-brightness to bring you one of the industry’s highest-quality 1-chip DLP® projectors. Deliver your presentations and video content clearly with image quality that you would expect from Christie. With a range of projection options, sleek overall style and high-performance features, the Christie Q Series brings you superior image processing, versatility and affordability. Models available in black or white and multiple lens options to choose from for your application.
Christie DHD951-Q Features:
- Clarity for enhanced image processing
- High Dynamic Contrast Range (HDCR) for improved visual contrast
- Built-in dual-color wheel for easy switching between high brightness or ultra-rich color reproduction
- Advanced image control that improves viewing of video content and fast-moving motion graphics
- Blending or warping capabilities
- Broad variety of lensing options
- Portrait mode and 360 degreeprojection
- Enhanced lamp options
- Digital Imaging and Communication in Medical (DICOM) simulation
- Built-in LCD information display
- HDBaseT connectivity
- Energy-saving features
- Low maintenance costs
- High performance features
Christie DHD951-Q Specifications:
- Image:
- Brightness: 8,500 center (8,200 ANSI) lumens
- Contrast: 2500:1 full on, full off
- Uniformity: =90%
- Display:
- Type: 1-chip 0.65" DMD
- Native Resolution: 1920 x 1080 HD
- Lamp:
- Life:
- Up to 2000 hours in standard mode
- Up to 4000 hours in eco mode
- Up to 500 hours in portrait mode
- Input:
- Standard:
- Computer D-sub 15 pin mini jack x1
- 3G-SDI x1
- BNC connector x1 (composite)
- HDMI connector x2
- DVI-D connector x1
- RJ-45 x1 (HD Base-T)
- D-sub 9 pin x1 (RS232c)
- RJ-45 x1 (LAN)
- USB type A connector x1 (optional wireless USB or PC-less)
- Wired remote control (3.5mm)
- Signals:
- 525i(480i)
- 525p(480p)
- 625i(576i)
- 1125i(1080i @ 50/60)
- 750p(720p @ 50/60)
- 1125p(1080p @ 50/60)
- Pixel Clock:
- 27MHz~150MHz
- Output:
- Standard:
- Computer out D-sub 15 pin mini jack x1
- Wired remote control (3.5mm)
- Control & Networking:
- RJ-45 x1 (LAN)
- RJ-45 x1 (HD Base-T)
- D-sub 9 pin x1 (RS232c)
- Accessories:
- Standard:
- Power cord (US cord, 3m) / (Euro cord, 3m)
- Power cord (China cord, 3m Only For China Models)
- RGB cable (2m)
- Wireless remote control / AA" batteries x2
- Adapter cover
- Ferrite core and band x2
- Cable tie x2
- User's manual
- User’s manual CD x1:
- Safety guide
- Quick setup guide
- Network quick setup guide
- Operating guide
- Network guide
- Instant stack guide
- Technical guide
- Software license agreement
- Optional:
- Replacement lamp - P/N 003-004774-XX
- Replacement hybrid filter - P/N 003-004775-XX
- Optional wireless dongle (USB) - P/N 121-116109-XX
- Power requirements (Dual lampmode):
- Operating Voltage:
- Current Rating:
- 10.5A +10% or less at 110V-120V AC
- 5.2A+10% or less at 220V-240V AC
- Power Consumption:
- AC110 - 120V, 50/60Hz 1060W
- AC220 - 240V, 50/60Hz 990W
- Less than 0.5W @ standby with saving.
- (AC230V): Saving mode disables MONITOR OUT, AUDIO OUT, speaker sound, LAN communication and RS232C control except power ON command in standby
- Thermal Dissipation:
- 3618BTU(110-120V)
- 3379BTU(220-240V)
- Replacement remote
- Dimensions:
- Dimensions (LxWxH) (without lens and feet in min. position):
- 463 (L) x537(W) x 174 (H) mm
- 18.2 (L) x 21.1(W) x 6.9 (H) in.
- Net Weight (without lens):
- Shipping Dimensions:
- 561 (L) x 743 (W) x 315 (H) mm
- 22.1 (L) x 29.3 (W) x 12.4 (H) ins
- Shipping Weight:
- Operating Environment:
- Noise:
- Standard mode: 36 dBA / 29 dBA Eco mode
- Temperature:
- 32-113°F (0-45°C) from sea level to 1600m (5249 feet)
- 32-104°F (0-40°C) from 1600m (5249 feet) to 3048m (10000 feet)
- Altitude:
- 0 to 10000 feet (0 to 3048m)
- Humidity:
- 10-80% non-condensing
Note:

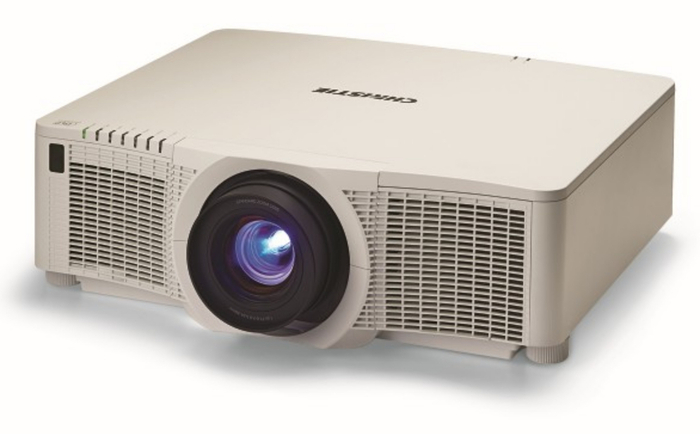

Product shown in image is for illustrative purposes only. Actual product comes without lens.
