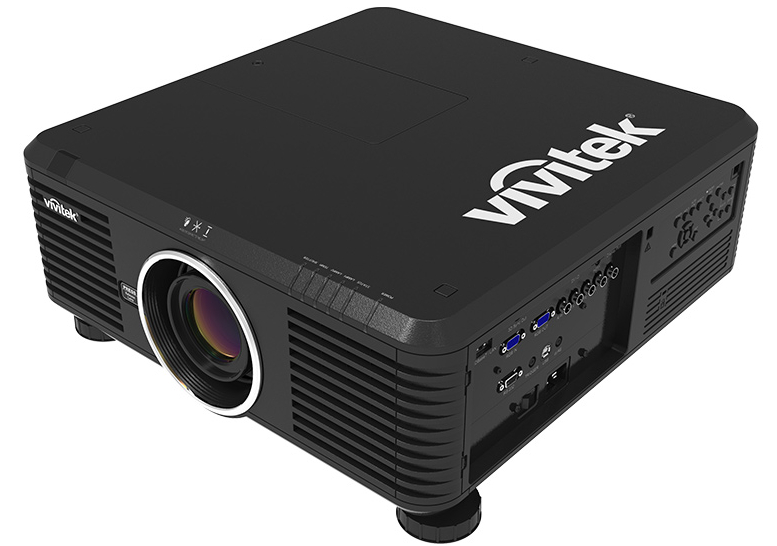

Vivitek DX6831
8000 Lumens XGA DLP Large Venue Projector without Lens

OUR PART #:  DX6831

The ideal solution for diverse large-venue applications, the Vivitek DX6831 features native XGA resolution, DLP®/BrilliantColor™, dual-lamp technologies, and HDBaseT.
Learn More
Vivitek DX6831 - Elevated Right Angled View
Vivitek DX6831 - Front View
Vivitek DX6831 - Left Angled View

Click a thumbnail to see more images. (6 total)

Sale Price: $3,685.50
List Price: $9,100.00
You save 60%!
Write the first review.
Vivitek DX6831
In Stock
Similar Products

The ideal solution for diverse large-venue applications, the Vivitek DX6831 features native XGA resolution, DLP®/BrilliantColor™, dual-lamp technologies, and HDBaseT. Designed with centered optics, motorized lens shift, zoom and focus including lens memories. The Vivitek DX6831 offers seven (7) interchangeable bayonet lens options to meet most all installation requirements. Interchangeable color wheel (included) for vibrant color enhancement. The DX6831 can take you beyond its native aspect ratio and into endless possibilities.

Vivitek DX6831 Features:

  • Native XGA resolution to match today’s display requirements
  • Extremely bright at 8000 lumens with a 3000:1 contrast ratio
  • Dual-lamp technology limits down-time
  • Centered lens design with seven (7) interchangeable bayonet lens options
  • Connectivity options include: HDMI, Display Port, DVI-D, BNC, VGA-in,
  • Motorized lens shift (vertical/horizontal) and power zoom/focus
  • Lens memory feature, 10 settings available
  • Interchangable Color Enhancement Color Wheel (included)
  • HDBaseT
  • RJ45/RS-232 for integration and system administration
  • 12-V trigger for external module connection
  • Rear cover design for quick and easy lamp replacement

Vivitek DX6831 Specifications:

  • Brightness: 8000 ANSI Lumens
  • Native Resolution: XGA (1024 x 768)
  • Max. Resolution: WUXGA (1920 x 1200)
  • Contrast Ratio: 3000:1 (Full On/Full Off)
  • Lamp Life and Type: 2500/2000 Hours (Eco/Normal), 350W Dual Lamp
  • Lamp Part #: 3797802500-SVK
  • Display Type: Single DMD DLP® Technology by Texas Instruments
  • Aspect Ratio: 4:3 Native, 16:9 Compatible
  • Keystone Correction: ± 30° Vertical
  • Color Spectrum: 1.07 Billion
  • Horizontal Scan Rate: 15 to 108 KHz
  • Vertical Scan Rate: 48 to 120Hz
  • 3D: Full 3D
  • Remote Control: Fully Featured IR Remote
  • Projection Method: Table Top or Ceiling Mount (Front or Rear)
  • Uniformity: 85%
  • Computer Compatibility: WUXGA, 1080p, UXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
  • Video Compatibility: SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p,1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G,K, K1, L)
    I/O Connection Ports: HDMI v1.4, DVI-D, Display Port, DVI-D, 5 BNC (YPbPr/RGBHV), VGA-In, VGA-Out, 12V Trigger, RJ45 (HDBaseT compatible), RS-232, 3D Sync, Wired Remote, USB (Service)
  • Security: N/A
  • Weight: 44.1lbs (20 kg)
  • Dimensions (W x H x D): 20.1" x 9.55" x 21.26" (510 x 230 x 540mm)
  • Noise Level (Eco/Normal): Single Lamp: 39dB/39dB, Dual Lamp: 39dB/43dB
  • Power:
    • Supply: AC Input 100 - 240V, 50/60Hz
    • Single Lamp Consumption: 450W (Normal), 440W (Eco), 0.5W (Standby)
    • Dual Lamp Consumption: 870W (Normal), 660W (Eco), <0.5W (Standby Mode, LAN, RS232 Off)
  • Operating Temperature: 41 to 104°F (5 to 40°C), 90% Max Humidity
  • Warranty: 5-Year Limited Parts/Labor, 1-Year Lamp or 1000 hours
  • Standard Accessories*: AC Power Cord, VGA Cable, Remote Control, Batteriesfor Remote, RGBCMY Color Wheel, User's Manual (CD), Warranty Card.

NOTE: Lenses sold separately.
