Liberty AV Solutions 22-2C-PSH-WHT
1000 ft 22 AWG Single Pair Audio and Control Shielded Plenum Rated Cable with White Jacket

OUR PART #:  22-2C-PSH-WHT

The Liberty AV Solutions 22-2C-PSH-WHT is a 1000 ft reel of 22 AWG single-pair audio and control shielded plenum rated cable with an overall white jacket.
Learn More
Our Price: $178.20
List Price: $198.00
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Liberty AV Solutions 22-2C-PSH-WHT
Qty:
In Stock

Similar Products

The Liberty AV Solutions 22-2C-PSH-WHT is a 1000 ft reel of 22 AWG single-pair audio and control shielded plenum rated cable with an overall white jacket. This cable is designed for applications such as line level, microphone level audio runs under 100 feet, balanced and unbalanced audio formats and infrared (IR), RS-232C signaling.

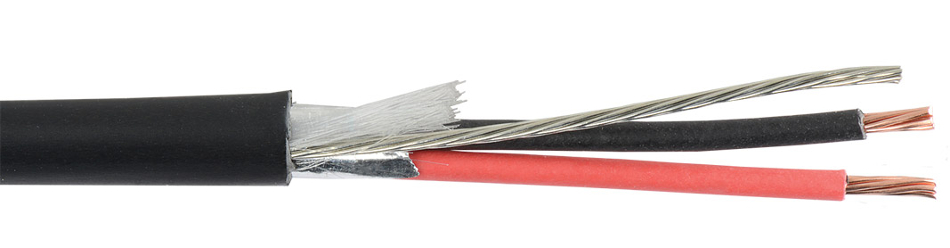

NOTE:  Image shown above is for illustrative purposes only; actual product comes with White-colored jacket. For more information on this and other products, contact your Sales Representative.

Liberty AV Solutions 22-2C-PSH-WHT Features:

  • 7-strand annealed bare copper conductors
  • Plenum rated PVC alloy insulation
  • Twisted, shielded with drain out
  • Plenum rated PVC alloy jacket
  • NEC, CMP, CEC CMP FT6, RoHS Compliant
  • 1000 foot spools

Liberty AV Solutions 22-2C-PSH-WHT Specifications:

  • Conductor:
    • 22 AWG
    • 7-strand annealed bare copper conductors
    • Diameter:  0.029" (0.73mm)
  • Electrical:
    • DC Resistance:  16.4 Ohms / 1000 ft
    • Mutual Capacitance:  39.7 pF/FT
    • Impedance:  47 Ohms
    • Velocity of Propagation:  55%
    • Voltage Rating:  300V
    • Maximum Current:  2.8A @ 25°C
  • Insulation:
    • Plenum rated polyvinyl chloride
    • Wall Thickness:  0.008" (0.20mm)
    • Diameter:  0.044" (1.13mm)
  • Regulatory:
    • NEC:  CMP 75°C
    • CEC:  CMP FT6 60°C
    • EU RoHS 2002/95/EC Compliant
