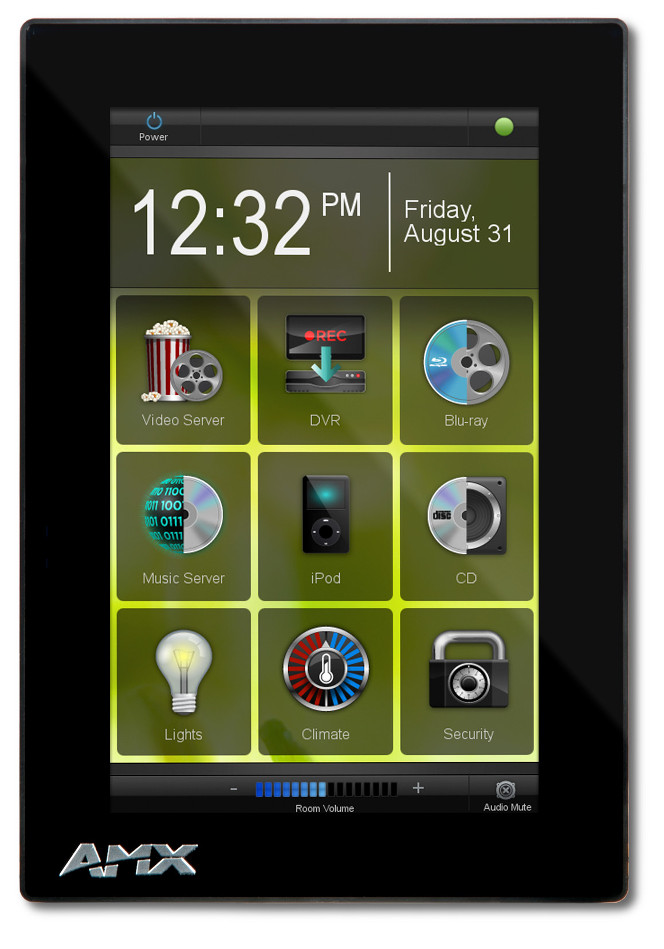

4.3in Modero X Series Wall or Flush Mount Touch Panel

OUR PART #:  MXD-430

The AMX MXD-430 is part of the Modero X Series, and is a Wall/Flush Mounted AV equipment control touch panel.
Learn More
Our Price: $2,300.00
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The AMX MXD-430 is part of the Modero X Series, and is a Wall/Flush Mounted AV equipment control touch panel.

The AMX Modero X Series
The Modero X Series is the most elegant family of interfaces designed specifically for dedicated room control. This new generation of touch panels is built for usability offering edge-to-edge capacitive touch glass with multi-touch capabilities. It features advanced technology empowering users to operate AV equipment seamlessly, while providing the ultimate in audio and video quality. The distinctive appearance will complement even the most sophisticated meeting facilities and homes. With a lightning fast processor, brilliant graphics and enhanced capabilities, the Modero X Series is the control surface that simply delivers more.

Common Applications
The MXD-430 is ideal for boardrooms, conference rooms or podiums where a control surface is needed to provide access to key functions. In residences, it is perfect for kitchens, bedrooms or bathrooms where it can be used to manage systems throughout the home.

AMX MXD-430 Features/Benefits:

  • Latest Communication Technologies
    Supports Near Field Communication™ (NFC) - short-range wireless technologies that deliver peer-to-peer communication by 'sharing, pairing and transaction' between RF devices like exchanging data/identities.
  • Enhanced Usability
    External phone connections via Bluetooth or USB and HD video streaming.
  • Graphic Leaps & Bounds
    The Modero X Series features intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities.
  • Perfect From Any Angle
    Includes In-Plane Switching (IPS), the latest technology in popular tablet/mobile devices that delivers the widest viewing angles and the most accurate color reproduction on the market.
  • Programmable LEDs
    red/green LEDs on the left and right sides useful for indicating when a conference room is available or in use.
  • Simple to Use Interfaces
    The capacitive multi-touch and gesture-based screen makes it easy for anyone to operate sophisticated meeting room equipment and whole home systems.
  • Range of Sizes
    The contemporary design with edge-to-edge glass is available in 4.3", 7", 10.1" as well as 19.4" and 20.3" panoramic sizes for applications in any room.
  • Vertical Orientation
    The 4.3" Modero X Series Wall/Flush Mount Touch Panel is engineered to mount vertically for specific applications such as room scheduling.

AMX MXD-430 Specifications:


  • Dimensions (HWD) Portrait:  4 7/8" x 3 1/4" x 23/8" (120 mm x 82 mm x 61 mm)
  • Weight:  0.75 lbs. (.34 Kg)

Power Consumption

  • Full-On: 6.5 W
  • Standby: 4.2 W
  • Shutdown: 1.9 W
  • Start-Up Inrush Current: Not applicable due to PoE standard

Note: External Power Supply Required.  Optimal performance requires use of one of the following AMX PoE power supplies(sold separately):

  • PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
  • NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)

AMX does not support the use of non-AMX power supplies.

Regulatory Compliance

  • FCC Part 15 Class B
  • CE EN 55022
  • CE EN 55024
  • CE EN 60950-1
  • IEC 60950-1
  • C-Tick CISPR 22 Class B
  • IC
  • UL 60950-1
  • RoHS
  • WEEE

Touch Screen Display

  • Display Type: TFT Active Matrix Color LCD with In-plane Switching Technology (IPS)
  • Display Size (WH):  Portrait: 3.3" x 4.8" (82 mmx 120 mm), 4.9" (119 mm) diagonal
  • Viewable Area (WH):  Portrait: 2.2" x 3.7" (56 mmx 94 mm), 4.3" (109 mm) diagonal
  • Resolution:  Portrait: 480x800
  • Aspect Ratio:  Portrait: 9:16
  • Brightness: 500 cd/m2
  • Contrast Ratio: 1000:1
  • Color Depth: 16.7M colors
  • Illumination: LED
  • Touch Overlay: Projected capacitive, multi-touch support, 3 simultaneous max

Viewing Angle

  • Vertical: ± 80°
  • Horizontal: ± 80°


  • SDRAM: 512 MB
  • Flash: 4 GB
  • Maximum Project Size: 2.4 GB flash available to user


  • Ethernet: 10/100 port, RJ-45 connector. Supported IP and IP-based protocols: UCP, TCP, ICMP, ICSP, IGMP, DHCP, Telnet, FTP, DNS,RFB (for VNC), HTTP
  • USB: (1) USB host 2.0, Type A port: Firmware upgrade, touch panel file transfer, JPEG image viewer
  • Near Field Communication (NFC): Supports standards ISO/IEC 15693, ISO/IEC 14443A, ISO/IEC 14443B; Unique Identifier (UID), typ range=.25", max = .5"
  • Bluetooth:
    • Mouse/Keyboard: HID Profile v1.1, requires MXA-BT Bluetooth Adapter (FG5968-19)
    • Handset: Hands Free Profile v1.5, Headset Profile v1.2, requires MXA-BT Bluetooth Adapter (FG5968-19) and MXA-HST Bluetooth Handset (FG5968-17)-sold separately.


  • Supported Video Codecs:
    • MPEG2-TS: MPEG-2 Main Profile@High Level up to 720p at 25 fps (decode only)
    • MPEG-2-TS: H.264 High Profile@Layer 4, AAC-LC up to 720p at 25 fps (decode)
    • MJPEG up to 720p at 25 fps (decode only)
  • Supported Video Transport Streams: MPEG-TS for MPEG2and H.264; HTTP for MJPEG
  • Max Number of Active Video Streams: One decode


  • Microphone: -42 dB ±3 dB sensitivity FET microphone
  • Speakers: 4 ohm, 2 Watt, 300 Hz cutoff frequency
  • Supported Audio Codecs:
    • MP2 Layer I and II, MP3 (8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz)
    • AAC-LC (8 kHz, 96 kHz)
    • G.711 with µLaw (VoIP encode/decode at 8 kHz)
  • Audio Output: USB Audio out USB port (head/hand set support)
  • File Formats: WAV, MP3 (as part of touch panel file only - no USB storage)
  • Intercom: Full Duplex VoIP, SIP v2.0 (supported with AMX-CSG)

Graphics Engine

  • AMX G4: G4 enhanced feature set supporting multi-touch and gestures, scrolling, transitions

Embedded Applications

  • Remote Management: VNC Server, G4 Web Control, AMX Resource Management Suite
  • Video Conferencing: Panel-to-panel and video chat (theMXD-430 receives video and returns audio)
  • Audio Conferencing: Audio (Full Duplex Intercom)

Front Panel Components

  • Light Sensor: Photosensitive light detector for automatic adjustment of the panel brightness
  • Proximity Detector: Max range = ~3', typ range =~1',FOV = ~10 degrees
  • Sleep Button: Sleep button to activate sleep mode and powering off. Also provides access to setup pages (can be disabled)
  • Programmable Red/Green LEDs: Programmable red/green LED recessed in the left and right sides of the panel


  • Ethernet: 10/100 port, RJ-45 connector through cable extension
  • USB: (1) USB host 2.0, Type A port
  • Power: PoE (Power over Ethernet), 802.3af, class 3


  • Temperature (Operating): 32° F to 104° F (0° C to 40°C)
  • Temperature (Storage): 4° F to 140° F (-20° C to 60°C)
  • Humidity (Operating): 20% to 85% RH
  • Humidity (Storage): 5% to 85% RH
  • Power ("Heat") Dissipation:
    • On: 22.2 BTU/hr
    • Standby: 14.3 BTU/hr

Included Accessories

  • MXA-USB-C, USB Port Cover Kit, Modero X Series TouchPanel (FG5968-18)
  • MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)

Note: Specifications are subject to change without notice.
