Allen Products/Adaptive Technologies UB-1050
20.25" Fixed Width Tilting U-Bracket


The Allen Products UB-1050 is a 20.25" fixed width tilting U-bracket with a 60 pound working load limit.
Learn More
Our Price: $60.00
List Price: $80.00
You save 25%!
Write the first review.
Allen Products/Adaptive Technologies UB-1050
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Allen Products UB-1050 is a 20.25" fixed width tilting U-bracket with a 60 pound working load limit. This bracket can be used to secure and safely aim loudspeakers from structural surfaces including; walls, ceilings, under balconies and overhangs. Loudspeakers rotate within the arms of the bracket to provide one axis of rotation.

Flexible features allow these mounts to be installed anywhere, under trussing, atop tripod stands or suspended from overhead with pipe or threaded rod.

English standard hardware and sound isolation gaskets are included in the kit and metric hardware is available separately.

For anchoring to wall studs, mounting holes are offset in the brackets' base on 12", 16" and 20" centers, depending on the width of the mount. Side are slots increase the bracket's range of installation positions relative to the wall and sound isolation gaskets add a friction lock and help block a wide range of frequencies between the speaker and the wall.

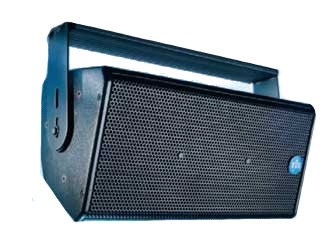

NOTE:  Image shown above is for illustrative purposes only; actual product is bracket ONLY, speaker shown is NOT included with purchase. For more information on this and other products, contact your Sales Representative.

Allen Products UB-1050 Specifications:

  • Material:  Structural Steel Alloy
  • Finish:  Powder Coat
  • Color:  Black
  • Working Load:  60 lbs
  • Design Factor:  10:1 Ratio

To be the first to review this item, click here.
