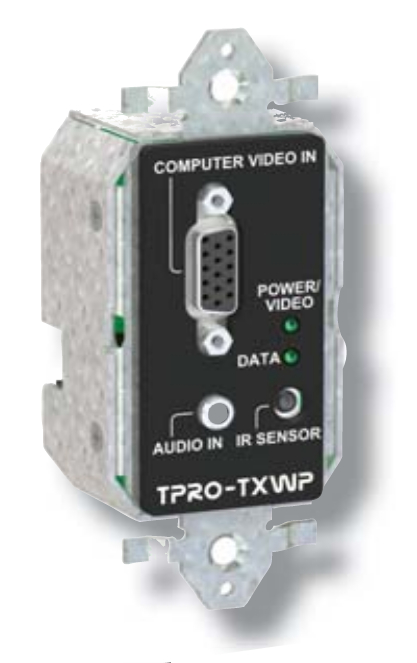

FSR, Inc TPRO-TXWP-BLK
1 Gang TwisterPro Wall Plate Transmitter with Decora Trim Ring in Black

OUR PART #:  TPRO-TXWP-BLK

FSR presents the TPRO-TXWP-BLK (Item # 16991) is a one gang wall plate transmitter that is part of their TwisterPro™ UTP Transmitter / Receiver System which allows video...
Learn More
Our Price: $262.99
List Price: $289.00
You save 9%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

FSR, Inc TPRO-TXWP-BLK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

FSR presents the TPRO-TXWP-BLK (Item # 16991) is a one gang wall plate transmitter that is part of their TwisterPro™ UTP Transmitter / Receiver System which allows video, stereo audio, RS-232 data and IR signal transmission over ordinary low cost CAT-5, 5e, 6 and cable. This specific element is a wall plate style transmitter that is offered in three colors; black, white, and ivory. Matching Decora™ trim rings are included for stand alone use, or the units be populated along with FSR’s IPS component and plates for a complete interface solution. There are also “brick” style housing versions that can be used on any surface or rack mounted using the accessory rack kits if preferred.

The TwisterPro™ system offers the highest level of signal integrity. These high quality devices ensure reliable, error free transmission that is immune to interference from electrical noise. Cable runs of up to 1000 feet are within the capabilities of the system. The system can be powered at either the transmitter or receiver end by the optional power supply(s). If a TPRO-HUB is used, the hub with it’s included power supply, will power the other components in the system. This 1 in 8 out hub allows full expandability for demanding applications. Multiple hubs can be cascaded to achieve a maximum of 512 outputs.

Applications:

  • Boardrooms
  • Control Rooms
  • Digital Signage
  • Temporary Staging and Rental
  • Houses of Worship
  • Classrooms
  • Hotel/Conference Facilities

NOTE: See Attached for Product Specficiations

FSR TPRO-TXWP-BLK Features:

  • RGB Video Transmission system:
    • HD-15 female connectors for video input and output
    • CAT-5 connections are via RJ-45 Connectors (EIA/TIA-568B)
    • Video resolutions up to 1920 x 1080 (1080p)
    • Cable skew compensation adjustments on -S model receiver
    • Adjustable gain control on front panel
  • RS-232 Data Transmission:
    • DB-9 female connectors for the inputs and male for outputs (optional for TPRO-TX wallplate models)
    • UTP connections are via RJ-45 Connectors (EIA/TIA-568B)
    • Compatible with RS-232 standards
    • UL and CSA approved external power source (wall plug-in)
    • Simplex RS-232 up to 19.2k baud
    • LED indication of RS232 data activity
  • IR Control Data Transmission:
    • Compatible with most IR devices
    • Custom carrier frequencies are available per customer request
    • Extends IR control up to 1000 feet
    • Normal and high output emitter power level settings
    • High output power level settings up to 60mW allows for multiple emitter connections - (emitters sold separately)
    • Transmitters feature integrated IR sensors in addition to hard-wired input options
    • LED indication of IR data activity
  • General:
    • Units can be powered at either end or through optional hub
    • Over-current sensing with LED indication
    • Video, RS-232 and IR LED indicators
    • Optional 1 in 8 out TPRO-HUB with power supply available

NOTES: TwisterPro requires a Transmitter (choose your preference - wall plate or wide brick), a Receiver (choose your preference - wall plate or wide brick), and Power Supply. No power supply is needed if you are connecting to the optional TwisterPro Hub.
