JBL EON206P
6-Channel Portable PA System with (2) 6.5" Speakers and Detachable Powered Mixer

OUR PART #:  EON-206P

The JBL EON206P is a self-contained, Portable PA System featuring multiple input channels with individual tone controls...
Learn More
JBL EON206P Mixer Detail View
JBL EON206P Speaker Rear Detail View
JBL EON206P Speaker Detail View

Click a thumbnail to see more images. (5 total)

Our Price: $449.00
List Price: $560.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL EON206P
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL EON206P is a self-contained, Portable PA System featuring multiple input channels with individual tone controls, reverb and convenient sound output capabilities that allow the user to integrate the system into any number of audio environments.

With its lightweight and ergonomic design, the EON206P is an easy to use, lightweight package with un-compromised sound quality. Whether you’re a musician, singer, DJ, teacher or anyone in need of a truly compact and portable system, the EON206P has all the features you need to deliver your message.

Portable & Easy to Use
The EON206P is light enough to carry in one hand. The powered mixer panel and dual full ranged speakers, combine to form a convenient suitcase-like package. Complete with power and connection cables that go into their own storage space designed to neatly tuck them into when your done. Weighing in at only 25lbs, anyone can juggle an instrument and our personal p.a. system at the same time. Perfect for cafes, parties, churches, conferences, small groups and more.

JBL Professional Sound Quality

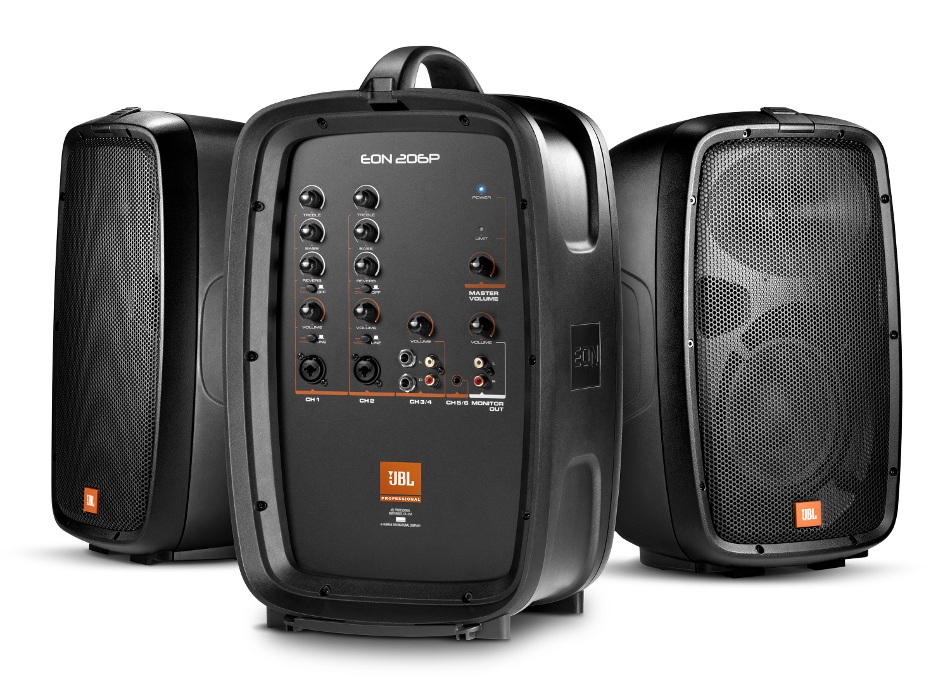

The EON206P consists of two 6.5-inch, two-way, powered loudspeakers and a detachable powered mixer with an enclosed storage compartment, one pair of unshielded speaker cables and a power cord. Capable of reproducing full bandwidth sound at high levels the 206P is comprised of a 165 mm (6.5 in) woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100° H by 80° V waveguide driven by a 80 watt per channel Class-D amplifier and integrated mixer.

Powered Mixer Input Panel
The attached mixer has 6 inputs: 2 mono inputs comprised of a combination input connector, MIC/ LINE selector, Treble and Bass controls, Reverb and channel volume controls. The 4 stereo inputs are where you can connect musical instruments and external sound sources (like MP3 or CD players). The stereo inputs labeled “CH 3/4” offer the option of using RCA or 1/4” and includes a volume control. The input labeled “CH5/6” is a 3.5 mm stereo input of the type typically found on personal music players. The “Monitor Out” enables sourcing to recording devices, additional powered speakers or mixers via RCA connectors.

JBL EON206P Features:

  • Ultra Light Weight and Extremely Compact weighing only 25 lbs
  • Ergonomic soft touch top grip for easy handling
  • 100° H x 80° V asymmetrical wave guide for uniform audience coverage
  • Integrated 36 mm pole mount socket with stabilizing securing screw
  • Highly designed composite enclosures for durability, lightweight, and acoustic performance
  • Convenient hide away power and cable storage space

JBL EON206P Specifications:

  • EON206P Speaker:
    • System Type:  (2) Self-Powered 6.5" two-way, bass-reflex
    • Max SPL Output:  113 dB
    • Frequency Range (-10dB):  64 Hz - 22 kHz
    • Frequency Response (-3dB):  77 Hz - 20 kHz
    • Coverage Pattern:  100° x 80°
    • Amplifier Design:  Class D
    • Power Rating:  160 W (2 x 80 W)
    • Package Dimensions (HxWxD):  20.9" x 27.8" x 13.4" (530mm x 705mm x 340mm)
    • Net Weight:  25 lbs (11.38 kg)
  • EON206P Powered Mixer:
    • Input Connectors:  6 inputs (2 Mono Mic/Line, 2 x Stereo)
    • Channels:
      • 1-2 are XLR / 1/4” jack combo connectors
      • XLR is a mic level input, 1/4” is a line level input
      • 3-4, one pair of 1/4” balanced TRS jacks (stereo), and a pair of RCA jacks (stereo) 5-6 is a 3.5 mm stereo jack
    • Input Impedance:
      • Ch 1-2 Combo:  XLR 40 kOhms Balanced
      • Ch 1-2 Combo:  TRS 40 kOhms Balanced
      • Ch 3-4:  TRS 20 kOhms Balanced
      • Ch 3-4:  RCA 5 kOhms Unbalanced
      • Ch 5-6:  3.5 mm 10 kOhms Unbalanced
    • Output Connectors:  Monitor outputs: one pair of RCA jacks (stereo)
    • Signal Indicators:  Limit: Yellow LED indicates limiter active condition
    • EQ:  Individual channel Bass and Treble controls, center detent, +/-12 dB cut and boost
    • System Limiter:  On Board DSP Limiting and Tuning
