Product Overview

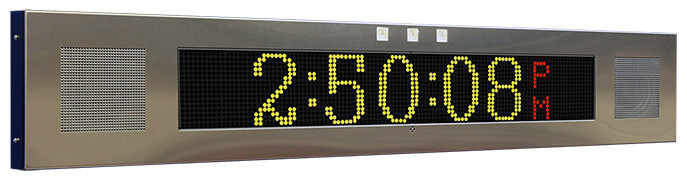

The Advanced Network Devices IPSIGNL-RWB is our largest IPclock. This clock is specifically designed for large rooms or auditoriums. It has two 8 inch speakers that allow for increased maximum volume and its larger text display makes reading messages from afar easy. It also includes red, white, and blue flashers which can be configured for warnings or alerts.
Advanced Network Devices IPSIGNL-RWB-IC Features:
- IP clock specifically designed for large rooms
- Large bright text display makes reading messages easier from far distance
- Flashers configurable for emergencies or alerts
- Clock:
- 4.5? numbers/text
- Atomic time
- Never needs setting
- Auto-adjust for Daylight Savings
- Display 4 or 6 digits
- Configurable fonts, colors
- Stop Watch / Timer:
- Count up or down
- Large display area allows for simultaneous large clock and timer
- Display 4 or 6 digits
- Configurable fonts and colors
- Count days, hours, minutes, seconds, 1/100ths
- Display timer and clock simultaneously
- Scrolling Text:
- Extra-wide display for many configurations
- Reminders/Alerts
- Advertising
- RSS/Twitter/News/Weather/Stock feeds
- Configurable fonts
- 1 or 2 Line Display
- Custom configuration allows the user to send different types of messages to the device. Different colors can represent different message types or priorities.
- Audio:
- 2-8” High efficiency PA Speakers
- Bell scheduling, reminders, alerts, clock chimes, and alarms via Clockwise or 3rd party software
- Voice paging from a PC or IP Phone, randomly, or at intervals
- Use provided notifications, alarms, audio files (sport, holiday, traditional, etc.), or your own
- Sound Masking: Generate configurable pink noise via push button or programmatically for sound masking
- Microphone:
- Monitoring
- Two way talking/Intercom
- Paging Supervision
- Hands-free talk back
- Two Way Communication:
- Activate via push button
- Allows for full duplex hands free communication
- Auto Dimming: Automatically reduce display power usage at night to save energy
- Flashers:
- Configurable for emergencies or alerts
- Individually controllable
- One red, one white, one blue
- Brightness adjustable
- Built in Web Server:
- Send text messages to it from the web page
- Configurable brightness and volume
- Configurable fonts
- Configurable NTP time server, time zone, etc.
- Device Status
- Field upgradable
- Line In/ Out:
- Independent line-in.
- Can be configured to send line in audio to the speaker and/or add additional speakers
- Configurable line-in audio detection threshold
- Easy Installation:
- Only requires CAT 5 connection (up to 300ft) to network
- Power over Ethernet (no power cord or adapter). No other equipment needed
- GPIO:
- 2 inputs, 1 output
- Activate via telephone or programmatically
- Full multicast and broadcast support. Send audio and/or scrolling text to individual, multiple, or all devices simultaneously.
Advanced Network Devices IPSIGNL-RWB-IC Specifications:
- Supported Protocols:
- SIP
- IPv4
- HTTP
- SLP
- TFTP
- NTP
- DHCP
- IGMP
- ICMP
- TCP/IP
- UDP
- MDNS & MDNS-SD
- SNMPV1 & SNMPV2c
- Weight: 26 lbs
- Approx. 51”x9”x4”
- PoE (IEEE802.3af) 15.4 W
- PoE+ (IEEE802.3at) 30.0 W
- 10/100 Mb network connection
- PoE+ recommended
