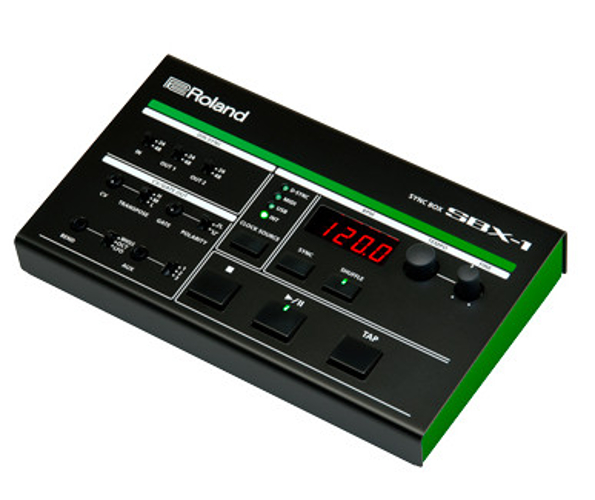

Boss SBX-1
Sync Box for MIDI/CV


The Boss SBX-1 lets computers and electronic instruments communicate and synchronize with each other.
Learn More
Our Price: $499.99
List Price: $599.00
You save 17%!
Write the first review.
Boss SBX-1
In Stock

Related Products

The Boss SBX-1 lets computers and electronic instruments communicate and synchronize with each other. It supports a vast array of both analog and digital devices through DIN SYNC, MIDI and USB, and any of these can be the master clock source. You can use the SBX-1 itself as the master sync and control your external devices with its rock-steady internal clock. With hands-on control over timing and groove, and support for CV/GATE, the SBX-1 is far from just an ordinary sync box.

Boss SBX-1 Includes:

  • Owner’s manual
  • AC adaptor

Boss SBX-1 Features:

  • Simultaneous conversion between MIDI, DIN SYNC, and USB/MIDI
  • Control external devices with SBX-1 as the master sync source
  • Shuffle adds swing to patterns generated on devices without swing like TR-808 and TB-303
  • CV/GATE jacks introduce enormous creative possibilities
  • SYNC button corrects timing errors with a single press
  • Output up to three channels of triggers or LFOs with different characteristics
  • DIN SYNC supports both Sync24 and Sync48 compatible with a variety of rhythm machines
  • Works great with the TR-8 through optimized AUX jack
  • Runs on USB bus power or with AC adapter

Bos SBX-1 Specifications:

  • Switch
    • [DIN SYNC IN] Switch (24, 48)
    • [DIN SYNC OUT1] Switch (24, 48)
    • [DIN SYNC OUT2] Switch (24, 48)
    • [TRANSPOSE] Switch (H, M, L)
    • [POLARITY] Switch (+, -)
    • [BEND] Switch (WHOLE, OCT, LFO)
    • [AUX] Switch (1, 2, 3)
    • [POWER] Switch
  • Buttons
    • [CLOCK SOURCE] button (D-SYNC, MIDI, USB, INT)
    • [SYNC] button
    • [SHUFFLE] button
    • [STOP] button
    • [PLAY/PAUSE] button
    • [TAP] button
  • Knobs
    • [TEMPO] knob
    • [FINE] knob
  • Indicators
    • [D-SYNC] indicator
    • [MIDI] indicator
    • [USB] indicator
    • [INT] indicator
  • Display: 7 segments, 4 characters (LED)
  • Connectors:
    • DIN SYNC (IN, OUT1, OUT2) connectors
    • MIDI (IN, OUT1, OUT2) connectors
    • USB COMPUTER port: USB type B
    • DC IN jack
    • CV jack: Miniature phone type
    • GATE jack: Miniature phone type
    • BEND jack: Miniature phone type
    • AUX jack: Miniature phone type
  • Power Supply: AC adaptor or supplied from the computer via USB
  • Current Draw
    • 150 mA (When using an AC adaptor)
    • 200 mA (When using USB bus power)
  • Dimensions (WxDxH): 8-11/16" x 5-3/8" x 2-1/16" (220  x 135 x 52 mm)
  • Weight: 1 lbs. 12 oz. (790 g)
