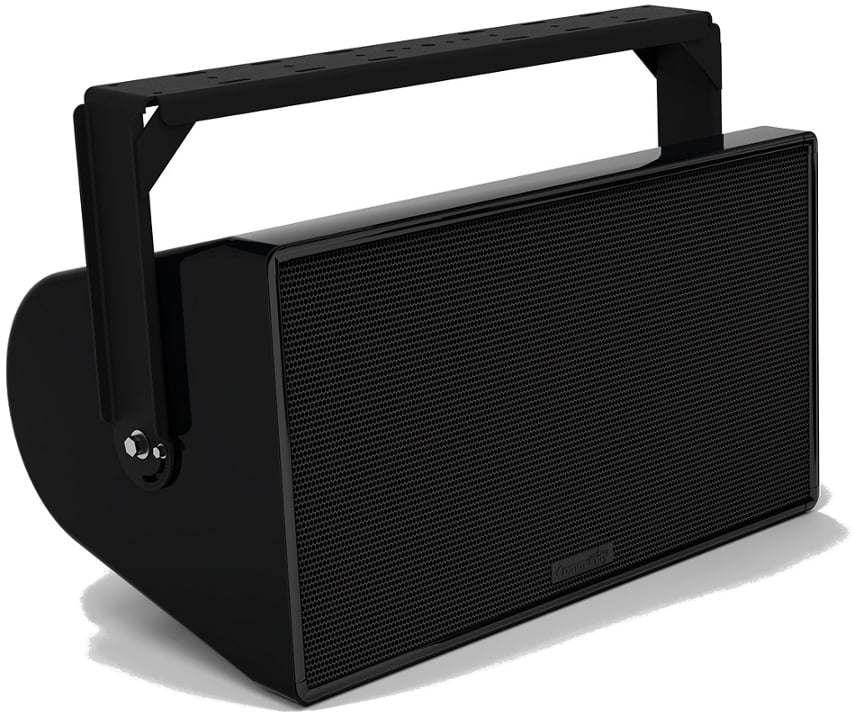

Community WX-1594
15" Two-Way WET X Series Indoor / Outdoor Loudspeaker in Black with 90x40 Dispersion

The Community WX-1594 is a large format full-range loudspeaker system with a driver complement that consists of a 15" (381mm) high-power low-frequency driver and a 1.4" (36mm) exit / 2.87" (72.9mm) edge-wound voice coil compression driver. The large-format rotatable horn flare delivers well-controlled 90° x 40° dispersion, and utilizes high-order crossovers to minimize band overlap.

The WX-1594 is used in passive operating mode. The passive mode is designed to deliver outstanding performance without the use of a processor. A custom bi-amp option* can allow greater system flexibility allowing a compatible processor to enhance the LF response.
*Please contact your sales representative for more information regarding this option.

The WET X Series is designed to provide high-quality music and voice reproduction in applications requiring extreme weather-resistance. The WET X enclosure features unmatched durability and ruggedness and is engineered for use in permanent installations.

The loudspeaker enclosure and faceplate are constructed of multi-layer glass composite lined with 18mm (7-layer) marine-grade plywood, resulting in extreme structural strength. All exposed hardware is stainless steel or powder-coated aluminum extrusion. A weather-resistant 304SS, dual-layer powder-coated horizontal bracket is included for mounting.

Community WX-1594 15" Two-Way WET X Indoor/Outdoor Loudspeaker Features:

• 90° x 40° rotatable horn pattern
• Large format waveguide delivers excellent pattern control
• 1.4" (36mm) exit / 2.87" (72.2mm) VC HF transducer
• 15" (381mm) / 3" VC LF weather-treated transducer
• Passive operating mode standard
• All-weather, multi-layer glass composite shell over 18mm 7-layer marine grade plywood interior
• Dual-layer powder-coated 304 stainless steel mounting bracket included
• Stainless steel hardware
• Available with optional built-in 400W transformer for 70V / 100V applications (Please contact your sales representative for more information regarding this option)

• System:
• Loudspeaker Type: Full-range, two-way, weather-resistant
• Operating Range: 40 Hz to 22 kHz (-10 dB)
• Frequency Response: 50 Hz to 18 kHz (-3 dB)
• Max Input Ratings:
• 600W RMS, 1200W Program
• 69 volts RMS, 138 volts momentary peak
• Maximum Output: 127 dB SPL / 133 dB SPL (peak)
• Sensitivity (1W / 1m) Free Space SPL:
• 99 dB (63 Hz - 16 kHz 1/3 octave bands)
• 98 dB (250 Hz - 4 kHz speech range)
• Nominal Impedance: 8 ohms, 8.1 ohms @ 130 Hz minimum
• Coverage Pattern: 90° H x 40° V
• Axial Q / DI: 12.28 / 10.89, 2 kHz to 16 kHz
• Crossover Frequency: 1.5 kHz
• Recommended High Pass: 50 Hz 24 dB / Octave
• Transducers:
• Low Frequency:
• Driver: 1x 15" cone, 3" voice coil, weather-treated
• Sensitivity (1W / 1m): 96 dB (60 Hz - 1.1 kHz)
• Power Capacity (Cont/Peak): 600W / 2400W
• Nominal Impedance: 8 ohms
• High Frequency:
• Driver: 1x 2.87" voice coil / 1.4" exit
• Sensitivity (1W / 1m): 108 dB (1 kHz - 20 kHz)
• Power Capacity (Cont/Peak): 90W / 360W
• Nominal Impedance: 8 ohms
• Physical:
• Input Connection: 12' (4m) SJOW #16-gauge cable with stripped ends
• Enclosure: Trapezoidal fiberglass outer shell and face lined and reinforced with 18mm (7-layer) marine grade plywood
• Finish: Black gel coat fiberglass
• Mounting/Rigging Provisions: Two 1/2"-13 rigging points; 304SS zinc-rich dual-layer powder-coated bracket included; Integral 1/2"-13 safety cable mounting point
• Grille: 3-Layer Weather-Stop™ backing, 304SS zinc-rich dual-layer powder-coated
• Environmental: IP56 per IEC 529
• Dimensions (horizontal orientation): 19.5" H x 33.63" W x 20.5" D (495.3 x 854.1 x 520.7 mm)
• Loudspeaker / Unit Weight: 115 lbs (52.3 kg) / 133 lbs (60.3 kg) with bracket
• Shipping Weight: 162 lbs (73.5 kg)
