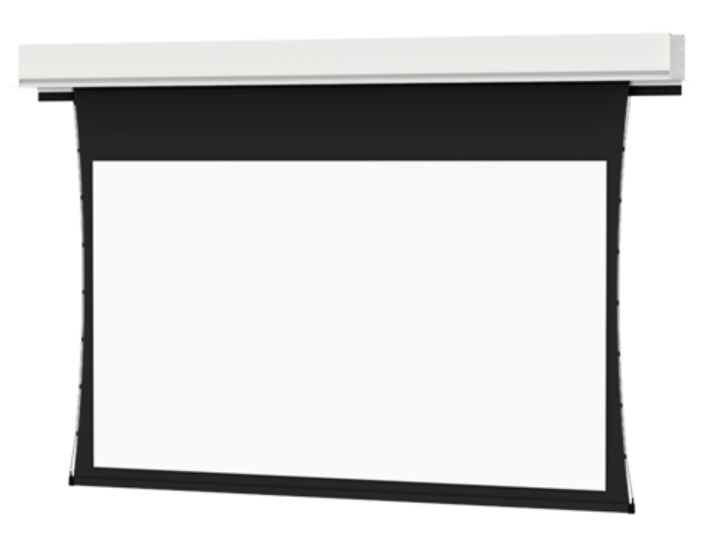

Da-Lite 88186I
84" x 84" Tensioned Advantage Deluxe Electrol Projection Screen with Video Projector Interface

OUR PART #:  88186I

The Da-Lite 88186I is designed to eliminate the extra step of finishing the screen with trim...
Learn More
Our Price: $4,228.80
List Price: $5,286.00
You save 20%!
Write the first review.
Da-Lite 88186I
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Da-Lite 88186I is designed to eliminate the extra step of finishing the screen with trim, as the Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen’s trim conceals the rough opening eliminating the need to complete additional trim work. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling.

Tensioned screens ensure the smoothest surface possible, and all Deluxe screens feature a closure door that hides the open space and screen in the ceiling, providing a cleaner aesthetic. The Tensioned Advantage® Deluxe Electrol® screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in  construction stage and the fabric assembly can be completed during the finishing stage.

This version come with a High Contrast Da-Mat® screen surface which is a vinyl surface that features a dark gray base for deeper reproductions of black, which improves the perception of contrast. Best in environments with a high output projector and completely controlled ambient light. Seamless in any width up to 16' in height. High Contrast Da-Mat can be cleaned with mild soap and water, is flame retardant and mildew resistant. This surface has achieved GREENGUARD GOLD Certification.

Da-Lite 88186I Features:

  • Standard Low Voltage Control (LVC) to keep your screen operation flexible
  • Smooth Roll Technology to keep your screen perfectly flat
  • Slim-Tab, a lower profile and stronger tab design to keep your screen perfectly taut
  • Tensioning Cable System to prevent warping and ensure even lateral tension
  • UL Plenum rated case
  • White powder-coated closure doors and case for a clean aesthetic
  • Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case
  • Decora-style, three-button wall switch
  • Standard black backing retains projected brightness on front projection surfaces
  • Seamless surfaces in all models

Da-Lite 88186I Specifications:

  • Screen Format: Square
  • Viewing Area (H x W): 84" x 84" / 213 x 213 cm
  • Overall Length of Case*: 112 1/4" / 288 cm
  • Approx. Ship. Wt.: 125 lbs / 56.7 Kg.
  • Screen Surface: High Contrast Da-Mat (Half Angle: 45°, Gain: 0.8)
  • Accessory: Video Projector Interface

NOTE: *Case length does not include flange.
