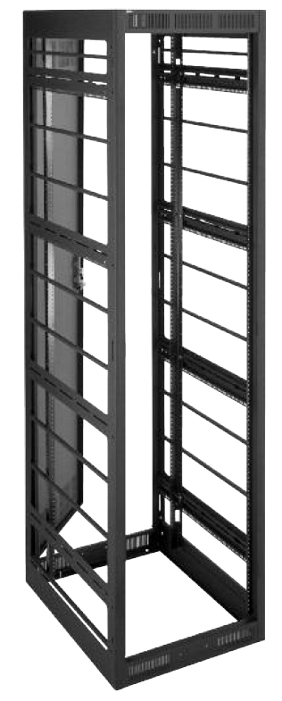

Middle Atlantic Products VRK-44-31HLRD
22" Wide Enclosure VRK Series Rack

OUR PART #:  VRK-44-31HLRD

Middle Atlantic Products has designed the VRK-44-31HLRD to the broadcast standard 22” width specifically for mounting video and AV equipment.
Learn More
Our Price: $1,318.50
List Price: $1,758.00
You save 25%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Middle Atlantic Products VRK-44-31HLRD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Middle Atlantic Products has designed the VRK-44-31HLRD to the broadcast standard 22” width specifically for mounting video and AV equipment. This gangable floor-standing enclosure with built-in horizontal lacing bars making it ideal for quick tie-and-slide lacing of video cable bundles. Choose a VRK for a strong, narrow, multi-bay enclosure with seismic certification and open or removable sides.

NOTE: Product shown in image is for illustrative purposes only. Actual product may vary in appearance.

Middle Atlantic VRK-44-31HLRD Features:

  • Fully welded construction for strength
  • Built-in horizontal lacing bars on 7” centers for quick “tie-and-slide” lacing
  • Racks gang together when fully loaded
  • Standard front and rear adjustable 10-32 threaded rackrail with numberedspaces

Middle Atlantic VRK-44-31HLRD Specifications:

  • General Info:
    • Gangable: Yes
    • Finish Type: Textured Black Powder Coat
    • UL Standards Tested: 1678
  • Listing Agencies/Third Party Information:
    • ASCE: 7-10
    • RoHS: Yes
    • Greenguard: Yes
    • UL Listing No: E173107
  • Dimensions:
    • Usable Depth: 29"
    • Usable Height: 77"
    • Capacity Weight (US): 10000 lbs.
    • Depth: 31.4"
    • Height: 83.125"
    • Width: 22"
    • Primary Package Weight (US): 184
    • Rack Units: 44
  • Technical Information:
    • Rackrail Type: 10-32
    • Seismic Load Capacity: 740
    • UL Load Capacity: 2500
    • Material: Steel
    • Mounting: Horizontal
    • Seismic Certified: Yes

NOTES:
EIA compliant 19” gangable equipment rack shall be Middle Atlantic Products model # VRK-44-31HLRD. Suffix of LRD shall indicate a model without the standard vented latching rear door. Overall dimensions of rack shall be 83-1/8”H x 22”W x 31.4”D. Useable height shall be 44 rackspaces, useable depth shall be 29”. Fully welded construction provides a static load capacity of 10,000 lbs. and a UL Listed 2,500 lb. weight capacity. Rack shall be constructed of the following materials: top and bottom shall be 14-gauge steel, horizontal braces shall be 16-gauge steel welded to uprights of 16-gauge steel giving an 1/8” thick structure, all structural elements shall be finished in a durable black powder coat. Rack shall include a locking, latching rear door. Rack shall come equipped with two pairs of 11-gauge steel rackrail with tapped 10-32 mounting holes in universal EIA spacing. Rackrail shall be finished in black e-coat with numbered rackspaces. Top and bottom of rack shall feature vertical slotted vent pattern. Sides of rack shall feature 16 pre-installed horizontal lacing bars. Grounding and bonding stud shall be 1/4-20 threaded, installed in base of enclosure. VRK Series enclosures shall satisfy the 2007 & 2010 CBC; 2006, 2009 & 2012 IBC; ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000 for use in areas of high seismicity, Seismic Use Group III, Zone 4 or Seismic Design Category (SDC) “D” with lateral force requirements for protecting 740 lbs. of essential equipment in locations with the highest level of seismicity and top floor or rooftop installations with an Importance factor (Ip) of 1.5 when used with MRK-Z4 seismic floor anchor bracket. Rack shall be UL Listed in the US and Canada. VRK series enclosure shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. VRK series enclosure shall be RoHS EU Directive 2002 / 95 / EC compliant. VRK shall be manufactured by an ISO 9001 and ISO 14001 registered company. Rack shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime of the rack.
