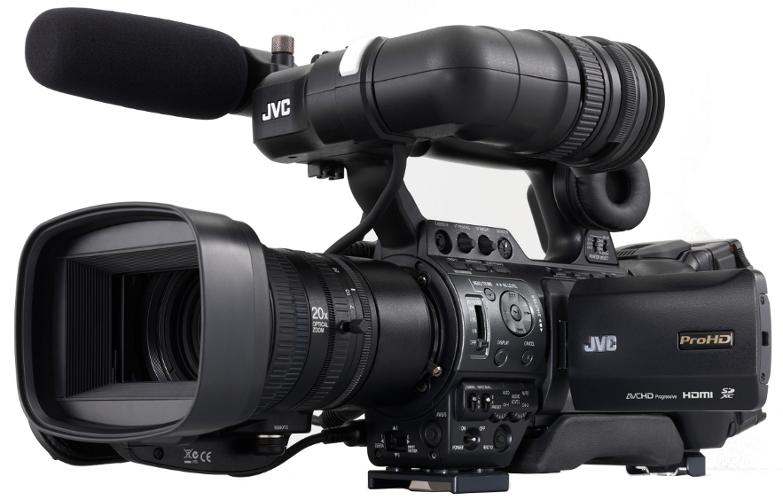

JVC GY-HM890F20 Camcorder
1/3" ProHD Shoulder Camcorder with Fujinon XT20sx4.7BRM HD ENG Lens

OUR PART #:  GYHM890F20

Rush to the scene with the JVC ProHD GY-HM890 compact shoulder camcorder and deliver the news faster than ever.
Learn More
Fujinon XT20sx4.7BRM HD ENG Lens
JVC GY-HM890U - Right Side View
JVC GY-HM890U - Left Side View

Click a thumbnail to see more images. (5 total)

Similar Products

Rush to the scene with the JVC ProHD GY-HM890 compact shoulder camcorder and deliver the news faster than ever. Wirelessly backhaul via FTP or stream LIVE over a Wi-Fi or 4G-LTE/3G network. Record on cost-effective SDHC/SDXC cards, in HD or SD, including simultaneous recording in two different resolutions. You can even stream and record at the same time. Save time and money getting breaking news on the air with the studio-friendly GY-HM890, and stay on top of the action.

NOTE: Actual product may vary in appearance.

This package comes with the Fujinon XT20sx4.7BRM HD ENG lens that features an impressive 20x zoom capability with an ample wide angle of 4.7mm. In addition, Fujinon's newly designed hand grip features improved ergonomics and advanced zoom technologies compliment this lens. Other lens highlights include a Quick Zoom Function - allowing Rapid One-Touch Wide-to-Telephoto Action and Cruising Zoom Function which gives you Set Pace Zoom capability.

There's never been a more versatile high quality professional camera than JVC's GY-HM890U. On your shoulder, its solid feel gives you the confidence that you are working with a camera you can count on--even in the most difficult shooting conditions. All of the controls you need are at your fingertips right where you'd expect them. Three new CMOS sensors ensure that picture quality is second to none whether you are producing HD, SD or for the web--or all of the above! With JVC's Advanced Communications Technology, your content is delivered instantly to the studio and even to your viewers.

With its unique modular design, the GY-HM890U is an ideal studio camera. JVC offers a wide range of fiber and multicore options, with a dedicated sled and high resolution viewfinder. Round out the studio system with a pedestal and teleprompter and you'll have an affordable first rate studio system. This camera has the DNA and accessories to handle ENG, EFP and Studio production recording and applications.

JVC GY-HM890UF20 Camcorder Features:

  • 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
  • F11 Sensitivity
  • Compact shoulder design with interchangeable lens options
  • Fujinon 20x Optical Zoom Lens with AF/OIS included
  • Dual SDHC/SDXC Memory Card Recording (HD+HD, HD+SD, HD+web, etc.)
  • Multiple File Formats for Native Workflows:
    • XDCAM EX™ (.mp4)
    • Final Cut (.mov)
    • AS-10 (.mxf)
    • AVCHD (.mts)
    • H.264 (.mov)
  • Virtually lossless H.264 50Mbps recording
  • 4 Position ND Filter (Clear, 1/4, 1/16, 1/64)
  • 0.45-inch LCOS Viewfinder
  • High-Resolution 4.3-inch LCD Monitor
  • Histogram Display and Expanded Focus Functions
  • Focus Assist Function
  • 12 assignable user buttons
  • Variable Frame Rate Recording (Over Cranking, Under Cranking)
  • Wired Remote Control Operation
  • Genlock Input and TC Input/Output
  • HD/SD-SDI external input for recording and streaming (pool feed)
  • 4-Channel Audio System
  • Full complement of Fiber or Multicore studio accessories

JVC GY-HM890UF20 Camcorder Specifications:

General

  • Power: DC 12V (10.5V-17V)
  • Power consumption: Approx. 28W (Camera body with provided lens and LCD/VF ON, single recording mode, default settings)
  • Weight:
    • Approx. 8.9 lbs (4.0 kg) (without battery)
    • Approx. 10.6 lbs (4.8 kg) (including battery)
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Operating humidity: 35% to 80%
  • Storage temperature: 14°F to 122°F (-20°C to 50°C)
  • Storage humidity: Under 85%

Camera

  • Image sensor: 1/3” 2.2M pixels progressive scan 3CMOS
  • Synchronizing system: Internal/external synchronization
  • Stabilizer: Optical image stabilizer
  • Lens: Fujinon XT20sx4.7BRM HD ENG lens (focal length 4.7 - 94mm)
  • Shutter speed: 1/4 to 1/10000
  • Filter thread: M82 x 0.75mm
  • Gain: -6dB, -3dB, 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, Lolux (30dB, 36dB), ALC
  • ND filter: Clear, 1/4, 1/16, 1/64
  • LCD display: 4.3” 1.15M pixels
  • Viewfinder: 0.45” 1.22M pixels

Video/Audio Recording

  • Recording media: 2x SDHC/SDXC memory card Class 4/6/10 (Class 4 for AVCHD and H.264 SD/Web only)
  • Video recording: Video codec: MPEG-2 Long GOP (HD), AVCHD progressive, H.264
  • File format: MOV (HD/SD/WEB), MP4 (XDCAM EX), MTS (AVCHD progressive), MXF
  • NTSC Recording mode:
    • MPEG-2 Long GOP
    • NTSC setting:
      • HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x1080/59.94i, 1280 x 720/59.94p, 29.97p,23.98p
      • SP mode: 1440 x1080/59.94i, 1280 x 720/59.94p
  • PAL recording mode:
    • HQ mode: 1920 x 1080/50i, 25p, 1440x 1080/50i
    • SP mode: 1440 x 1080/50i, 1280 x 720/50p
  • AVCHD:
    • NTSC setting:
      • Progressive mode (Max 28Mbps): 1920 x 1080/59.94p
      • HQ mode (24Mbps): 1920 x 1080/59.94i
      • SP mode (17Mbps): 1920 x 1080/59.94i
      • LP mode (9Mbps): 1440 x 1080/59.94i
      • EP mode (5Mbps): 1440 x 1080/59.94i
    • PAL setting:
      • Progressive mode (Max 28Mbps): 1920 x 1080/50p
      • HQ mode (24Mbps): 1920 x 1080/50i
      • SP mode (17Mbps): 1920 x 1080/50i
      • LP mode (9Mbps): 1440 x 1080/50i
      • EP mode (5Mbps): 1440 x 1080/50i
  • HD (H.264):
    • NTSC setting: XHQ mode: 1920 x 1080/59.94p,59.94i, 29.97p, 23.98p (50Mbps)
    • UHQ mode: 1920 x1080/59.94i, 29.97p, 23.98p (35Mbps)
    • PAL setting: UHQ mode:1920 x 1080/50p, 50i, 25p (50Mbps), 1920 x 1080/50i, 25p (35Mbps)
  • SD (H.264):
    • NTSC setting: 720 x 480/59.94i (GY-HM850U/HM890U only)
    • PAL setting: 720 x 576/50i (GY-HM850E/HM890E only)
  • Web (H.264):
    • NTSC setting: HQ mode (3Mbps): 960 x540/29.97p, 23.98p
    • LP mode (1.2Mbps): 480 x 270/29.97p,23.98p
    • PAL setting: HQ mode (3Mbps): 960 x 540/25p
    • LP mode (1.2Mbps): 480 x270/25p
  • Audio recording: LPCM 2ch/4ch, 48kHz/16-bit (MPEG-2 Long GOP/H.264), AC3 2ch (AVCHD), µ-law 2ch (Web)

Interface

  • Video input: SDI input (BNC x1) (GY-HM890 only)
  • Video output: Composite output (BNC x 1), 3G SDI output (BNC x 1), HDMI output x 1
  • Audio input: XLR 3-pin x 2, (MIC,+48V, LINE)/f3.5mm stereo mini jack x
  • Audio output: RCA x 2
  • Headphone: f3.5mm mini jack x 2
  • Genlock input: BNC x 1
  • Time code input/output: BNC x each 1
  • Remote: DIN 6-pin x 1/f2.5mm mini jack x 1
  • USB: HOST x 1 (Network connection)/DEVICE x 1 (Mass storage)
  • DC input: XLR 4-pin x1
  • Provided Accessories: Microphone x 1
