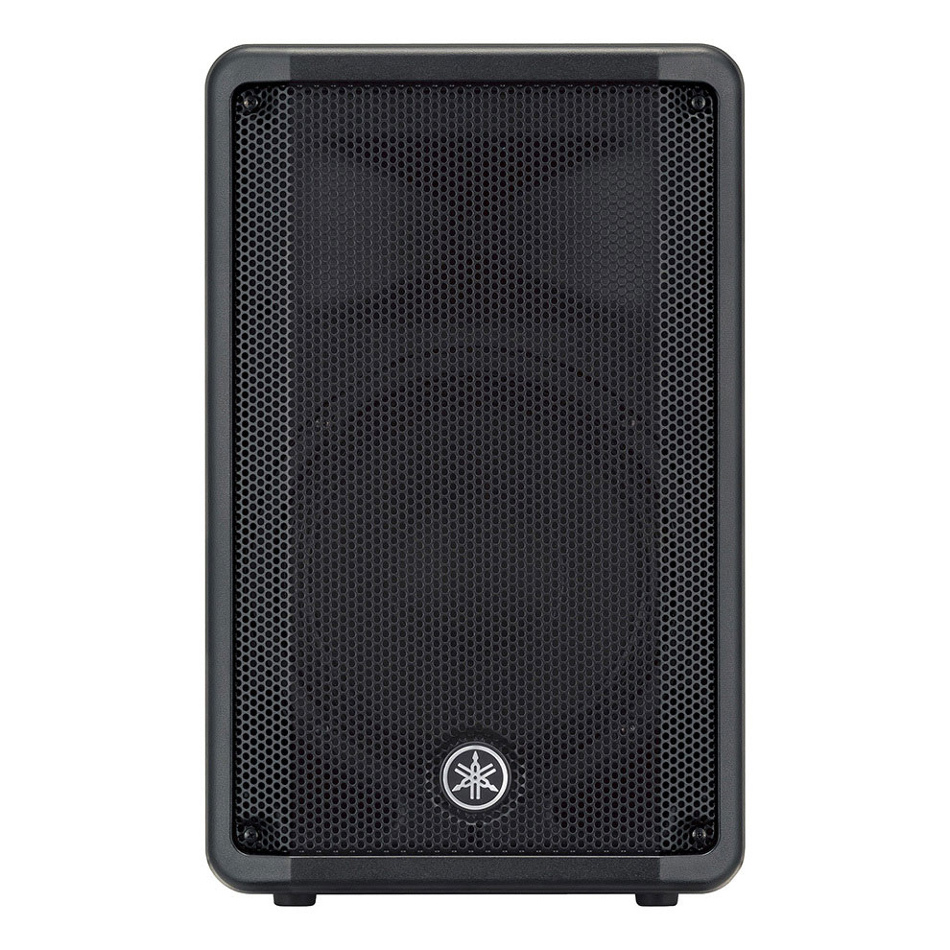

Yamaha DBR10
10" 700 Watt Peak 2-Way Portable Powered Loudspeaker

OUR PART #  DBR10

Our Price: $399.99
List Price: $529.00
You save 24%! (Low Price Guarantee)
In Stock

Recommended Accessories

The Yamaha DBR10 10" 2-way powered loudspeaker is the most compact model in the DBR series. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10?, 12? and 15? models, each DBR loudspeaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you’re powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

A Rugged, Highly Portable Cabinet
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

Smart Enclosure Design for Floor Monitoring
DBR Series speakers feature an optimized 50° wedge angle for floor monitoring. In addition the DBR12 and DBR15’s symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

Easy-to-use Onboard 2-Channel Mixer
DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

Rigging Points for Installation Applications
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts. (Speaker brackets and eye-bolts are sold separately)

Yamaha DBR10 Specifications:

  • Speaker Type: 2-way, Bi-amp powered speaker, Bass-reflex type
  • Frequency Range (-10dB): 55 Hz – 20 kHz
  • Nominal Coverage (HxV): 90° x 60°
  • Components:
    • LF: Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
    • HF: Diaphragm: 1", Type: 1" throat compression driver, Magnet: Ferrite
  • Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
  • Output Power:
    • Dynamic: 700 W (LF: 500 W, HF: 200 W)
    • Continuous: 325 W (LF: 260 W, HF: 65 W)
  • Maximum Output Level (1m; on axis): 129dB SPL
  • I/O Connectors:
    • INPUT1: Combo x1
    • INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced)
    • OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
  • Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
  • Heat Dissipation: Fan cooling, 4 speeds
  • Power Requirements: 100 V, 100-120V, 220-240 V,110/127/220V (Brazil), 50/60Hz
  • Power Consumption: 60W(1/8 Power Consumption),18W(Idle)
  • Cabinet Material: Plastic
  • Finish: Black
  • Handle: Top x 1
  • Flying and Mounting Hardware: Bottom x 2 (Fitfor M8 x 15 mm eyebolts)
  • Pole socket: 35mm (Bottom x 1)
  • Dimensions (WxHxD): 12.1" x 19.4" x 11.4" (308mmx 493mm x 289mm)
  • Net weight: 23.2 lbs (10.5 kg)
