Williams Sound WIR SYS 75P PRO
Infrared Jury Deliberation Room System Kit

OUR PART #  WIR-SYS-75P-PRO

Our Price: $1,404.00
List Price: $1,560.00
You save 10%! (Low Price Guarantee)
In Stock

Recommended Accessories

The Williams Sound WIR SYS 75P PRO is a portable 2-channel IR system for jury deliberation rooms that meets ADA compliance.

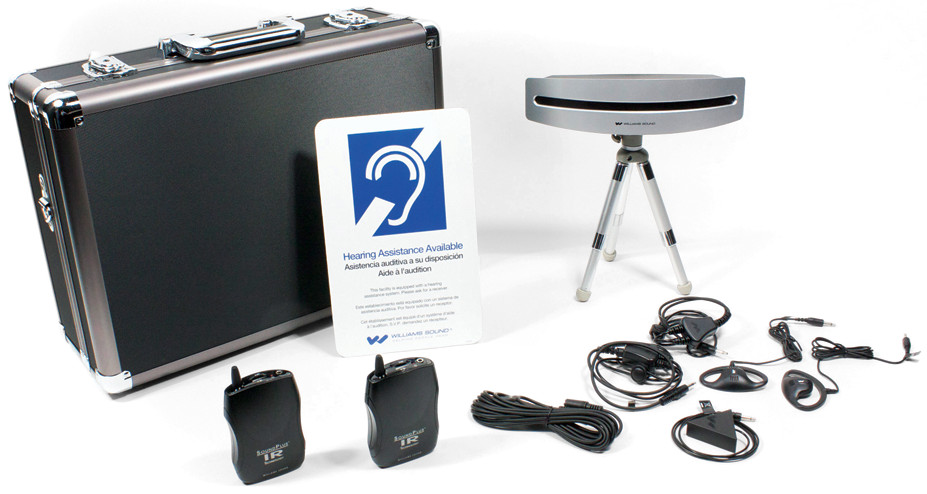

Includes:

  • 1x WIR TX-75Two-Channel infrared transmitter with Phoenix connectors
  • 2x WIR RX22-4 Four-channel selectable, infrared receivers
  • 2x EAR 022 Surround earphones
  • 2x NKL 001 Neckloops
  • 2x BAT 001-2  AA Alkaline Batteries
  • 1x MIC 049 Table top conference microphone
  • 1x WCA 007 WC 12 ft cable
  • 1x IDP 008 ADA wall plaque
  • 1x CCS 030 Large carry case
  • 1x STD 007 Table-top tripod

Williams Sound WIR SYS 75P PRO Features:

  • Meets ADA compliance for jury deliberations rooms.
  • Complete system with carry case.
  • Portable, quick, easy set-up.
  • TX75-S slave emitter available for extended coverage.
  • Master unit has troubleshooting lights built in.
  • Separate RCA audio inputs for each channel (2.3/2.8MHz) accept balanced or unbalanced line-level inputs, use together for stereo operation or seperately for mono.
  • Unit senses if ony one channel is in use and doubles the output power on that channel for twice the coverage.
  • Power-Saving: if no audio is present after a few minutes, unit automatically disables power to IR diodes, reducing power consumption by 80 percent.

Williams Sound WIR SYS 75P PRO Specifications:

  • BAT 001-2: 1.2V Alkaline
  • EAR 022:
    • Style: Around-ear speaker
    • Plug: 3.5mm mono
    • Cord: 39"
    • Driver Size: 23 mm
    • Nominal Impedance: 32 ohms
    • Frequency Response: 20 Hz - 20kHz
    • Weight: 15g
    • Max Power Input: 30 mW
    • Sensitivity: 118 dB @ 1kHz
  • IDP 008: 10-3/8" L x 6-1/4" W x 1/8" H
  • MIC 049:
    • Color: Black
    • Weight: 33 g (1.2 oz)
    • Plug: 3.5mm mono
    • Cord: 36"
    • Phantom Powered: No
    • Nominal Impedance: 1500 ohms
    • Operating Voltage: 1.2 - 10VD
    • Frequency Response: 100 Hz - 8 kHz
    • Pick-Up Pattern: Omnidirectional
    • Transducer Type: Electret Condenser
    • Sensitivity: -38dB ± 3d
    • Warranty: 90 days
