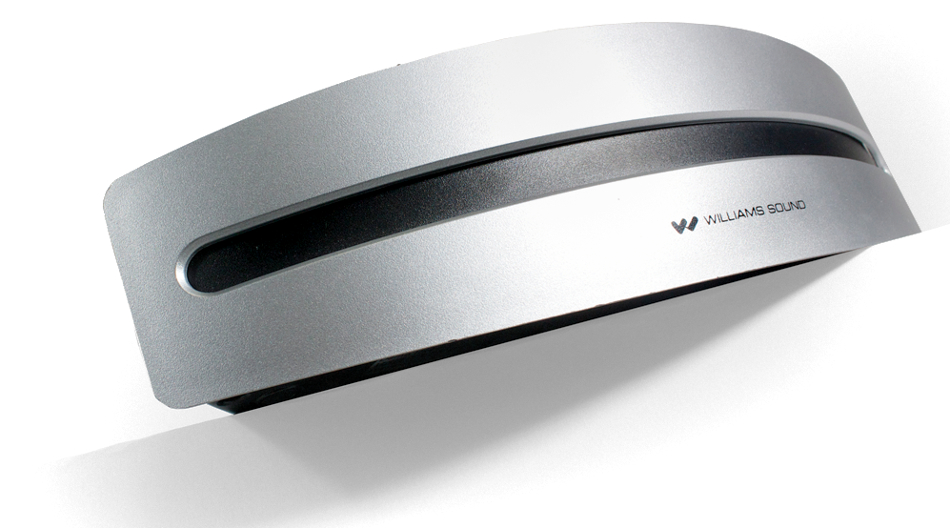

Williams Sound WIR TX75d
Mult-Channel Infrared Emitter for Assisted Listening Systems, 3.3/3.8 MHz


Our Price: $591.00
List Price: $659.00
You save 10%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Williams Sound WIR TX75d infrared transmitter ensures participants in your conference room, courtroom, classroom or other mid-sized venue receive direct, clear communication of your message without sacrificing security. The sleek and stylish TX75 is designed to maximize coverage area up to 5,000 square feet in single-channel mode when using the RX22-4 receiver. Two slaves (WIR TX75-S) can be added for additional coverage up to 5,000 square feet each (15,000 sq. ft. total), when mounted up to 100 feet from the master transmitter. Placing additional slaves in the same room increases coverage and enhances freedom of movement. A single CAT-5 cable carries both power and signal to slaves–truly a one-cable connection. Operates on the 2.3 / 2.8 MHz bandwidth. Mounting bracket and international power supply are included.

Williams Sound WIR TX75d Includes:

  • One (1) WIR TX75d infrared transmitter
  • One (1) BKT 024 wall / ceiling mounting bracket
  • One (1) TFP 046 international power supply with WLC 004 U.S. mains AC plug

Williams Sound WIR TX75d Features:

  • Green power – if no audio is present after a few minutes, unit automatically disables power to IR diodes, reducing power consumption by 80 percent.
  • TX75-S slave emitter available for use with TX75 (sold separately)
  • Headset, stethoset and body-pack receivers available for use with TX75 (sold separately).
  • Robust digital communication bus between master and slave units reduces interference.
  • Master unit has troubleshooting lights built in to simplify installation.
  • Separate RCA audio inputs for each channel (3.3/3.8MHz) accept balanced or unbalanced line level inputs; use together for stereo operation or separately for mono.
  • Unit senses if only one channel is in use and doubles the output power onthat channel for twice the coverage.

Williams Sound WIR TX75c Specifications:

  • Dimensions, Weight:  10.0" W (25.4 cm) x 3.1" D (7.9 cm) x 1.5" H (3.8 cm) w/o faceplate or 2.5" H (6.4 cm) w/faceplate, 0.6lbs (0.3kg)
  • Color:  Black with silver colored silk screen and silver colored faceplate
  • Power Supply:  Desktop style international power supply with IEC line cord, 100-240 VAC input, 50-60Hz, 24W; 48VDC output
  • DC Power Input:  2.5mm ID barrel connector, 48VDC, 0.4A center positive
  • Power Indicator:  Green LED
  • Sleep/Power Save Mode:  Shuts off carrier when no audio is present for 3 minutes
  • Modulation:  FM Wideband, +/- 50 kHz deviation max, 50 uS pre-emphasis
  • Carrier Frequencies:  3.3 MHz (Ch1) and 3.8MHz (Ch2); Default at power on = carriers off. Carriers are automatically enabled upon presence of audio.
  • Emitter IR Power:  0.7 W
  • Master Only Coverage Area (minimum, 1-Ch mode):
    • 5,000 sq. ft in single-channel mode with the RX22-4 receiver (464 sq. m)
    • 3,000 sq. ft in single-channel mode with the RX15-2 receiver (279 sq. m)
    • 2,000 sq. ft in single-channel mode with the RX18 receiver (186 sq. m)
  • NOTE:  For full specifications on this product,refer to the attached Specification Sheet under the Documentation Tab
