American Power Conversion AP9627
2U Rackmount Step Down Transformer with (4) L5-20 Connections

OUR PART #:  AP9627

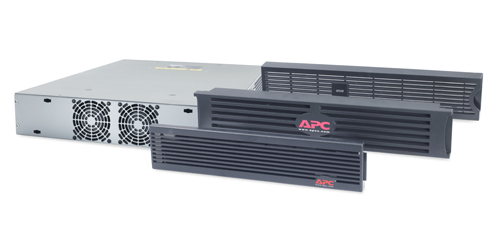

The APC AP9627 is a 2U rackmount step down transformer with a 208V NEMA L6-30P input connection and four 120V NEMA L5-20R output connections.
Learn More
Our Price: $587.08
List Price: $813.00
You save 28%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

American Power Conversion AP9627
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The APC AP9627 is a 2U rackmount step down transformer with a 208V NEMA L6-30P input connection and four 120V NEMA L5-20R output connections. This unit is designed to be placed upstream of a UPS to avoid inrush current and saturation eliminating the need to oversize transformer.

The AP9627 includes rack mounting brackets and a user manual.

APC AP9627 Specifications:

  • Output:
    • Nominal Output Voltage:  120V
    • Maximum Total Current Draw per Phase:  20A
    • Output Connections:  (4) NEMA L5-20R
    • Overload Protection:  Yes
  • Input:
    • Nominal Input Voltage:  208V
    • Input Frequency:  60 Hz +/- 3 Hz
    • Input Connections:  NEMA L6-30P
    • Cord Length:  2 feet (0.61 meters)
    • Number of Power Cords:  1
    • Maximum Input Current per phase:  26A
    • Load Capacity:  5000 VA
  • Physical:
    • Net Weight:  95.00 lbs. (43.18 kg)
    • Maximum Height:  3.50 inches (89 mm)
    • Maximum Width:  17.50 inches (445 mm)
    • Maximum Depth:  24.00 inches (610 mm)
    • Shipping Weight:  110.00 lbs. (50.00 kg)
    • Shipping Height:  10.00 inches (254 mm)
    • Shipping Width:  24.50 inches (622 mm)
    • Shipping Depth:  37.50 inches (953 mm)
    • Color:  Black
  • Environmental:
    • Operating Environment:  32 - 104 °F (0 - 40 °C)
    • Operating Relative Humidity:  0 - 95%
    • Operating Elevation:  0-10000 feet (0-3000 meters)
    • Storage Temperature:  -13 - 149 °F (-25 - 65 °C)
    • Storage Relative Humidity:  0 - 95%
    • Storage Elevation:  0-50000 feet (0-15000 meters)
  • Conformance:
    • Regulatory Approvals:  CSA, UL 1778, UL Listed
    • Standard Warranty:  2 years repair or replace
