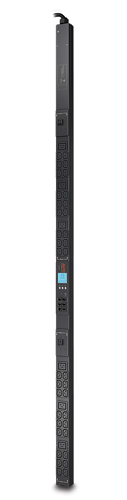

American Power Conversion AP8841
Metered Rack Power Distribution Unit with (36) C13 Outlets and (6) C19 Outlets

OUR PART #:  AP8841

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection.
Learn More
Our Price: $604.80
List Price: $778.00
You save 22%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

American Power Conversion AP8841
Qty:
In Stock

Similar Products

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

The AP8841 includes an installation guid, rack mounting brackets, safety guide and serial configuration cable.

APC AP8841 Features:

  • Remote Management Capabilities:  Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
  • Local Current Monitoring Display:  The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
  • Alarm Thresholds:  Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
  • Load indicator LED:  Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
  • Integrates with StruxureWare Data Center Expert:  An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
  • Flash Upgradeable:  Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
  • Rack-Mountable:  Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
  • Single input power source:  Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
  • Wide range of input and output connections:  Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

APC AP8841 Specifications:

  • Output:
    • Nominal Output Voltage:  200V, 208V
    • Maximum Total Current Draw per Phase:  24A
  • Output Connections:
    • (36) IEC 320 C13
    • (6) IEC 320 C19
    • Overload Protection:  Yes
  • Input:
    • Nominal Input Voltage:  200V, 208V, 230V
    • Input Frequency:  50/60 Hz
    • Regulatory Derated Input Current (North America):  24A
    • Input Connections:  NEMA L6-30P
    • Cord Length:  9.84 feet (3 meters)
    • Number of Power Cords:  1
    • Acceptable Input Voltage:  200-240 VAC
    • Maximum Input Current per phase:  30A
  • Physical:
    • Net Weight:  15.04 lbs. (6.84 kg)
    • Maximum Height:  70.50 inches (1791 mm)
    • Maximum Width:  2.20 inches (56 mm)
    • Maximum Depth:  1.72 inches (44 mm)
    • Shipping Weight:  18.64 lbs. (8.47 kg)
    • Shipping Height:  78.75 inches (2000 mm)
    • Shipping Width:  6.38 inches (162 mm)
    • Shipping Depth:  4.20 inches (107 mm)
    • Color:  Black
  • Environmental:
    • Operating Environment:  23 - 113 °F (-5 - 45 °C)
    • Operating Relative Humidity:  5 - 95%
    • Operating Elevation:  0-10000 feet (0-3000 meters)
    • Storage Temperature:  -13 - 149 °F (-25 - 65 °C)
    • Storage Relative Humidity:  5 - 95%
    • Storage Elevation:  0-50000 feet (0-15000 meters)
  • Conformance:
    • Regulatory Approvals:  CSA C22.2 No. 60950, IEC 60950, METI Denan, UL 60950-1, VDE
    • Standard Warranty:  2 years repair or replace
  • Sustainable Offer Status:
    • RoHS:  Compliant
    • REACH:  Contains No SVHCs
    • Battery Directive:  Compliant
    • Battery Notes:  Contains Lithium Coin Cell
