TV One 1T-CT-654A
HDMI 4K UHD HDBaseT 5-Play Receiver with External Power Option

OUR PART #:  1T-CT-654A

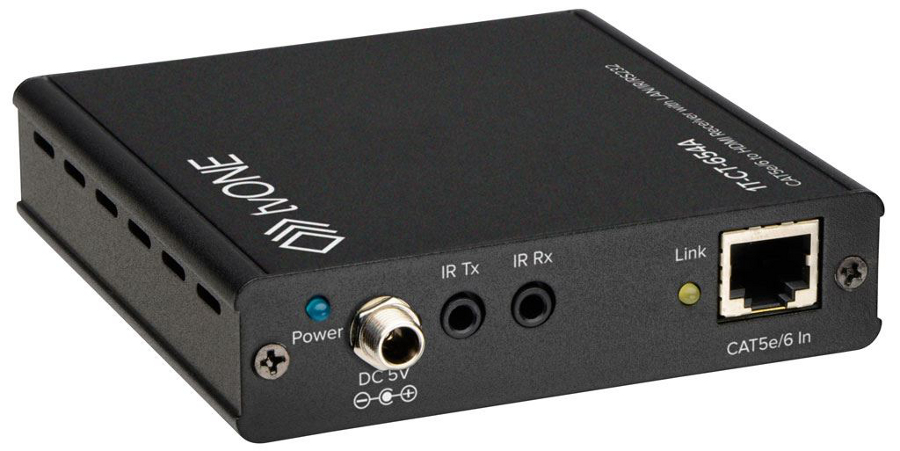

The 1T-CT-654A from tvONE is the receiver unit of the 1T-CT-653/1T-CT-654A HDMI over Single Cat.5e/Cat.6 system.
Learn More
Our Price: $325.00
Write the first review.
TV One 1T-CT-654A
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The 1T-CT-654A from tvONE is the receiver unit of the 1T-CT-653/1T-CT-654A HDMI over Single Cat.5e/Cat.6 system. Now you can extend HDMI 1.4 up to 100 meters over single Cat.5e/6 with a 1T-CT-653 Transmitter coupled with a 1T-CT-654A Receiver. External power is available on the Receiver.

This system consists of a 1T-CT-653 Transmitter coupled with a 1T-CT-654A Receiver (each purchased separately) which employs HDMI v1.4 capability and HDBaseT 5Play™ technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable. HDMI v1.4 signals - including 3D and 4k UHD formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters.

In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio capability is standard. Control signals can be passed via Ethernet, Infrared or RS-232. The 1T-CT-653/1T-CT-654A system can achieve signal distribution distances of up to 100 meters (325 feet) for uncompressed 1080p signals without signal degradation. Power over HDBaseT (PoH) support allows the Receiver to be powered by a PoH Transmitter (1T-CT-653, MX-8488) if a local power connection is not available.

NOTE: See Attached for Product Specifications

tvONE 1T-CT-654A Features:

  • HDMI 1.4a, HDCP 1.1 & DVI 1.0
  • Uncompressed HDMI signal distribution to100m/325ft
  • Uses HDBaseT performance enhancingtechnology
  • Supports Embedded HDMI Lossless DigitalAudio
  • Full HD resolution support (1080p @ 60Hz/36bit) &3D
  • UHD support (4k @ 30Hz)
  • PC resolutions up to WUXGA
  • Supports HDCP Repeater and CECbypass
  • Uses a single Cat.5e/Cat.6 Ethernetcable
  • Bi-directional infrared remotesupport
  • Bi-directional RS-232 and Ethernetsupport
  • Power over HDBaseT (PoH) or local powerinput
  • Compatible with CORIOmax HDBaseT Output Modules
