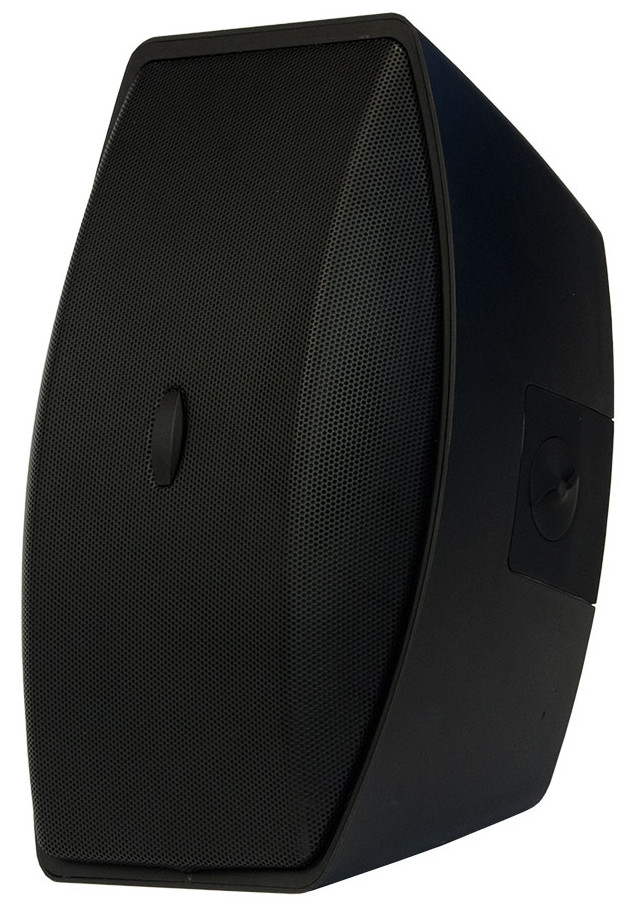

SoundTube SM890i
8" 150 Watt High-SPL Surface Mount Speaker in Black

OUR PART #  SM890I-BK

Call for price! Not available online.


The Soundtube SM890i is a premium high-SPL, high-efficiency surface-mount loudspeaker for distributed or 8 ohm systems. The SM890i incorporates a dedicated 8-inch treated fiber woofer and a high-power compression horn transducer with a BroadBeamHP® waveguide to deliver a consistent dispersion pattern and superb intelligibility for the foreground music, sound reinforcement and PA markets.

The SM890i uses a 150-watt low-insertion loss transformer and a six-position tap switch with a transformer bypass position. Mounting hardware includes SoundTube’s proprietary tool-free, low profile Stealth™ bracket with an integrated internal wedge cam, which allows for stable and precise aiming from 0 to 90 degrees. Corrosion-resistant materials, including powder-coated steel grille plus all-aluminum mounting hardware make the SM890i ideal for indoor/outdoor use.

Soundtube SM890i Specifications:

  • System Type:  8-inch offset, surface mount, ported, high power (150-watt transformer for 25/70.7/100-volt or transformer bypass)
  • Impedance (nominal):  8 ohms
  • Sensitivity dB @ 2.83 V/1 m:  93.0 dB
  • Sensitivity dB @ 1 W/1 m:  93.0 dB
  • Frequency Response (-3 dB):  100 Hz - 22 kHz
  • Frequency Response (-10 dB):  63 Hz - 22 kHz
  • Max. Program Power:  300 W
  • Max. Continuous Power RMS:  150 W
  • Max. Power SPL @ 1 m:  115.0 dB
  • Coverage Angle (-6 dB @ 2 kHz):  110 Degree Vertical; 80 Degree Horizontal
  • Coverage Angle (-6 dB @ 10 kHz): 110 Degree Vertical; 80 Degree Horizontal
  • Coverage Angle (averaged 2-10 kHz): 110 DegreeVertical; 80 Degree Horizontal
  • Angle of Pointability:  0 to 90 DegreesHorizontal
  • Directivity Factor (Q):  5.0 dB (averaged100 Hz - 10 kHz); 8.0 dB (2 kHz)
  • Directivity Index (DI):  5.0 dB (averaged 100 Hz- 10 kHz); 8.0 dB (2 kHz)
  • Tap Selector:  Six-position rotary switch withtransformer bypass
  • Transducer - Low Frequency Driver:  8" (203 mm) treated paper cone with treated cloth surround
  • Transducer - High Frequency Driver:  1.42" (36mm) titanium compression driver with waveguide
  • Low-Frequency Voice Coil:  1.34" (34 mm)
  • Crossover Frequency:  2.5 kHz
  • Network Type - Low Pass:  12 dB per octave, 2nd order
  • Network Type - High Pass:  12 dB per octave, 2nd order
  • Enclosure Material:  Injection-molded ABS, glassfiber reinforced
  • Grille:  Powder-coated steel
  • Inputs:  Four-pin, 5.08 mm Euroblock for individual or daisy chain connection
  • Color:  White
  • Height:  18.78" (477.0 mm)
  • Width:  11.65" (295.9 mm)
  • Depth (Including Bracket):  15.37" (390.4 mm)
  • Weight:  21.0 lbs. (9.5 kg)
  • Included Accessories:
    • Surface Mount Brack
    • Safety Cable
    • Euroblock Connector
    • Terminal Weather Boot
    • Paint Mask
  • Regulatory - CE:  Approved
  • Regulatory - UL:  UL1480 (UEAY)|Listed
  • RoHS:  Approved

SoundTube SM890i
8" 150 Watt High-SPL Surface Mount Speaker in Black

OUR PART #  SM890I-BK

Product Information:

The Soundtube SM890i is a premium high-SPL, high-efficiency surface-mount loudspeaker for distributed or 8 ohm systems. The SM890i incorporates a dedicated 8-inch treated fiber woofer and a high-power compression horn transducer with a BroadBeamHP® waveguide to deliver a consistent dispersion pattern and superb intelligibility for the foreground music, sound reinforcement and PA markets.

The SM890i uses a 150-watt low-insertion loss transformer and a six-position tap switch with a transformer bypass position. Mounting hardware includes SoundTube’s proprietary tool-free, low profile Stealth™ bracket with an integrated internal wedge cam, which allows for stable and precise aiming from 0 to 90 degrees. Corrosion-resistant materials, including powder-coated steel grille plus all-aluminum mounting hardware make the SM890i ideal for indoor/outdoor use.

Soundtube SM890i Specifications:

  • System Type:  8-inch offset, surface mount, ported, high power (150-watt transformer for 25/70.7/100-volt or transformer bypass)
  • Impedance (nominal):  8 ohms
  • Sensitivity dB @ 2.83 V/1 m:  93.0 dB
  • Sensitivity dB @ 1 W/1 m:  93.0 dB
  • Frequency Response (-3 dB):  100 Hz - 22 kHz
  • Frequency Response (-10 dB):  63 Hz - 22 kHz
  • Max. Program Power:  300 W
  • Max. Continuous Power RMS:  150 W
  • Max. Power SPL @ 1 m:  115.0 dB
  • Coverage Angle (-6 dB @ 2 kHz):  110 Degree Vertical; 80 Degree Horizontal
  • Coverage Angle (-6 dB @ 10 kHz): 110 Degree Vertical; 80 Degree Horizontal
  • Coverage Angle (averaged 2-10 kHz): 110 DegreeVertical; 80 Degree Horizontal
  • Angle of Pointability:  0 to 90 DegreesHorizontal
  • Directivity Factor (Q):  5.0 dB (averaged100 Hz - 10 kHz); 8.0 dB (2 kHz)
  • Directivity Index (DI):  5.0 dB (averaged 100 Hz- 10 kHz); 8.0 dB (2 kHz)
  • Tap Selector:  Six-position rotary switch withtransformer bypass
  • Transducer - Low Frequency Driver:  8" (203 mm) treated paper cone with treated cloth surround
  • Transducer - High Frequency Driver:  1.42" (36mm) titanium compression driver with waveguide
  • Low-Frequency Voice Coil:  1.34" (34 mm)
  • Crossover Frequency:  2.5 kHz
  • Network Type - Low Pass:  12 dB per octave, 2nd order
  • Network Type - High Pass:  12 dB per octave, 2nd order
  • Enclosure Material:  Injection-molded ABS, glassfiber reinforced
  • Grille:  Powder-coated steel
  • Inputs:  Four-pin, 5.08 mm Euroblock for individual or daisy chain connection
  • Color:  White
  • Height:  18.78" (477.0 mm)
  • Width:  11.65" (295.9 mm)
  • Depth (Including Bracket):  15.37" (390.4 mm)
  • Weight:  21.0 lbs. (9.5 kg)
  • Included Accessories:
    • Surface Mount Brack
    • Safety Cable
    • Euroblock Connector
    • Terminal Weather Boot
    • Paint Mask
  • Regulatory - CE:  Approved
  • Regulatory - UL:  UL1480 (UEAY)|Listed
  • RoHS:  Approved
