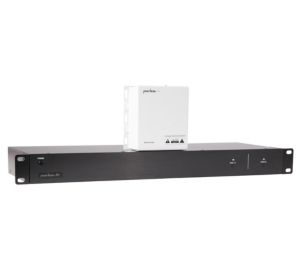

Peerless ADS100-B
PeerSound 8-Channel Wireless Audio System


On its own private network, the Peerless AV ADS100-B PeerSound Wireless Audio System can send up to 8 channels of audio wirelessly to amplifiers up to 140 ft away.
Learn More
Our Price: $536.82
List Price: $699.99
You save 23%!
Write the first review.
Peerless ADS100-B
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

On its own private network, the Peerless AV ADS100-B PeerSound Wireless Audio System can send up to 8 channels of audio wirelessly to amplifiers up to 140 ft away. With a rackmountable transmitter, the transmitting antenna can be remote mounted using the supplied 10 ft cable. The amplifier can be installed in a drywall cavity hidden by a paintable cover plate, or it can be mounted outside the wall with an optional ADS100-OWK accessory kit. The 25x2 watt amplifier is plenty capable of driving floor standing, book shelf and in-wall speakers. It is also UL2043 Plenum rated for commercial installation options. This Wireless Audio System works with virtually any preamp audio source and speaker.

Peerless AV ADS100-B Includes:

  • Transmitter Head End
  • Transmitter Module for Channels 1 - 4
  • Transmitter Power Adapter
  • Rack Ears
  • One (1) 2-Channel Amplifier
  • Stereo Receiver Module
  • In-Wall Mounting Accessories
  • Instructions

Peerless AV ADS100-B Features:

  • Transmission distance of 140 feet
  • Eight channels of configurable audio
  • Rack mountable transmitter
  • Allows transmitting antenna to be remote mounted with 10ft supplied cable
  • Creates it’s own independent 2.4 GHz WiFi network with adaptive frequency hopping and error correction
  • 2-Channel 25 Watt amplifier
  • Hidden amplifier installation though drywall cavity and a paintable cover plate
  • Amplifier mounts onto wall with accessory kit (sold separately)
  • UL2043 Plenum rated amplifier (can be mounted in plenum area)
  • 48 KHz 16 bit Pro Audio quality sound reproduction
  • Connects to any audio source with either line and speaker level inputs
  • Connects to any 8 ohm speaker
  • FCC, UL 60065, LVD, and UL2043 approved

Peerless AV ADS100-B Specifications:

  • T8 Transmitter and TX5 Receiver Module:
    • Size (WxHxD) 17.32" x 1.84" x 6.90" (440 x 47 x 175mm)
    • Rack Height:  1U
    • Power Input:  120/240 VAC 50/60Hz to supplied AC adaptor (5VDC @ 1000 mW)
    • Line Level Inputs:  Qty 8 independent RCA
    • Speaker Level Inputs:  Qty 8 independent, 150 watts max each, 2 pole plug
    • Mounting:  Rack or surface
    • Frequency Band:  2.4 GHz, spread spectrum
    • Wireless Distance: 140 ft (Actual distance will be reduced with obstructions between transmitter and reciever modules)
    • Streaming:  16 Bit, 48 kHz rate with error checking
    • Adaptive Frequency Hopping:  Yes, 18 channels with 4 active, 14 on trial
    • Latency:  42.7 mS
    • Antenna Cable:  RG316D Coax, double shield with reverse thread fittings, 10 ft.
    • Agency Approvals:  UL60065, CE, LVD, FCC
  • A252 Amplifier and RX5 Receiver Module:
    • Size (WxHxD):  4.13" x 4.00" x 1.49" (105mm x 102mm x 38mm)
    • Power Input:  120/240 VAC 50/60Hz direct, 150 Watts maximum (with protective ground required)
    • Power Connection:  2 wire spring hold push in, screw terminal ground, wired or conduit per Electric Code
    • Speaker Connection:  Qty 2 - 2 pole screw clamp plug
    • Impedance:  8 Ohms
    • Power Output:  25 Watts x 2 @ < 0.1% THD+N (1 W, 1 kHz)
    • Signal to Noise:  110 dB (A)
    • Protection:  Over termperature, overlaod, short circuit with power cycle reset
    • Mounting:  In-wall, On-wall, UL 2043 Plenum area's (with proper UL 2043 accessories)
    • Agency Approvals:  UL60065, UL2043, CE, LVD, FCC
