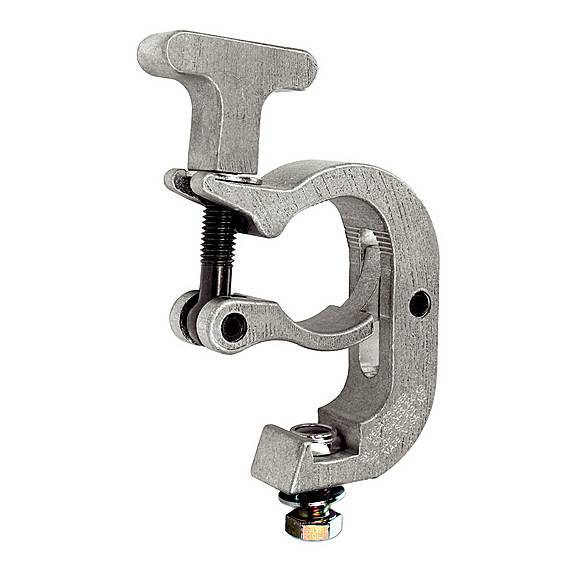

The Light Source TCM
Mounting Clamp with T-Handle in Silver Finish

OUR PART #  TCM

Our Price: $27.75
List Price: $35.00
You save 21%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Light Source TCM will fasten from 2" OD to 1.5" OD tube. The TCM has a 2.5" T-handle so no tools are required to fasten to the pipe. 1.25" x 0.5"-I3 TPI Grade 8 fastener, Nylock Nut and 1" diameter Belleville Spring washer are provided for connecting your load.

The Light Source TCM Specifications:

  • Minimum Size: 1.5" OD tube, 1.25" pipe, 1.66" ODpipe
  • Maxiumum Size: 2" OD truss tube, 1.5" pipe,1.90" OD
  • Safe Vertical Working Load: 450 lbs
  • Hardware:
    • 1.25" x 0.5" - I3 TPI Grade 8 Fastener with Nylock Nut
    • 1" Belleville Spring Washer
  • Dimensions (HxWxD): 4-5/8" x 4" x1-3/16"
  • Weight: 1.25 lbs

The Light Source TCM
Mounting Clamp with T-Handle in Silver Finish

OUR PART #  TCM

Product Information:

The Light Source TCM will fasten from 2" OD to 1.5" OD tube. The TCM has a 2.5" T-handle so no tools are required to fasten to the pipe. 1.25" x 0.5"-I3 TPI Grade 8 fastener, Nylock Nut and 1" diameter Belleville Spring washer are provided for connecting your load.

The Light Source TCM Specifications:

  • Minimum Size: 1.5" OD tube, 1.25" pipe, 1.66" ODpipe
  • Maxiumum Size: 2" OD truss tube, 1.5" pipe,1.90" OD
  • Safe Vertical Working Load: 450 lbs
  • Hardware:
    • 1.25" x 0.5" - I3 TPI Grade 8 Fastener with Nylock Nut
    • 1" Belleville Spring Washer
  • Dimensions (HxWxD): 4-5/8" x 4" x1-3/16"
  • Weight: 1.25 lbs
